Monitor Hikvision DS-D5024F2-BV2S 23,8 palcov Full HD LED 1920 x 1080

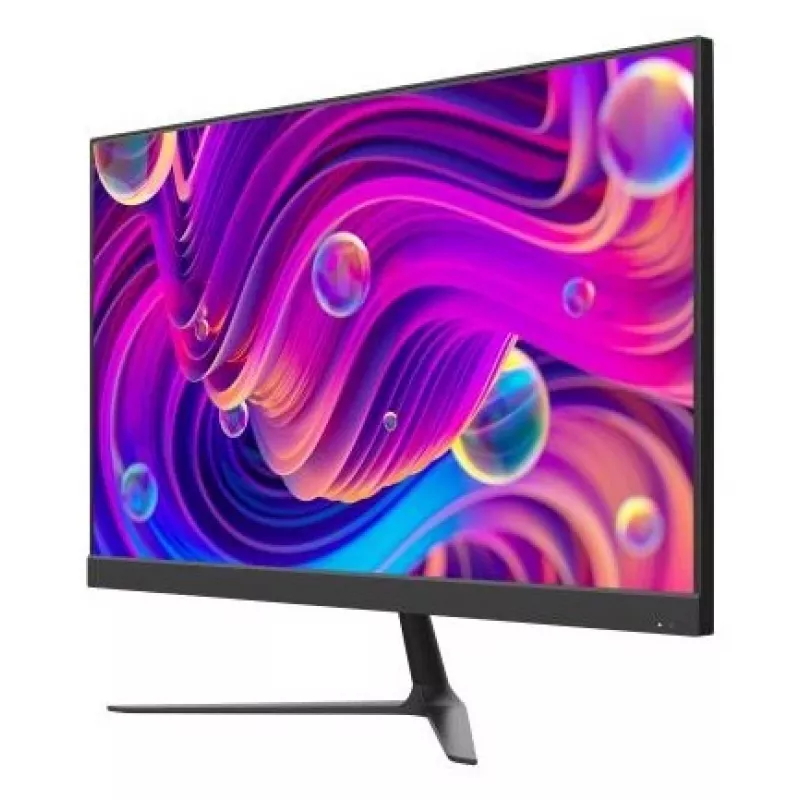

The Hikvision DS-D5024F2-BV2S is a 23.8" Full HD LED monitor (1920 x 1080) designed for continuous operation in security and control center environments. It uses a VA panel with 178° viewing angles, a 100 Hz refresh rate and a 7 ms response time, and includes built-in speakers and VESA mounting support for flexible installation.

Advantages

This monitor provides sharp Full HD image clarity on a 23.8" VA panel with a high contrast ratio (4000:1) and 250 cd/m² typical brightness. The 100 Hz refresh rate and 3D noise reduction improve motion rendering for surveillance and monitoring tasks. A low blue light design reduces eye strain during prolonged use, while the ultra-thin bezel and slim body simplify multi-monitor setups. Dual inputs (HDMI and VGA) and built-in speakers add connectivity and basic audio support.

Suitable for

• Security monitoring and control rooms
• Workstations requiring reliable 24/7 displays
• Multi-monitor video walls and surveillance stations
• General office use where VESA mounting is needed

Key specifications

• Display diagonal: 23.8" (60.5 cm)
• Resolution: Full HD 1920 x 1080, 16:9
• Panel type: VA; Display technology: LED
• Refresh rate: 100 Hz; Response time: 7 ms
• Viewing angles: 178°; Contrast ratio (typical): 4000:1
• Brightness (typical): 250 cd/m²; Pixel pitch: 0.275 x 0.275 mm
• Inputs: HDMI and VGA; Built-in speakers: Yes
• VESA mounting: Yes; Product colour: Black
• Energy class (SDR): E; Energy consumption per 1000 h: 16 kWh

How to use

Mount the monitor using the VESA bracket or place it on a stable surface. Connect video sources via HDMI or VGA and attach audio sources if required—the built-in speakers will play incoming audio. Adjust display settings (brightness, color, low blue light) from the monitor on-screen menu to suit the viewing environment. For multi-monitor setups, align bezels and configure the output settings on your video source.

Recommendations

For continuous 24/7 operation in security or control rooms, keep ventilation around the monitor unobstructed, avoid direct sunlight on the panel, and use the low blue light mode during extended shifts to reduce eye fatigue. Regularly check cable connections and clean the screen with a soft, dry cloth.
