Mono 6,3 mm pravouhlý konektor ShiverPeaks 50610-WM kovový, 6,35 mm mono jack konektor, pravouhlý

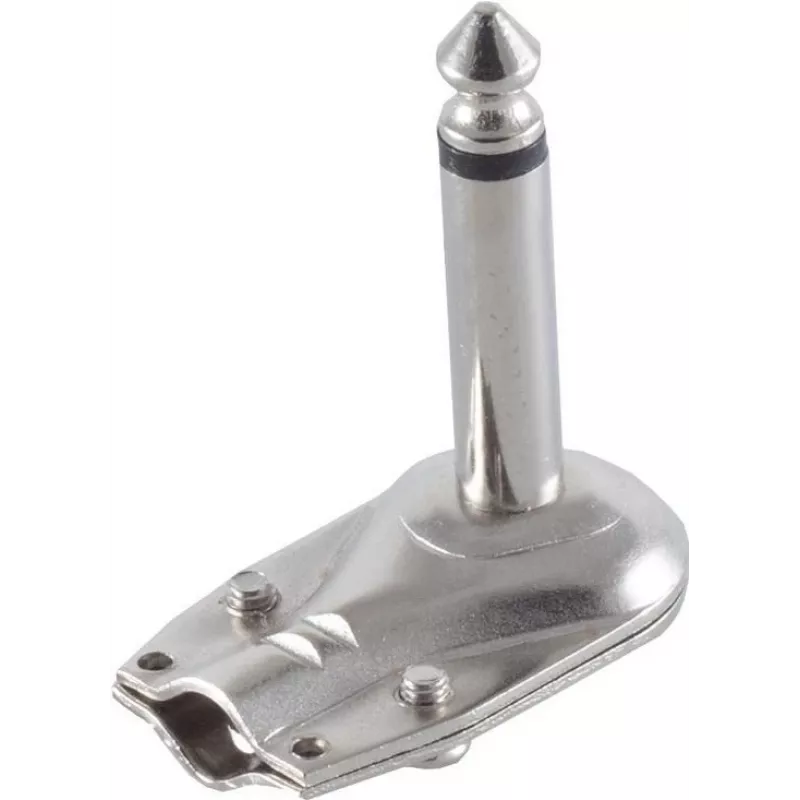

The ShiverPeaks Mono 6.3mm Right Angle Connector 50610-WM Metal is a compact metal-bodied 6.35 mm mono plug designed for instrument and signal connections. Its right-angle housing reduces cable strain and saves space on crowded pedalboards, amplifiers and other audio equipment. The connector suits both solder-mounted and chassis-mounted installations and is intended for professional audio patching and repair work where a durable, low-profile plug is required.

Advantages

The metal construction provides mechanical durability and reliable shielding for improved signal integrity. The right-angle form factor minimizes stress on cables where space is limited and helps maintain tidy routing on stage and in studio racks. Designed for both solder and chassis mounting, the connector offers flexibility for different installation methods and repair workflows.

Suitable for

• Instrument cables (electric guitars, basses, keyboards)
• Pedalboard connections and effects loop cabling
• Amplifier and DI box inputs and outputs
• Studio patching and signal routing in tight spaces

Key specifications

• Contact type: mono (tip and sleeve) 6.35 mm (6.3 mm)
• Housing material: metal
• Mounting options: solder-mounted and chassis-mounted
• Orientation: right-angle plug
• Application: instrument and line-level signal connections

How to use

Prepare the cable by stripping the outer jacket and separating the tip and sleeve conductors. For solder-mounted installations, insert the conductors into the designated terminals, heat the solder joint until the solder flows and form a secure connection. For chassis-mounted use, assemble the housing around the plug and secure it to the panel according to the connector's mechanical design. After assembly, test continuity and signal transmission with a cable tester or connected equipment to verify correct wiring and reliable contact.

Recommendations

Use heatshrink tubing or strain relief at the cable exit to further reduce mechanical stress. When installing on pedalboards or rack gear, orient the right-angle plug to minimize bending near the connector and maintain a gentle cable bend radius for longer cable life.
