Montážna doska pre príslušenstvo elektrickej skrine EFB Elektronik 46020N.20 — 170×30×40 mm

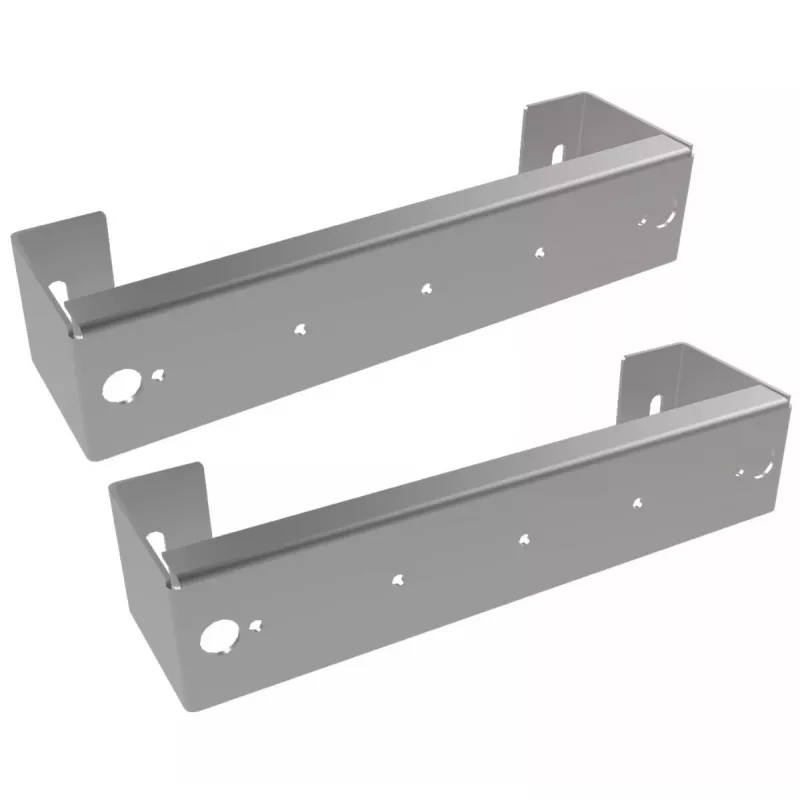

Mounting plate EFB Elektronik 46020N.20 is an accessory for electrical boxes designed to secure LSA mounting brackets and other small components inside distribution enclosures. The plate measures 170×30×40 mm and provides a flat, stable surface for fixing LSA strips (1/20, 20 pairs) and similar terminal blocks. Supplied with cable entry protection and a set of screws for mounting; available pack sizes correspond to the number of pairs the mounted brackets accommodate (VKA2 = 100 pairs, VKA4 = 200 pairs, VKA8 = 400 pairs, VKA12 = 600 pairs).

Advantages

The EFB Elektronik 46020N.20 mounting plate offers a compact and rigid mounting surface that simplifies installation of LSA strips and small devices inside electrical enclosures. It includes cable entry protection and the necessary screws for immediate installation, reducing the need for additional parts. The standardized dimensions ensure compatibility with common distribution boxes and facilitate neat cable and terminal arrangement.

Suitable for

• Mounting LSA strips 1/20 (20 pairs) inside distribution enclosures
• Securing small terminal blocks, connectors or modules in electrical boxes
• Electrical installation and maintenance tasks in telecom and building wiring

Key specifications

• Brand: EFB Elektronik
• Manufacturer part number (MPN): 46020N.20
• EAN: 4049759283551
• Dimensions (W×H×D): 170 × 30 × 40 mm
• Designed for LSA strips 1/20 (20 pairs)
• Includes cable entry protection and mounting screws

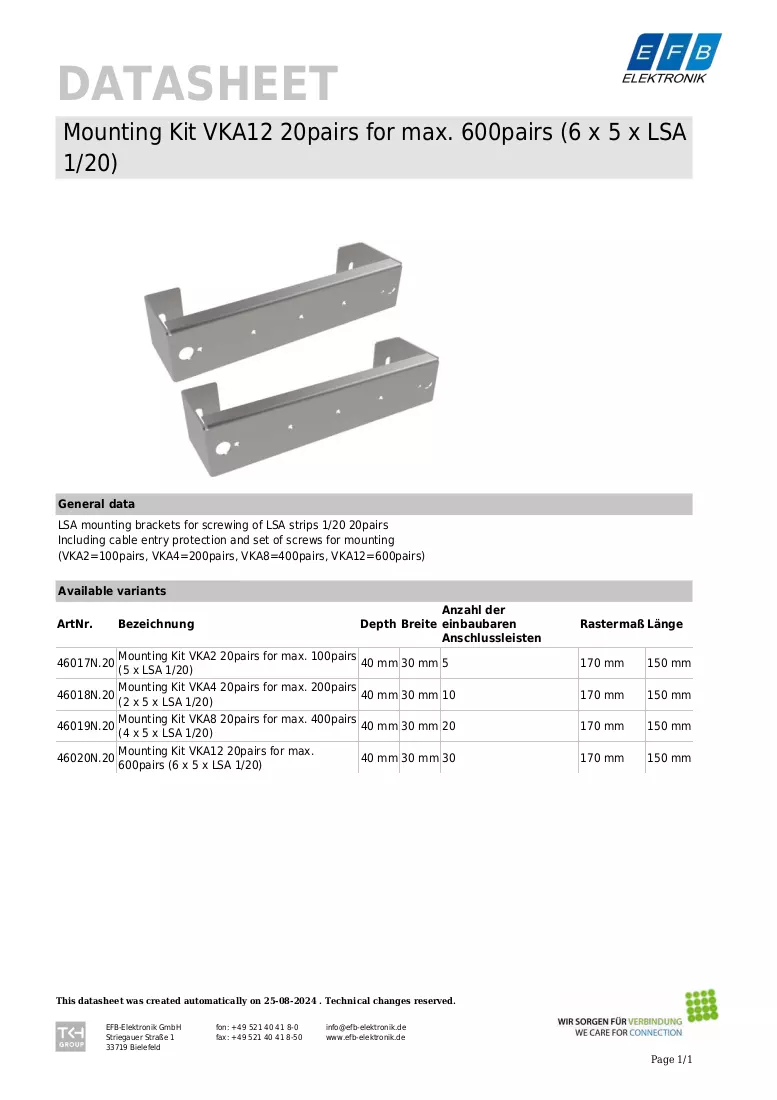

• Pack size options tied to capacity: VKA2 = 100 pairs, VKA4 = 200 pairs, VKA8 = 400 pairs, VKA12 = 600 pairs

How to use

Position the mounting plate inside the electrical box where a stable fixing surface is required. Align and fix the plate using the supplied screws, ensuring the plate sits flush with the enclosure interior. Attach the LSA strip or terminal block to the plate and secure according to the component manufacturer's instructions. Fit the cable entry protection around incoming cables to maintain strain relief and protect the enclosure entry point.

Recommendations

Install and service this mounting plate with power isolated and following relevant electrical safety regulations. Select the pack size and LSA bracket quantity appropriate for the number of pairs and terminals in the installation to ensure sufficient mounting capacity.
