Montážna doska SCHROFF multipacPRO 20860-108, rozmery 412×210 mm

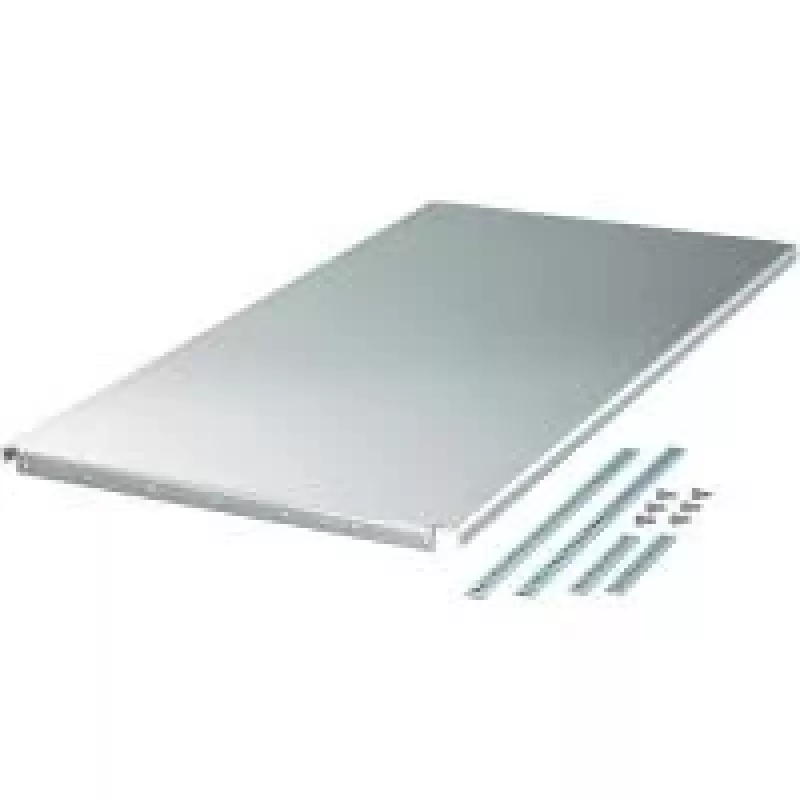

Chassis plate SCHROFF multipacPRO 20860-108, dimensions 412×210 mm is a metal mounting plate engineered for integration into SCHROFF multipacPRO systems and compatible enclosures. The plate delivers a flat, rigid surface for securing electronic modules, PCBs and other components, helping to streamline system builds, retrofits and repairs where precise alignment and firm attachment are required.

Advantages

The chassis plate is manufactured to match SCHROFF multipacPRO mechanical interfaces, ensuring compatibility with corresponding mounting points and enclosure geometry. Its rigid metal construction provides stable support for components and helps maintain mechanical integrity under typical installation stresses. The defined dimensions simplify layout planning and reduce the need for custom fabrication when installing boards, connectors and mechanical fittings.

Suitable for

• Mounting printed circuit boards and electronic modules inside multipacPRO enclosures
• System assembly and integration in industrial or telecom equipment
• Retrofit projects and field repairs where a drop-in plate reduces on-site work
• Prototyping setups that require a standardized, stable mounting surface

Key specifications

• Material: metal mounting plate designed for structural support
• Overall dimensions: 412 × 210 mm
• Flat, rigid surface suitable for screw, standoff or clip fastening
• Compatibility: intended for integration with SCHROFF multipacPRO enclosures and compatible systems
• Finish: factory-prepared surface for mechanical attachment (painted or passivated as per manufacturer standard)

How to use

Install the chassis plate by aligning it with the mounting points inside the target enclosure and secure it using appropriate fasteners such as screws or standoffs that match the enclosure and component mounting patterns. Position PCBs, modules and mechanical parts on the plate and fasten them to the plate using the chosen attachment method. Ensure grounding and earthing requirements are observed where necessary, and verify clearances for connectors, cables and airflow before final assembly.

Recommendations

When assembling systems, select fasteners and standoffs of the correct length and thread type to avoid stress on components. Observe manufacturer guidelines for EMC grounding and mechanical torque limits. For retrofit work, check existing enclosure dimensions and mounting point locations to confirm direct compatibility before modifying the plate.
