Montážna sada Bachmann 317.006 sivá strieborná

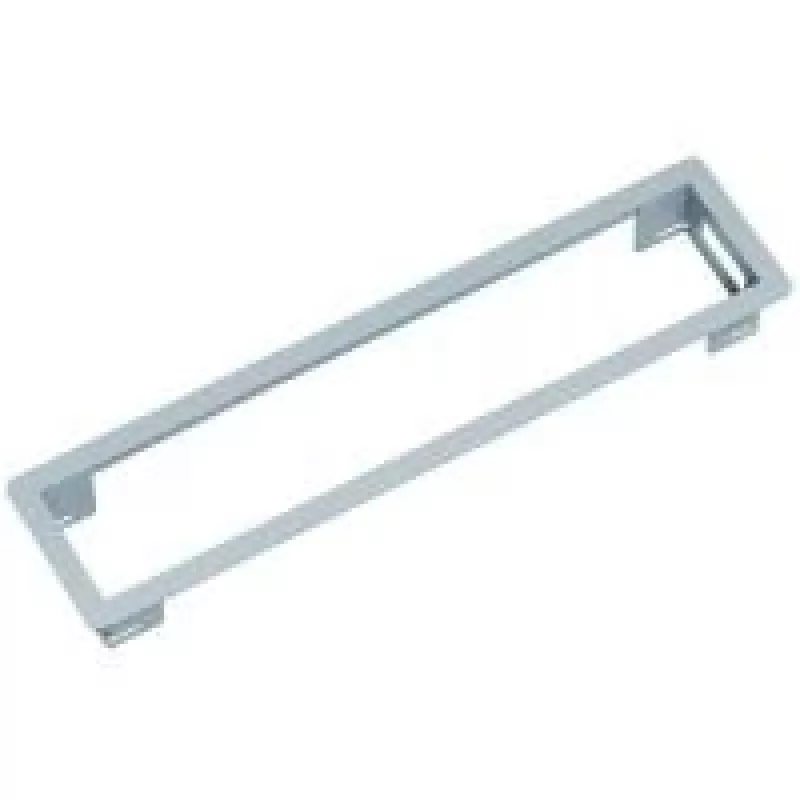

The Bachmann Power Frame built-in frame long in silver-grey (317.006) is a compact mounting solution that enables integrated and easily accessible power and data connections for workstations and tables. It is designed for flush mounting in or on the top of desks and tables and provides a durable, space-saving housing for cabling and connection modules.

Advantages

The frame offers a shallow built-in depth for compact installation and a larger depth when wiring is accommodated. Its metal finish in silver-grey (RAL 9006) matches many office and meeting-room interiors. The outer dimensions allow for a long, narrow installation opening suitable for multiple connection modules, while the construction supports secure attachment to desktop surfaces from 10 mm thickness.

Suitable for

• Office desks and meeting tables
• Workstations requiring integrated power and data access
• Conference rooms and training facilities
• Environments where flush-mounted cable access is preferred

Key specifications

• Built-in depth (without wires): approx. 35.5 mm
• Built-in depth (with wires): approx. 70 mm
• Minimum desk/table top thickness: 10 mm
• Outer dimensions: 283.5 × 73 mm
• Finish: silver-grey (RAL 9006)
• Manufacturer / MPN: Bachmann 317.006

How to use

Cut an opening in the desk or table top matching the outer dimensions and required built-in depth, taking into account whether cables will be routed inside (use the larger depth if wiring is present). Insert the frame into the cutout and secure it according to mounting kit instructions. Install required power and data modules into the frame and route cables through the housing. Ensure the desktop thickness is at least 10 mm for proper fixation.

Recommendations

For reliable installation, verify the required depth for connected cables before cutting the mounting opening and follow Bachmann mounting instructions. Use the 70 mm built-in depth when routing multiple or thicker cables to avoid strain on connections.
