Montážna sada D-Sub 9-pólový konektor samica na RJ11/RJ14 DeLOCK 66770

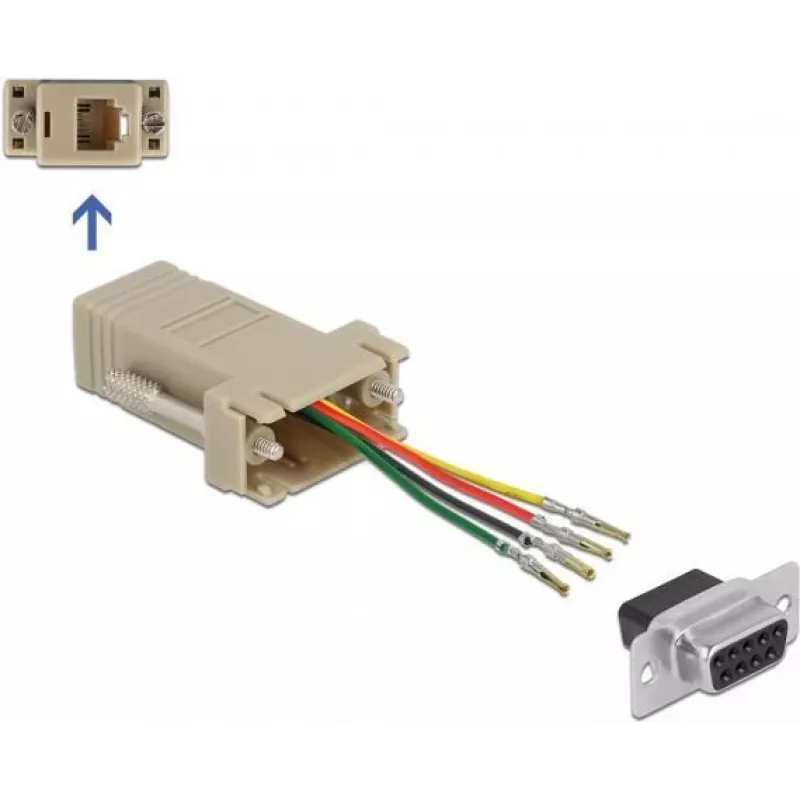

This DeLOCK assembly kit provides a D-Sub 9 pin female connector and an RJ11/RJ14 6P/4C female socket, enabling expansion of a serial D-Sub 9 interface over ISDN, telephone or RJ11/RJ14 cabling. The contacts can be arranged individually in the D-Sub housing to match specific wiring requirements, and the sockets snap into place with a slight click to ensure stable contact. The kit is grey and intended for use where a compact adapter between D-Sub 9 and telephone-style cables is required.

Advantages

The kit allows flexible assignment of D-Sub 9 contacts and supports RJ11 and RJ14 6P/4C telephone connections. Tool-free insertion of contacts into the D-Sub housing provides straightforward assembly, and the snap-in sockets deliver reliable electrical contact once installed. Its neutral grey colour makes it unobtrusive in various installations.

Suitable for

• Connecting serial D-Sub 9 equipment to ISDN or telephone lines via RJ11/RJ14 cables
• Custom wiring solutions where specific pin assignments are required
• Repair or assembly tasks involving D-Sub 9 to RJ11/RJ14 interfacing

Key specifications

• Connector 1: D-Sub 9 pin (female)
• Connector 2: RJ11/RJ14 (6P/4C, female)
• Product colour: Grey
• Brand: DELOCK
• MPN: 66770
• EAN: 4043619667703

How to use

Arrange the contact pins according to the required pinout and insert them into the D-Sub 9 housing. Plug the RJ11/RJ14 cable into the corresponding female socket until it clicks into place, ensuring the contacts engage. Verify the wiring and continuity before connecting powered equipment.

Recommendations

Use suitable cabling (RJ11/RJ14) and confirm the correct pin assignment for your application. Perform continuity checks after assembly and avoid connecting to powered lines during wiring to prevent damage.
