Montážna sada DeLOCK 65986 zelená plast

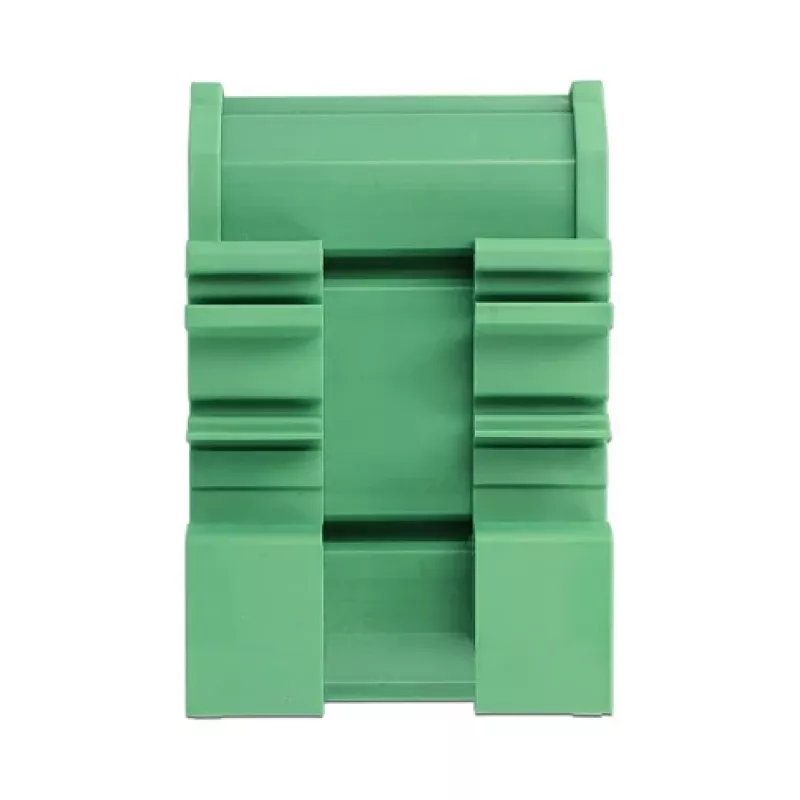

Delock Board Holder for DIN Rail 20 cm long is a green plastic mounting component that holds printed circuit boards with a width of 72 mm and attaches to standard 15 mm or 35 mm DIN rails. The holder is 20 cm in length and can be shortened to fit different installation depths; after trimming, the removable end caps can be reattached to protect the board edges.

Advantages

The Delock board holder is made of durable green plastic that resists typical mechanical stress in control cabinets. It supports boards with a fixed width of 72 mm and fits both 15 mm and 35 mm DIN rails, offering flexible mounting. The holder can be cut to the required length and retains protection through reattachable end caps.

Suitable for

• Mounting printed circuit boards with 72 mm width onto 15 mm or 35 mm DIN rails
• Custom-length PCB installations where a shorter holder is required
• Electrical cabinets, control panels, and industrial enclosures

Key specifications

• Brand: DELOCK
• Model / MPN: 65986
• EAN: 4043619659869
• Material: green plastic
• Holder length: 20 cm (can be shortened)
• Supported PCB width: 72 mm
• Compatible DIN rail sizes: 15 mm and 35 mm

How to use

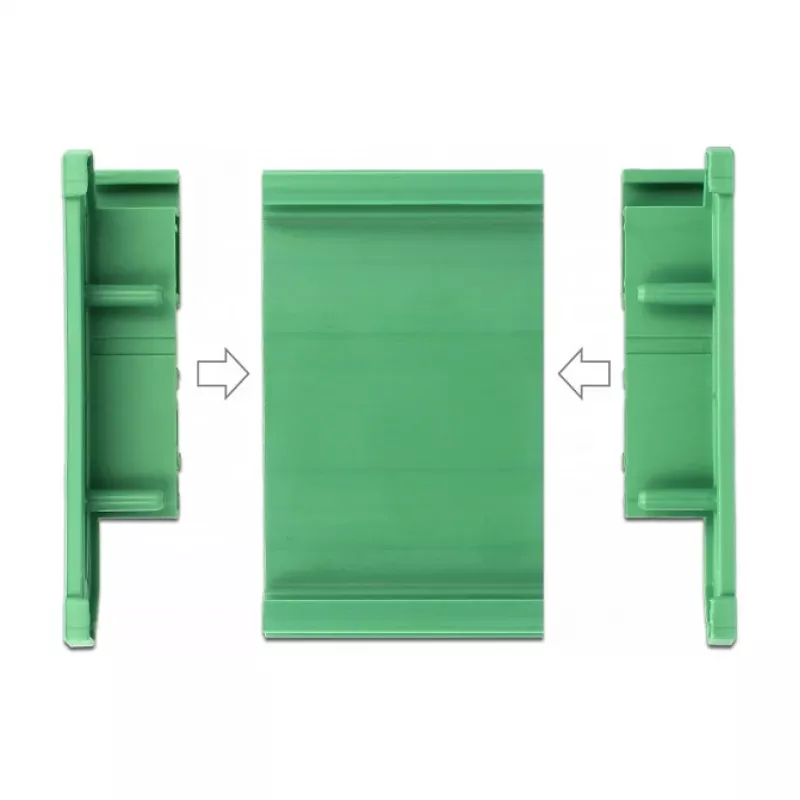

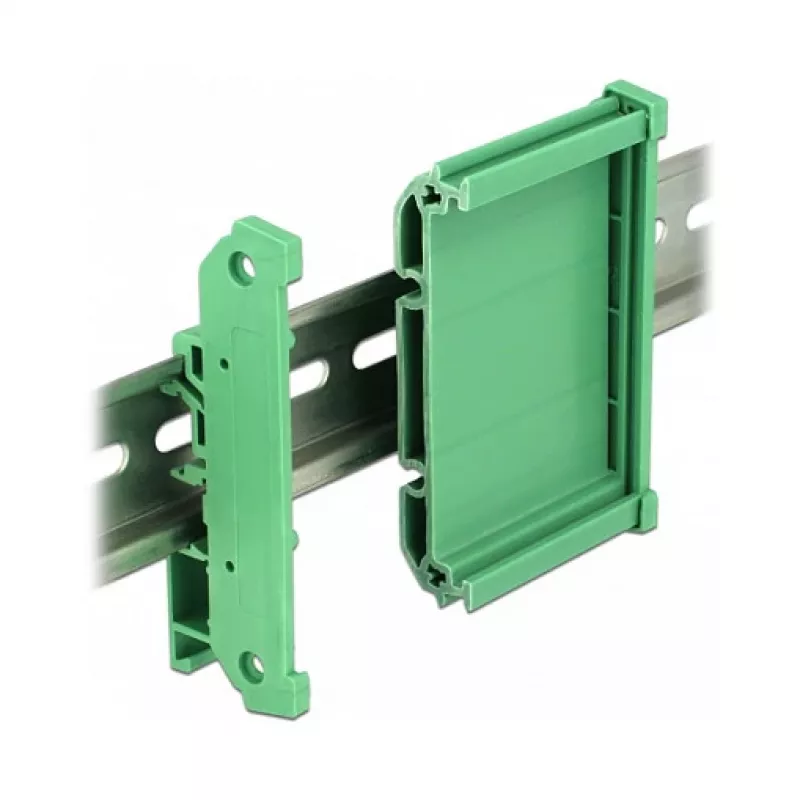

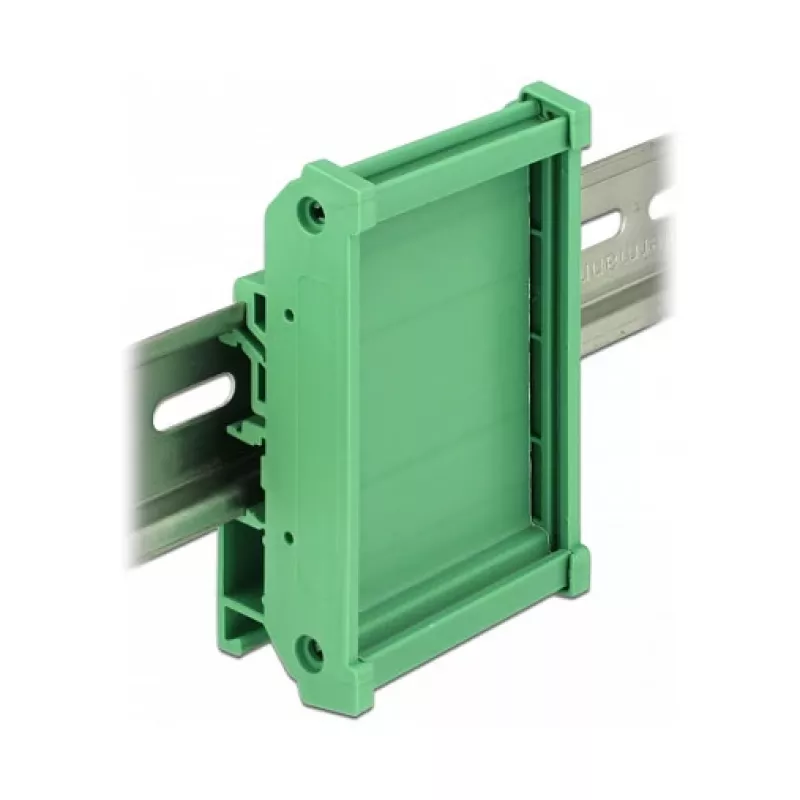

Place the circuit board into the holder so the PCB aligns with the 72 mm slot, then snap the holder onto the chosen 15 mm or 35 mm DIN rail until it locks into place. If a shorter holder is required, mark the desired length, cut the holder carefully with an appropriate tool, and refit the two end caps to cover and protect the exposed ends before installing.

Recommendations

Ensure the PCB width is 72 mm before installation and verify compatibility with your DIN rail size. When shortening the holder, use proper cutting tools and protective equipment; confirm that end caps are securely reattached to avoid sharp edges or unintended movement of the board.
