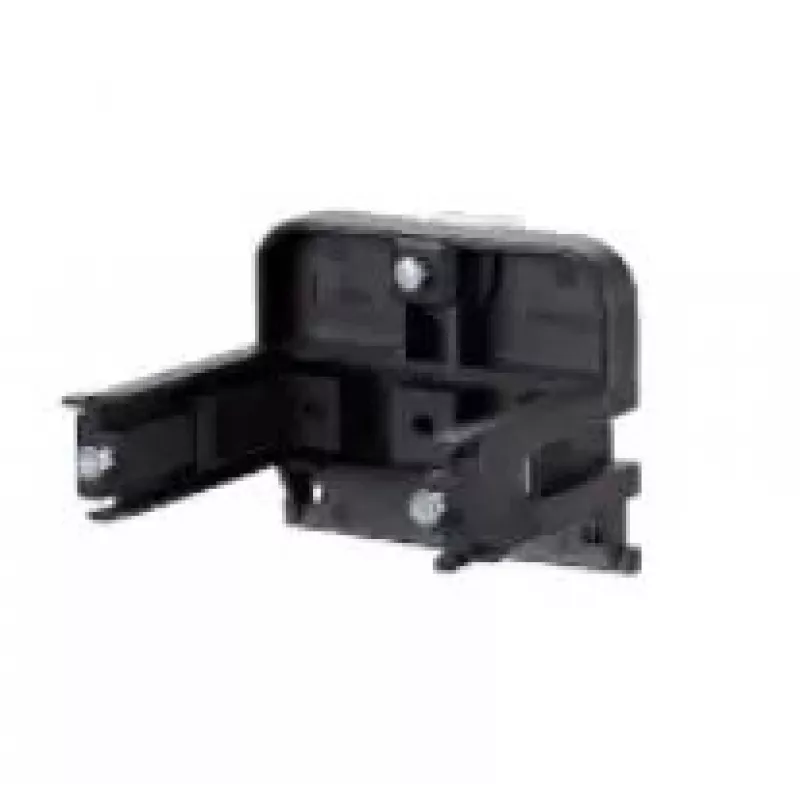

Montážna sada METZ CONNECT 1308895520-I čierna

Mounting Kit METZ CONNECT 1308895520-I Black is a mounting bracket designed for compact installation of wall outlets inside wall conduits. It supports the required maximum bending radii for copper and fiber optic data cables and can be supplied with a plug-in separation cup to isolate data connections from mains voltage-carrying parts.

Advantages

The mounting kit provides a compact solution for installing wall outlets in conduit systems and maintains correct cable bending radii for both copper and fiber optic cables. Multiple mounting heights and optional separation cups allow compatibility with a range of duct systems and provide electrical isolation where required. The black finish matches installation environments where a discreet appearance is preferred.

Suitable for

• Mounting wall outlets in Niedax, Nowaplast and Rehau (Signo series) cable ducts — 52 mm mounting height
• Mounting wall outlets in Licatec, PROTEC, GGK and Thorsmann Inka series ducts — 50 mm and 55 mm mounting heights with adapter TTI-N70 or N215
• Applications requiring separation between data and mains circuits using the plug-in separation cup

Key specifications

• Manufacturer: MetzConnect
• MPN: 1308895520-I
• EAN: 4250184105220
• Color: Black (variants also available in white)
• Mounting heights: 50 mm (with and without separation cup), 52 mm (with and without separation cup), 55 mm (with and without separation cup)
• Compatible ducts: Niedax, Nowaplast, Rehau (Signo), Licatec, PROTEC, GGK, Thorsmann Inka (with adapters TTI-N70 or N215)
• Feature: Optional plug-in separation cup for isolation from mains-carrying parts

How to use

Select the mounting height that matches the cable duct system (50, 52 or 55 mm) and, if required, install the adapter (TTI-N70 or N215) for compatibility with Licatec, PROTEC, GGK or Thorsmann Inka ducts. Fit the bracket into the conduit, ensure proper alignment to preserve the bending radius for copper and fiber optic cables, and secure the wall outlet to the bracket. If electrical isolation is needed, insert the plug-in separation cup before final assembly.

Recommendations

Use the separation cup whenever data outlets are installed close to mains-voltage conductors to ensure isolation. Verify compatibility with the specific duct series and use the recommended adapter models (TTI-N70 or N215) for Licatec, PROTEC, GGK and Thorsmann Inka systems.
