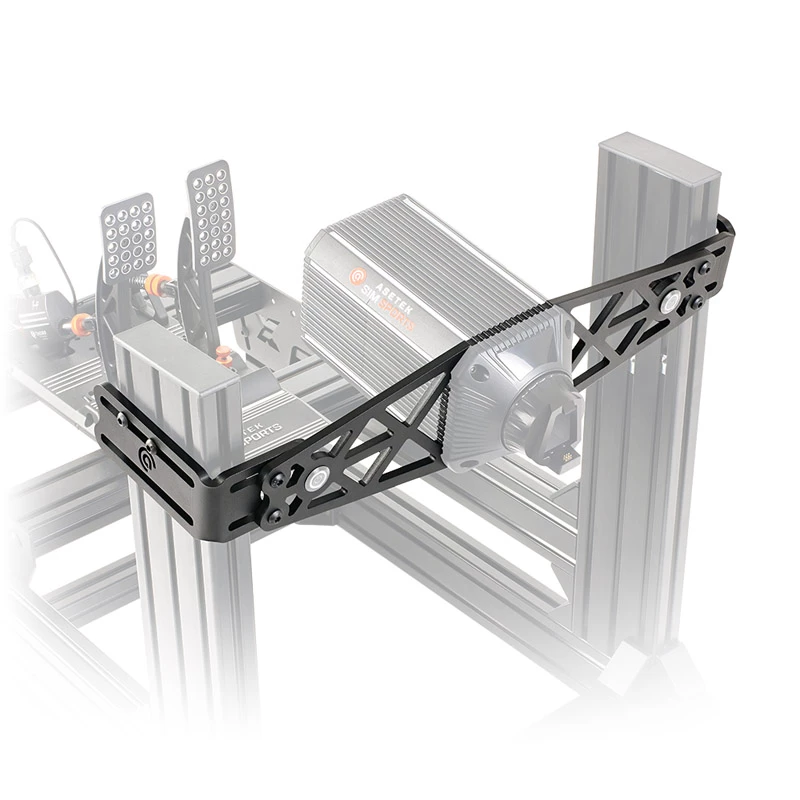

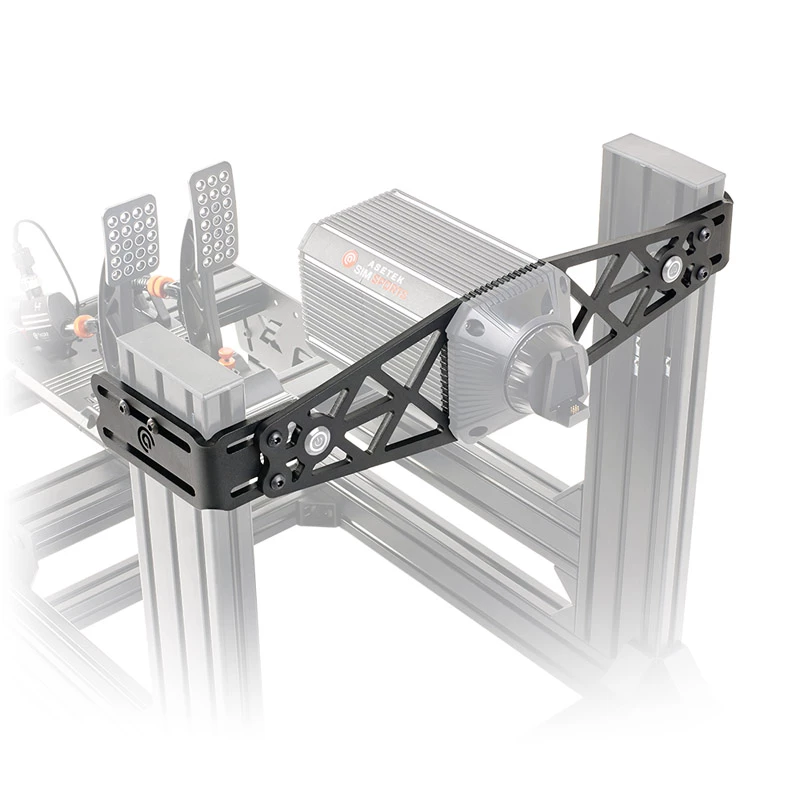

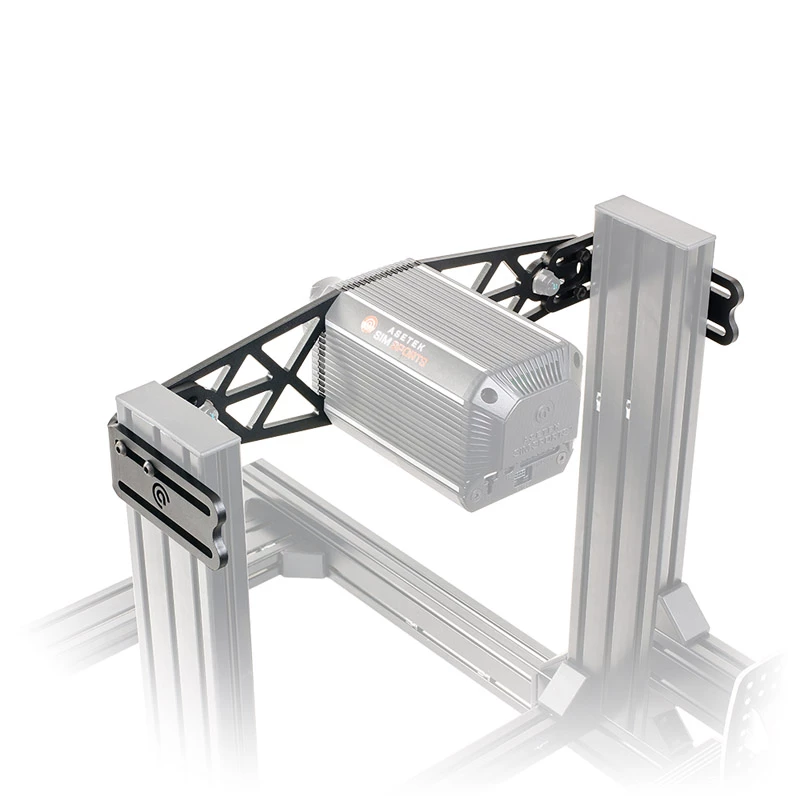

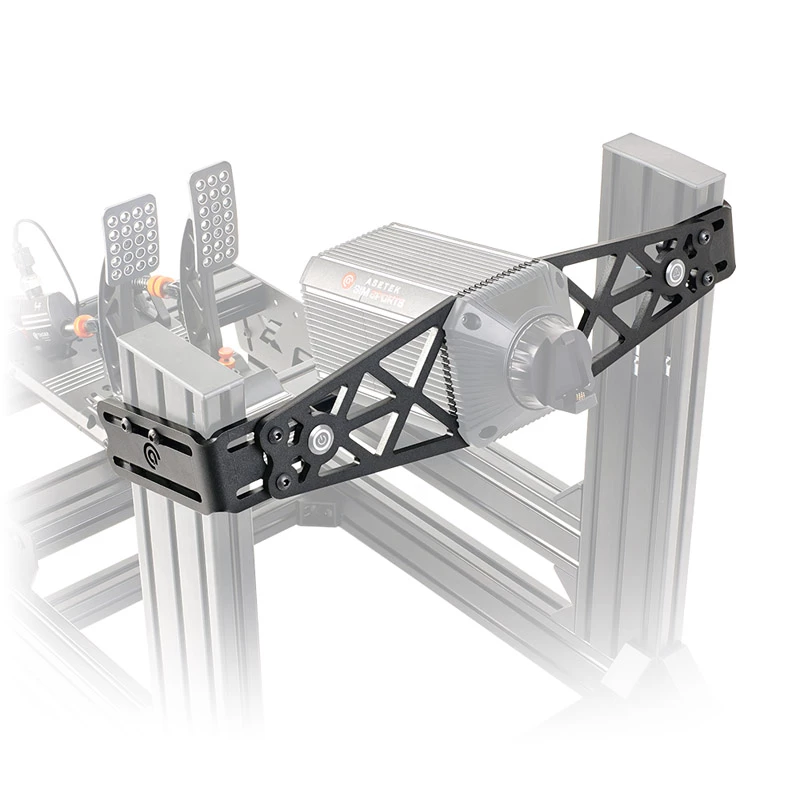

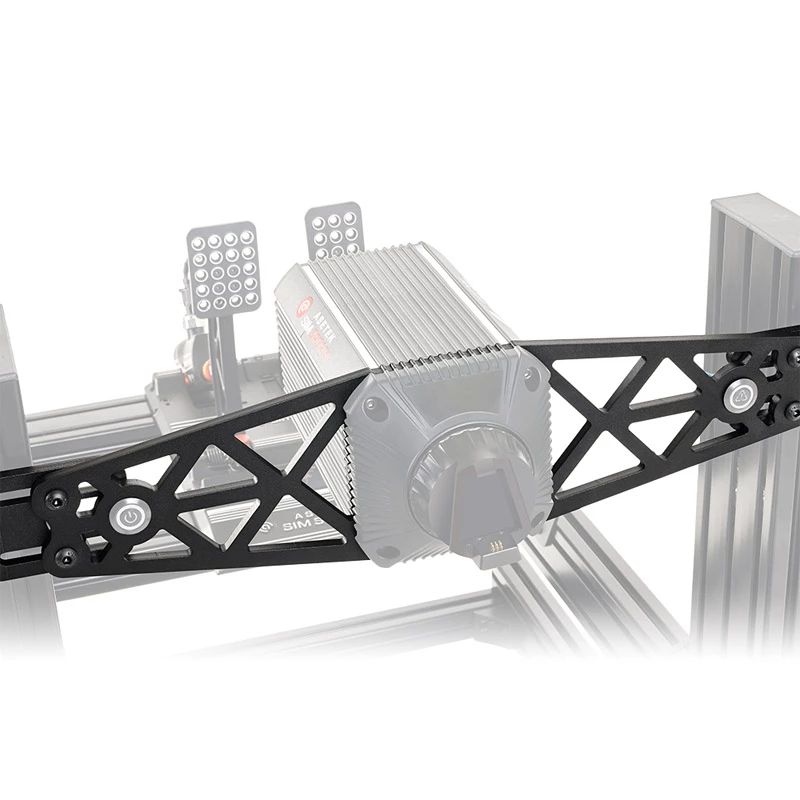

Montážny držiak Asetek SimSports oceľ čierny 135x535x168mm

The Asetek SimSports Steel Black mounting bracket provides a robust solution for installing a Direct Drive wheelbase to a sim racing rig. Constructed from 8 mm thick laser-cut steel with a black finish, the bracket is sized at 135 mm width, 535 mm depth and 168 mm height to deliver solid contact between wheelbase and rig. The front-mount design fastens directly into the aluminium housing of compatible Asetek SimSports wheelbases and offers a straightforward, secure attachment point for the wheelbase front.

Advantages

The bracket’s thick steel construction ensures rigidity and resistance to flex under high torque loads, while the black finish provides a uniform, tool-ready appearance. Two mounting holes on each side allow integration of on/off and torque off buttons close to the wheelbase, preserving a clean layout. The front-mount form factor simplifies installation and shortens the distance between wheelbase and rig for a compact, stable setup.

Suitable for

• Mounting Asetek SimSports Direct Drive wheelbases to aluminium-framed sim rigs
• Setups that require a compact front-mount solution with high rigidity
• Users who want to attach on/off or torque-off controls near the wheelbase
• Racing sim configurations where adjustable tilt of the wheelbase is desired

Key specifications

• Material: 8 mm laser-cut steel
• Finish: black
• Dimensions (W×D×H): 135 mm × 535 mm × 168 mm
• Mounting interface: front-mount that bolts into wheelbase aluminium housing
• Side mounting holes: two per side for auxiliary controls
• Tilt adjustment: achievable via four screws, two per side

How to use

Position the bracket on the front of the wheelbase so the bolt holes align with the aluminium housing, then secure using the appropriate fasteners into the wheelbase. Attach the bracket to the rig, ensuring the bracket sits flush and is tightened to prevent movement. If desired, install on/off and torque-off buttons in the side holes before final tightening. Adjust the tilt angle by loosening the four adjustment screws, setting the preferred angle and re-tightening the screws to lock the position.

Recommendations

Use recommended grade fasteners and proper torque settings when fastening to the wheelbase to avoid damage to the aluminium housing. Verify compatibility with your wheelbase model before installation and check all mounting points periodically for tightness after initial use.
