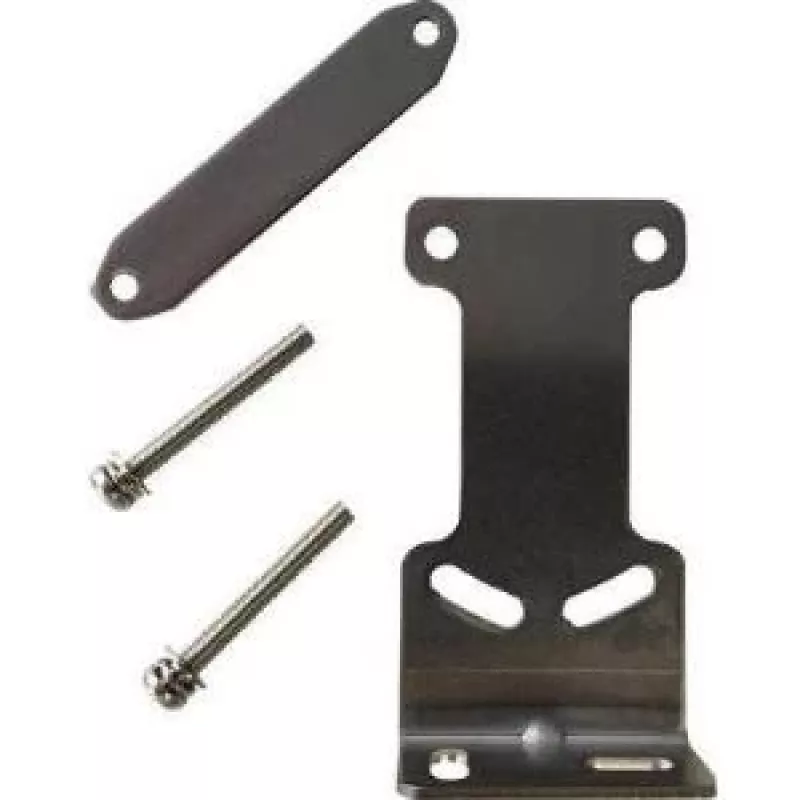

Montážny držiak pre laserový senzor vzdialenosti Panasonic MS-HG-01, rozmery 58 x 15,5 x 1,5 mm

Metal mounting bracket designed for use with Panasonic laser distance sensors, providing a compact and rigid support with dimensions 58 x 15.5 x 1.5 mm. The bracket is intended to secure the sensor in a fixed orientation, enabling repeatable and accurate distance measurements in machine vision, automation, and inspection installations. Its slim profile helps integrate the sensor into tight spaces while maintaining a stable attachment point for consistent performance.

Advantages

The bracket offers a durable metal construction that resists deformation under normal mounting conditions and maintains sensor alignment. Its compact footprint and thin profile minimize interference with surrounding components and allow flexible placement. Precision-cut mounting holes and flat surfaces ensure reliable clamping and consistent optical alignment of the laser distance sensor during operation.

Suitable for

• Fixing a laser distance sensor in measurement and inspection setups
• Mounting sensors on production equipment and automation frames
• Securing sensors within compact or space-constrained housings
• Applications requiring stable, repeatable sensor orientation

Key specifications

• Material: metal construction for structural rigidity
• External dimensions: approximately 58 x 15.5 x 1.5 mm
• Profile: slim, low-height bracket for tight-space integration
• Mounting features: precision-cut holes and flat mounting surfaces for stable attachment
• Compatibility: designed for use with compatible laser distance sensor form factors

How to use

Position the bracket to align the sensor optical axis with the measurement target, then secure the bracket to the mounting surface using appropriate fasteners for the substrate. Attach the laser distance sensor to the bracket using screws that match the sensor's mounting holes, taking care not to overtighten and distort the bracket. Verify sensor alignment and tighten fasteners incrementally, checking measurements after final installation to confirm stable orientation and correct operation.

Recommendations

Use corrosion-resistant fasteners and, where necessary, thread-locking compound for installations subject to vibration. Avoid bending or applying excessive force to the bracket during installation to preserve alignment accuracy. Periodically inspect the mounting points and fasteners to ensure continued stability in long-term deployments.
