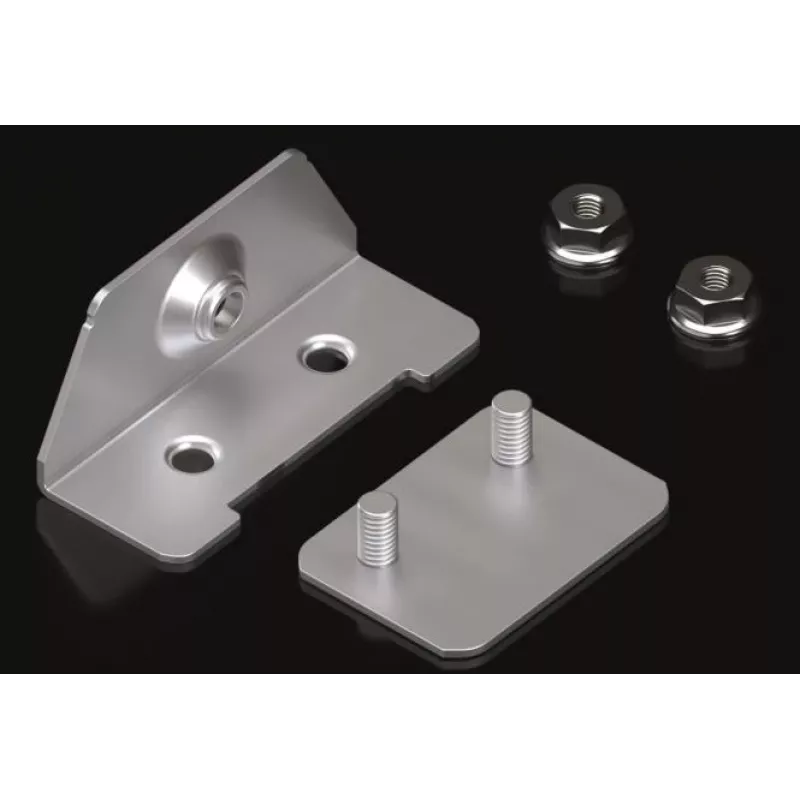

Montážny držiak pre podstavec VX od RITTAL GmbH & Co. KG, model 8660096

Mounting Bracket for Base VX by RITTAL is a precision-made accessory intended for use with VX-series enclosure bases. This bracket provides stable mechanical fixation and alignment for equipment and panels mounted to the VX base, facilitating straightforward assembly and reliable long-term performance in industrial electrical cabinets and enclosures. The design focuses on secure attachment, ease of positioning, and compatibility with standard VX base features.

Advantages

The mounting bracket offers robust support for mounted components while maintaining accurate alignment with the VX base. Constructed to meet industrial usage requirements, it simplifies installation and reduces the need for adjustments during maintenance. Its form factor minimizes obstruction inside the enclosure, enabling efficient use of space and clear access to mounted devices.

Suitable for

Key specifications

How to use

Position the bracket on the VX base at the designated mounting points, align it with the equipment or panel to be secured, and fasten using appropriate fasteners through the bracket holes into the base. Ensure alignment before final tightening to maintain correct positioning of installed components. For installations involving multiple brackets, mount and align them sequentially to support even weight distribution and consistent panel plane.

Recommendations

Use compatible fasteners and torque settings recommended for VX enclosures, ensure grounding and earthing practices are followed when installing electrical equipment, and verify that the bracket and mounted items do not obstruct ventilation or access to other components. Inspect mounted assemblies periodically for tightness and corrosion in aggressive environments.
