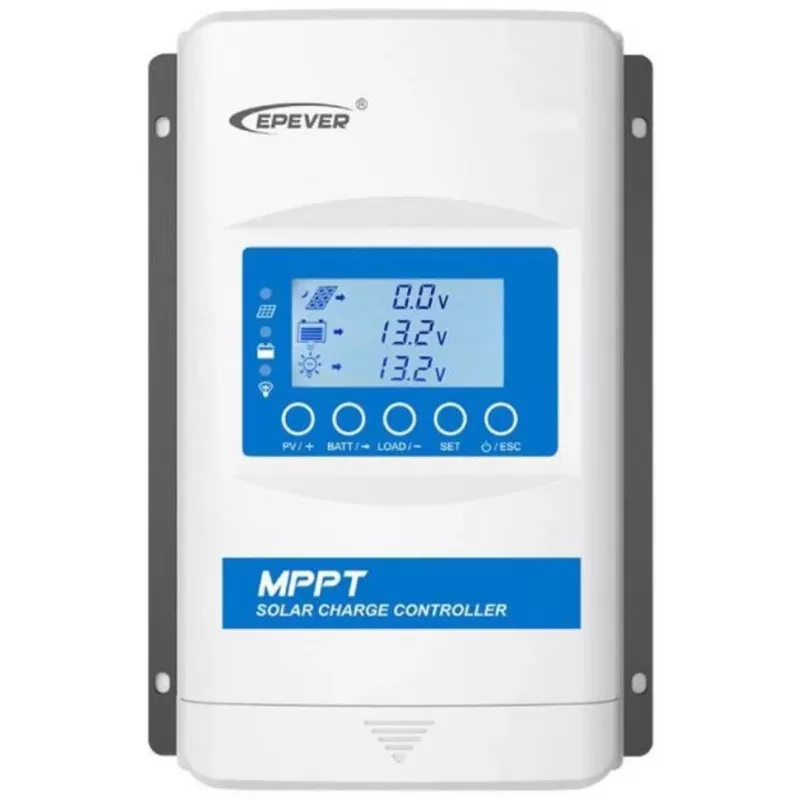

MPPT regulátor nabíjania EPEVER XTRA1210N-XDS2 10A 12/24V, solárny regulátor pre 12V/24V systémy

The MPPT charge controller EPEVER XTRA1210N-XDS2 10A 12/24V is a compact solar regulator designed to maximize energy harvest from PV panels and deliver stable charging for 12V and 24V battery systems. The controller uses maximum power point tracking (MPPT) to adjust input from the solar array, increasing charging efficiency and reducing energy loss compared with conventional PWM regulators. With a rated charging current of 10A, it is intended for small installations where reliable battery management and improved charging performance are required.

Advantages

The controller provides MPPT-based optimization to extract higher power from solar panels under varying irradiance and temperature conditions. Its automatic system voltage recognition for 12V and 24V setups simplifies installation and operation. Built-in protections—such as overcharge protection, over-discharge prevention, and short-circuit safeguards—help maintain battery health and system reliability. The compact form factor and straightforward wiring make it suitable for tight installation spaces and mobile applications like RVs and boats.

Suitable for

• Small off-grid solar systems for cabins and sheds
• Recreational vehicles (RVs) and camper vans
• Boats with 12V or 24V battery banks
• Backup battery charging for remote equipment

Key specifications

• Maximum charging current: 10 A
• Supported battery systems: 12 V and 24 V (automatic detection)
• MPPT technology for improved panel-to-battery efficiency
• Protection features: overcharge, over-discharge, short-circuit and reverse polarity protection
• Typical applications: small PV arrays, mobile and off-grid setups

How to use

Install the MPPT controller close to the battery bank with adequate ventilation. Connect the battery terminals first, observing correct polarity, then connect the solar panel array to the controller input. The unit will automatically detect system voltage (12V or 24V) and begin MPPT regulation. Monitor charging status via any available indicator LEDs or interface on the unit; consult the manufacturer's manual for specific LED codes and detailed wiring diagrams. Ensure cable sizes and fuses are appropriate for a 10A charging current.

Recommendations

For best long-term performance, pair the controller with PV modules whose open-circuit voltage stays within the controller's specified input range, and use a battery type supported by the controller settings. Periodically check connections and clean panel surfaces to maintain optimal charging efficiency. In mobile or marine installations, secure the controller against vibration and moisture according to the installation manual.
