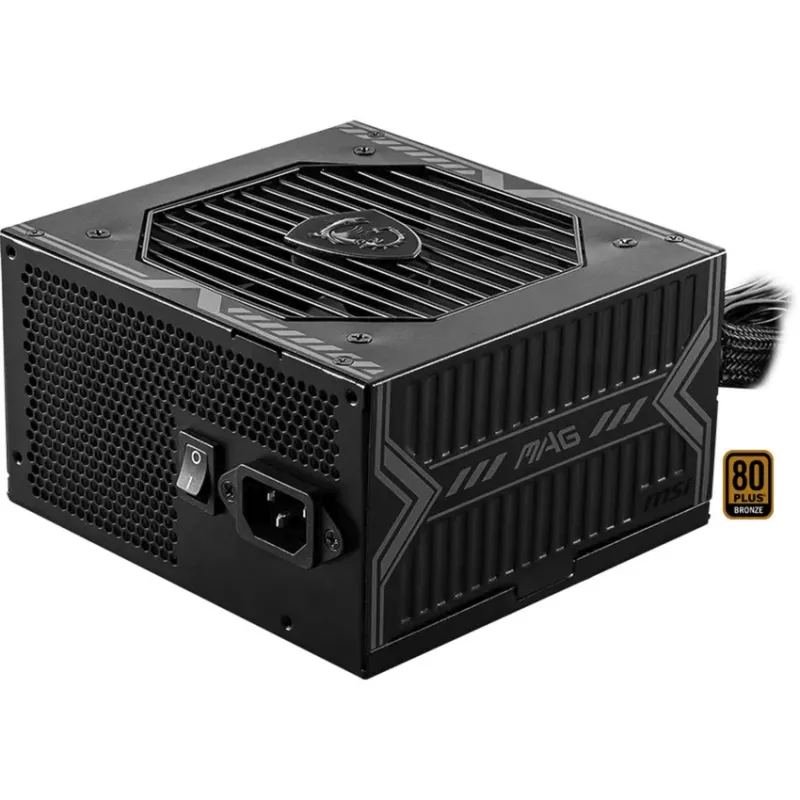

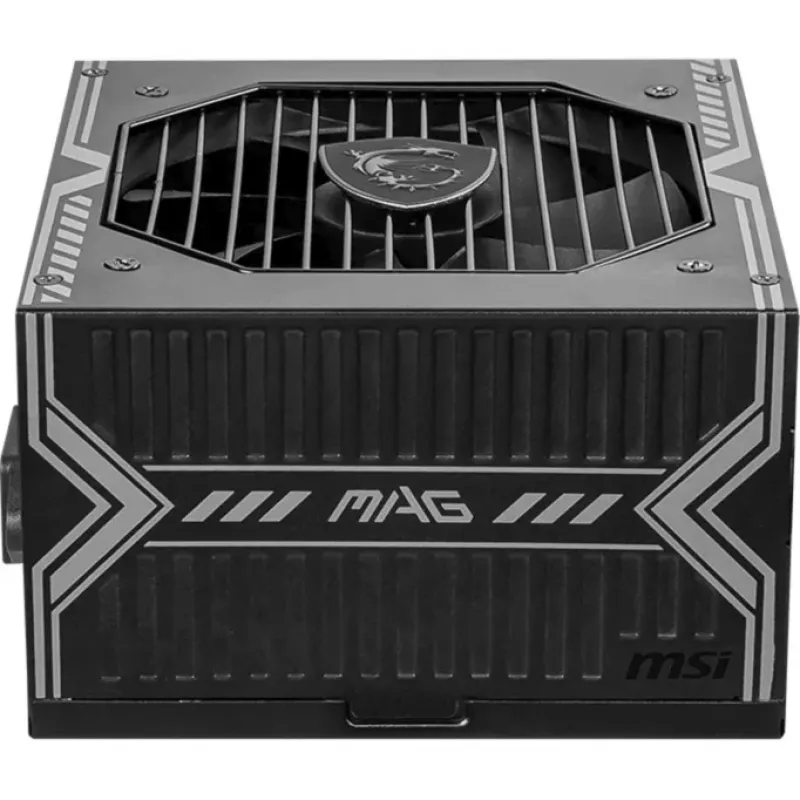

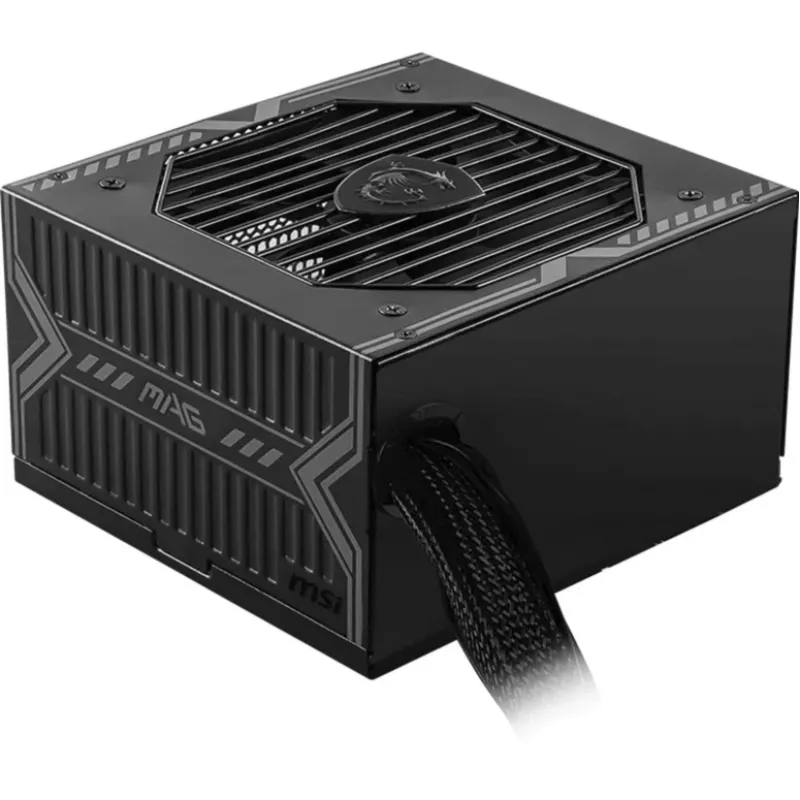

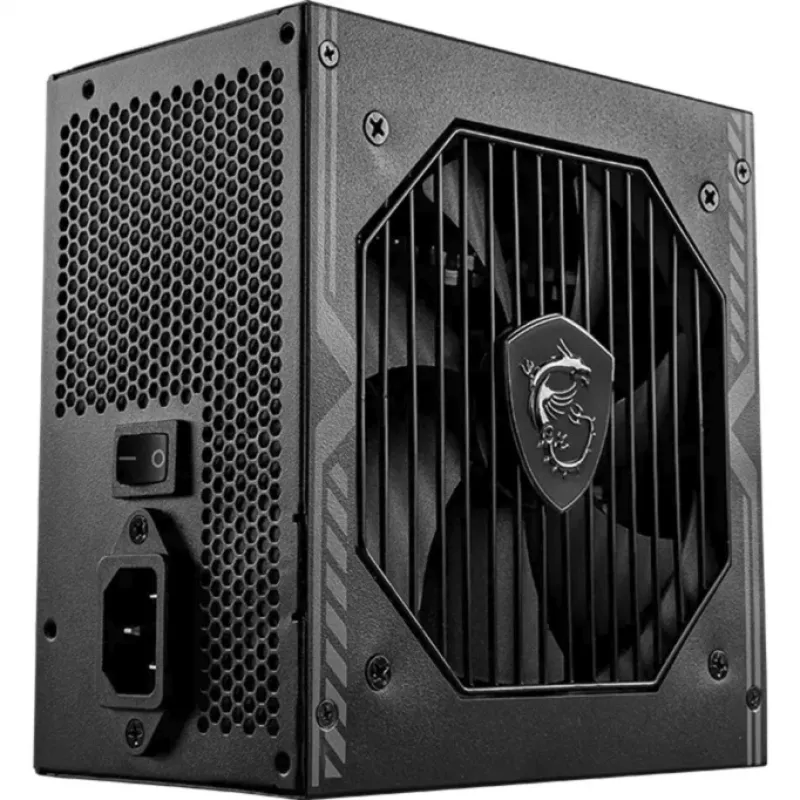

MSI MAG A750BN PCIE5 III 750W napájací zdroj, 80 PLUS Bronze, nemodulárny, čierny

The MSI MAG A750BN PCIE5 III is a reliable and efficient 750W power supply designed for mainstream gaming and productivity builds. With 80 PLUS Bronze certification and a non-modular design, it delivers stable power with essential protections. Equipped with a 120mm sleeve bearing fan, it ensures quiet operation under normal loads. The unit features a native 12VHPWR connector for PCIe 5.0 graphics cards, making it future-ready for the latest GPUs.

Advantages

• 80 PLUS Bronze efficiency reduces energy waste and heat output.
• Native 12VHPWR connector supports next-gen GPUs up to 600W.
• Active PFC and comprehensive protections (OCP, OVP, OPP, OTP, SCP, UVP) ensure system safety.

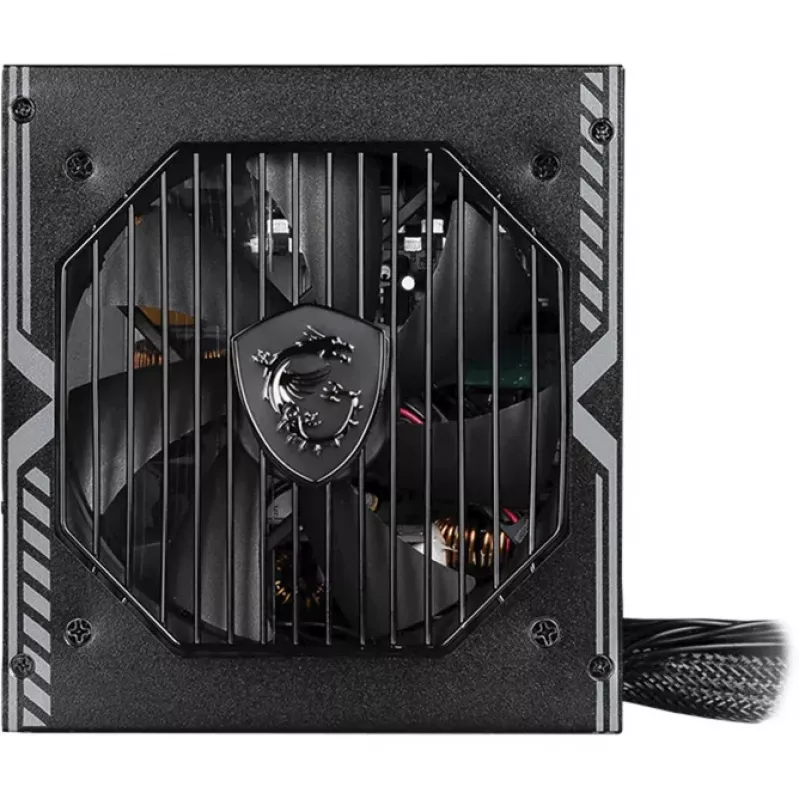

• 120mm fan with sleeve bearing provides quiet cooling.
• 2x EPS 4+4-pin connectors for dual CPU power on high-end motherboards.

Suitable for

• Gaming PCs with mid-to-high-end graphics cards
• Workstations requiring stable 750W power
• Systems upgrading to PCIe 5.0 GPUs
• Budget-conscious builds needing reliable PSU

Key specifications

• Total Power: 750 W
• Efficiency: 80 PLUS Bronze
• Form Factor: ATX
• Modularity: Non-Modular
• Fan Diameter: 120 mm
• Fan Bearing: Sleeve Bearing
• ATX Connector: 1x 24-pin
• EPS Connectors: 2x 4+4-pin
• PCIe Connectors: 4x 6+2-pin
• 12VHPWR Connector: 1x 16-pin (600W)
• SATA Connectors: 6
• Molex Connectors: 2
• Input Voltage: 100-240 Vac
• Input Frequency: 50-60 Hz
• MTBF: 100,000 hours
• Protections: OCP, OVP, OPP, OTP, SCP, UVP
• +12V Rail: 62.5 A (750 W)
• Operating Temperature: 0-40 °C

Recommendations

For optimal performance, pair this power supply with a compatible ATX case and ensure adequate airflow. The non-modular design means all cables are fixed; plan cable management accordingly. Ideal for users seeking a cost-effective, reliable PSU with modern connector support.
