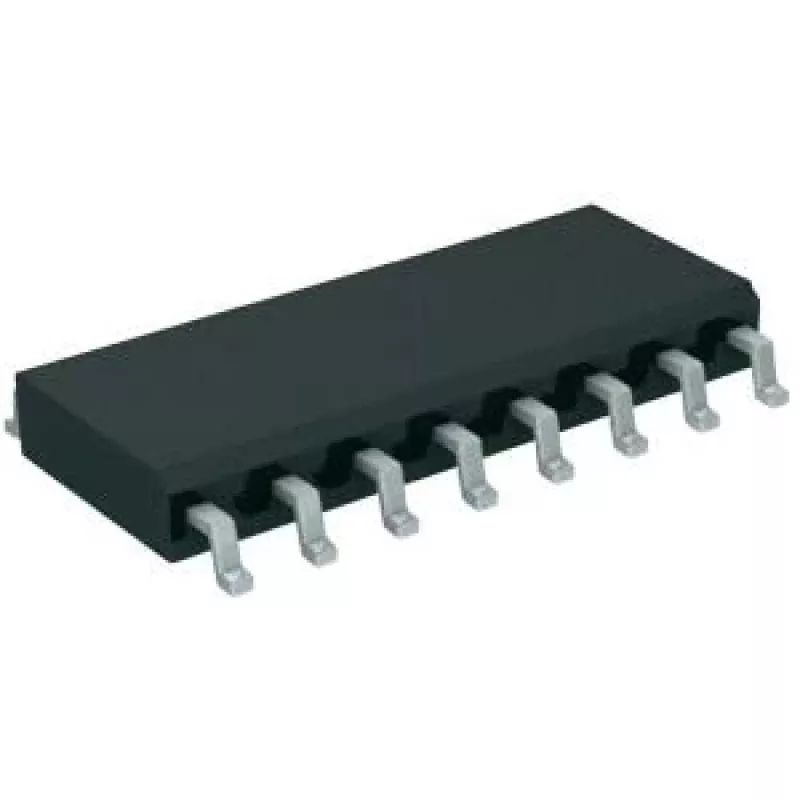

Multiplexer IC Texas Instruments MPC508AU v puzdre SOIC-16

Multiplexer IC Texas Instruments MPC508AU in SOIC-16 package is a compact signal routing component designed for use on printed circuit boards. It provides multi-channel selection and signal multiplexing functionality in a 16-pin SOIC footprint, enabling space-efficient integration in communication, control and instrumentation systems. The device is intended to manage multiple inputs and direct the selected signal to a common output or to route signals between subsystems where controlled selection is required.

Advantages

The SOIC-16 package offers a small board area and simplified assembly for surface-mount manufacturing. As a multiplexer interface IC, it supports reliable selection and switching of multiple signal lines while maintaining predictable electrical characteristics suitable for system-level integration. Its industry-standard package and pinout make it compatible with common PCB layouts and automated assembly processes.

Suitable for

• Signal routing on communication and data acquisition boards
• Input selection in control and instrumentation circuits
• Multiplexing sensor outputs to ADC or processing units
• Board-level signal switching in compact or space-constrained designs

Key specifications

• Package type: 16-pin SOIC (surface-mount)
• Function: multiplexer / signal selection interface
• Mounting: surface-mount technology (SMT)
• Typical application domains: communication, control, instrumentation, data acquisition
• Form factor: compact SOIC-16 for reduced PCB footprint

How to use

Integrate the SOIC-16 multiplexer IC into a PCB design according to the manufacturer's recommended footprint and standard PCB design practices. Connect the multiple input signal lines to the designated input pins and route the selected output to the downstream circuit or ADC. Provide required power and ground connections and any necessary control lines for channel selection. Observe standard ESD handling and soldering guidelines for surface-mount components during assembly.

Recommendations

Verify the electrical compatibility of signal voltage levels and required control logic before installation. Use proper decoupling close to the device power pins and follow recommended soldering profiles for SOIC packages to ensure reliable operation in communication, control, and instrumentation environments.
