Nabíjací kábel pre elektromobily ROLINE Type 2 na Type 2 7,5 m — 22 kW, 32 A, 480 V

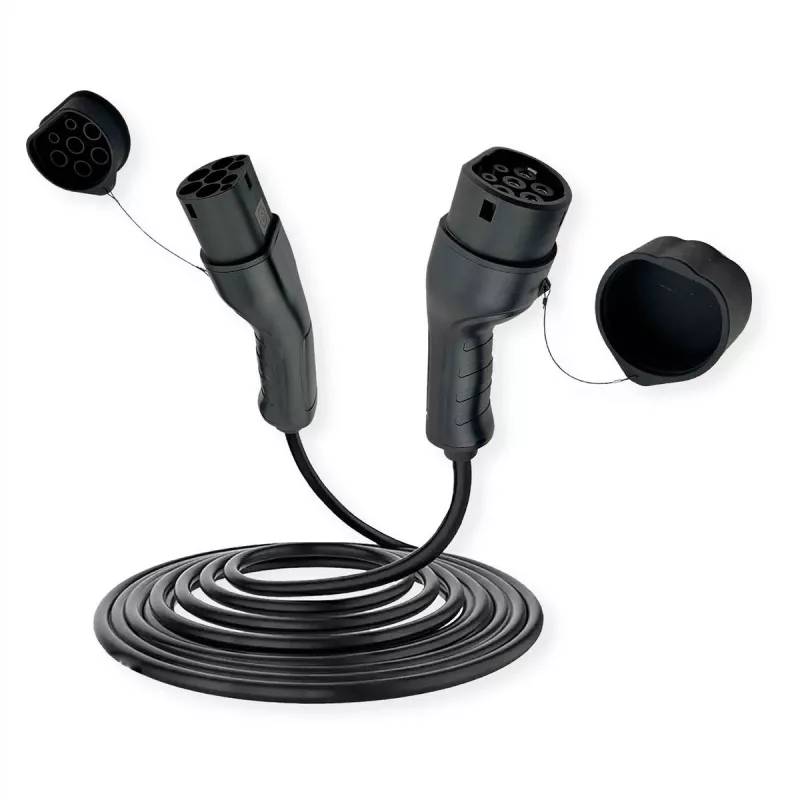

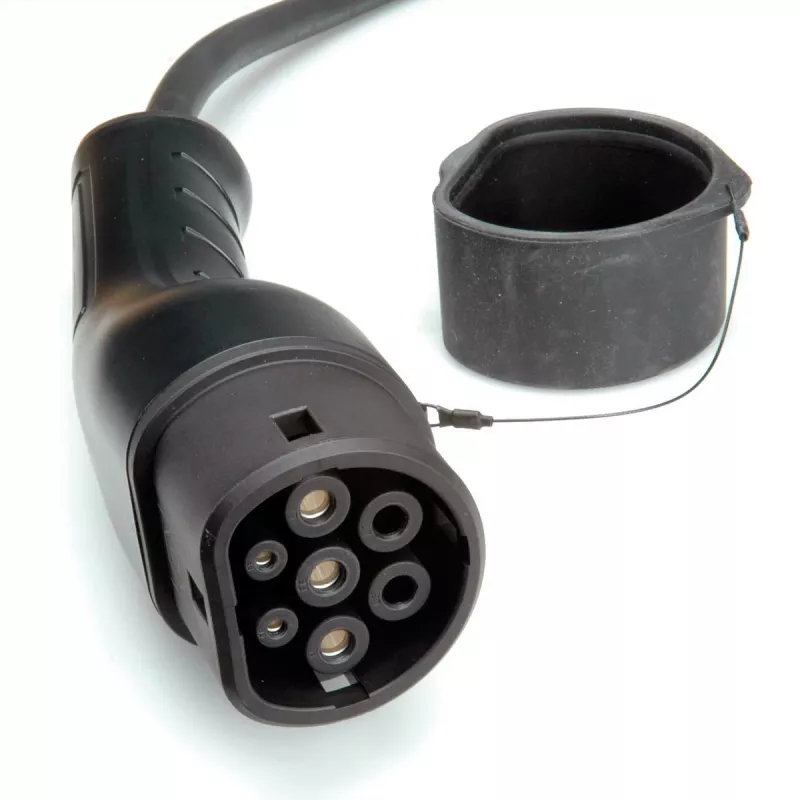

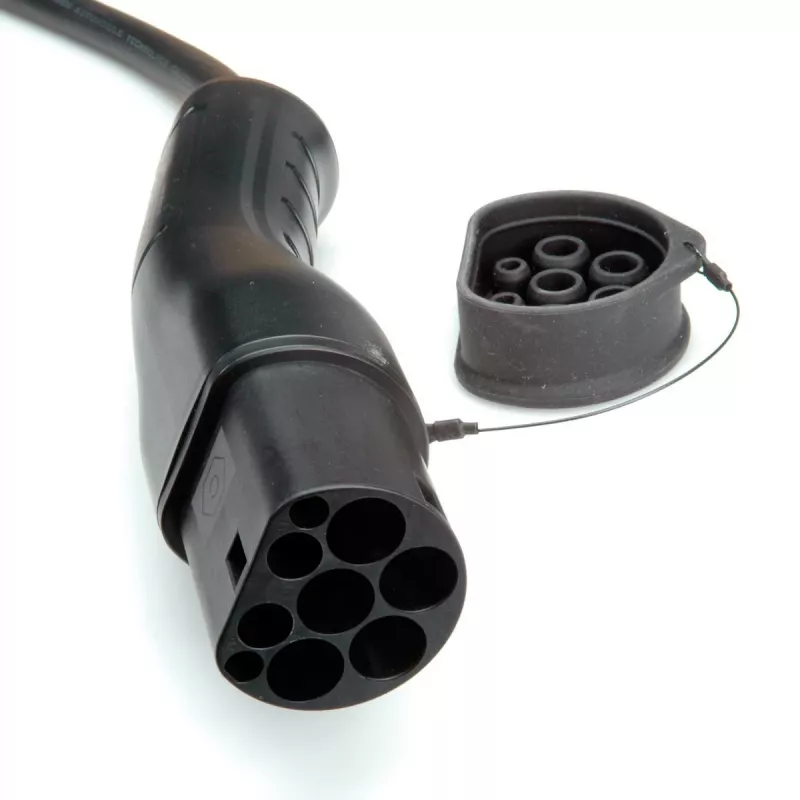

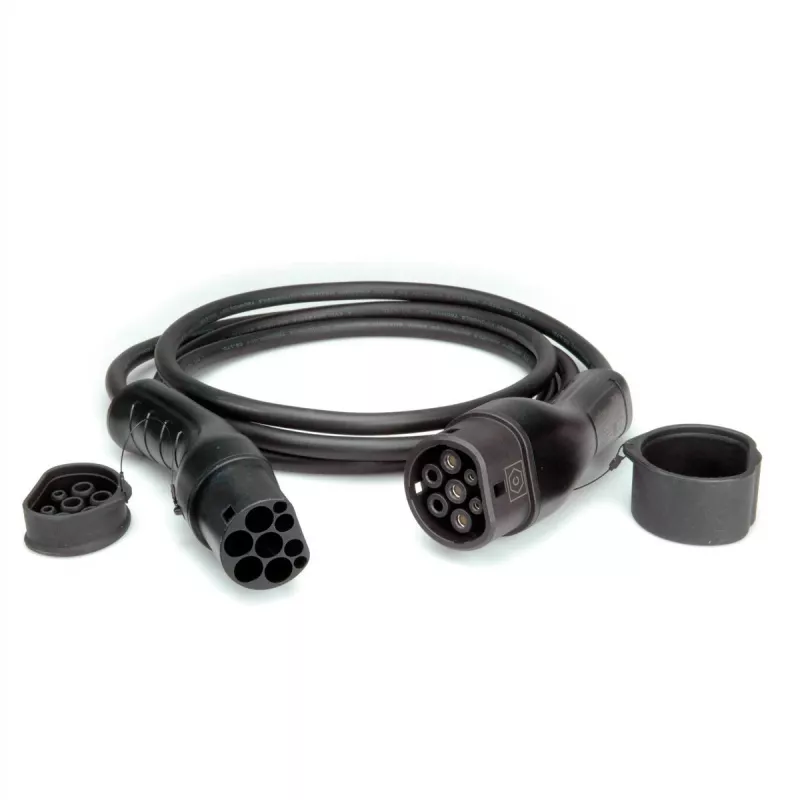

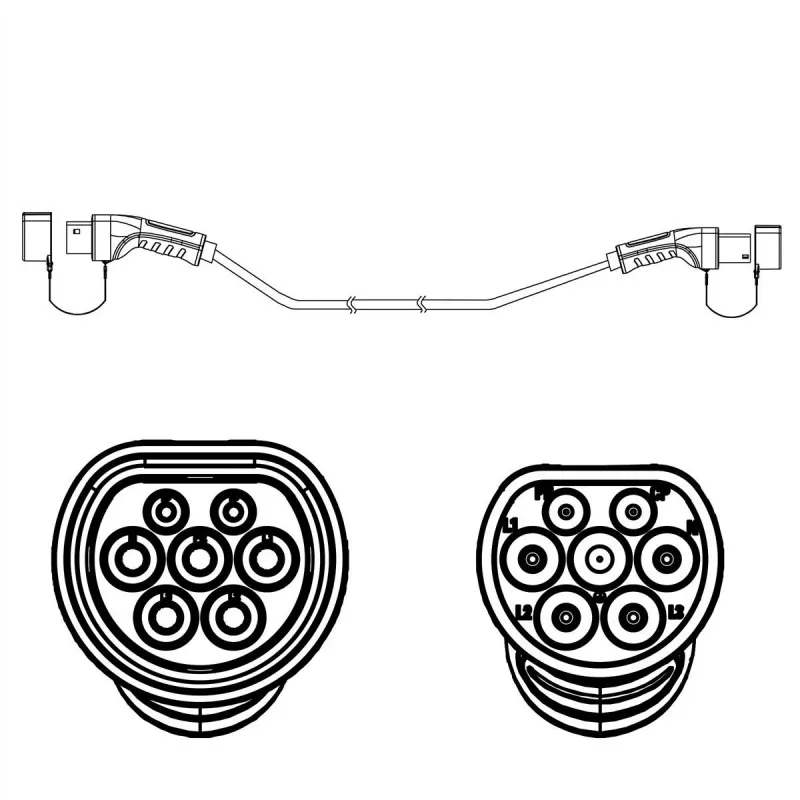

ROLINE Type 2 to Type 2 charging cable, 7.5 m, supports three‑phase AC charging up to 22 kW at 32 A and an operating voltage of 480 V. The cable features Type 2 connectors on both ends and is intended for connecting electric vehicles to compatible AC charging stations. Its 7.5 m length provides flexibility when positioning vehicles relative to charging points and is supplied as a single unit in black finish.

Advantages

The cable provides a standardized Type 2 to Type 2 connection compatible with most European AC chargers and electric vehicles that accept Type 2 inlets. Rated for three‑phase charging, it enables power delivery up to 22 kW at 32 A, allowing faster AC charging where the vehicle and charging station support these parameters. The 7.5 m length reduces the need for precise parking alignment while the robust construction and connectors are designed for repeated daily use in home, workplace, or public environments.

Suitable for

• Charging electric vehicles with a Type 2 inlet from AC charging stations
• Home and workplace charging where a flexible cable length is required
• Public charging points that support three‑phase Type 2 connections
• Temporary or permanent installations that require a portable, single‑piece cable

Key specifications

• Cable length: 7.5 m
• Connector type: Type 2 to Type 2 (both ends)
• Maximum AC power: 22 kW
• Maximum current: 32 A
• Number of phases: three‑phase
• Operating voltage: up to 480 V
• Color: black
• Packaging: single piece

How to use

Park the vehicle so the Type 2 inlet is within reach of the 7.5 m cable. Inspect the cable and connectors for visible damage before use. Insert one Type 2 connector firmly into the vehicle inlet and the other into the charging station socket until the locking mechanism engages, if present. Start charging according to the charger or vehicle interface; monitor charging status through the vehicle dashboard or charging station. After charging is complete, stop the session using the charger or vehicle controls, unlock and unplug the connectors, and store the cable in a dry location away from direct sunlight.

Recommendations

Avoid kinking or tightly coiling the cable during storage, and do not expose connectors to heavy contamination or prolonged moisture. Use the cable within its rated current and voltage limits and verify that both vehicle and charging station support three‑phase 22 kW charging for optimal performance.
