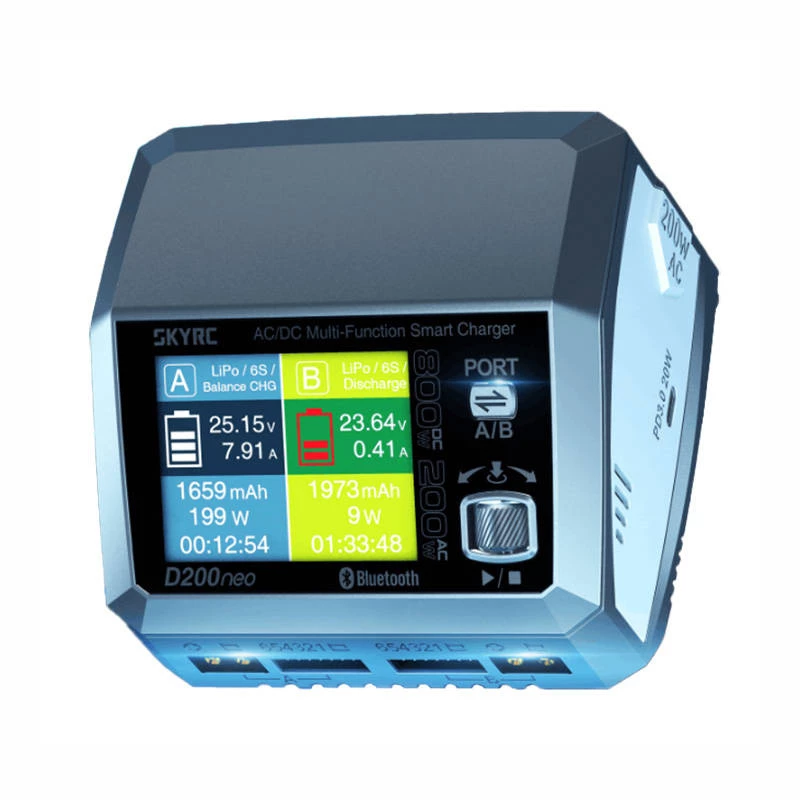

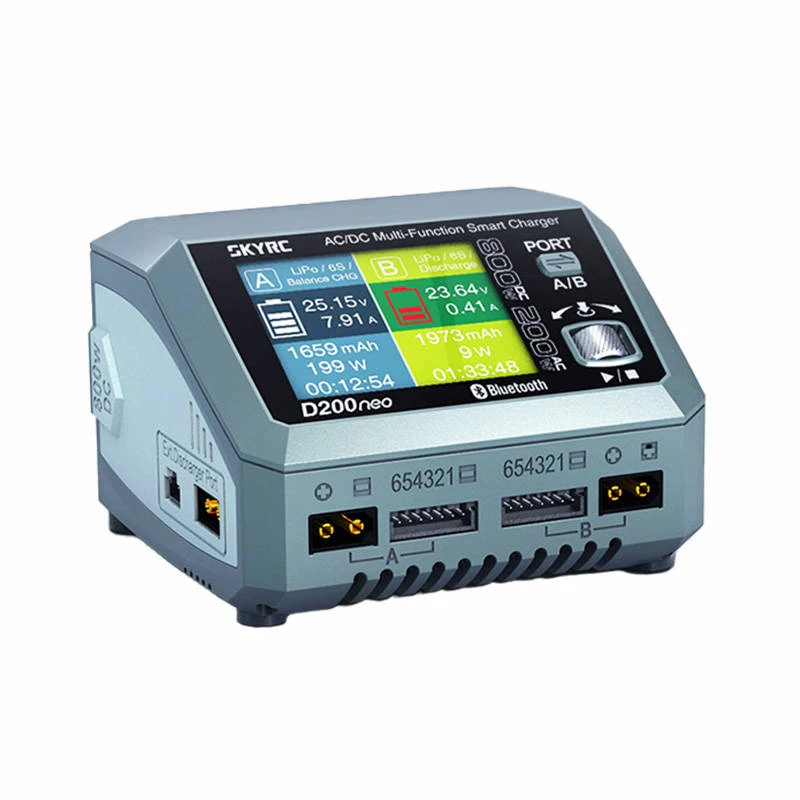

Nabíjačka batérií SkyRC D200 neo AC DC LiPo Li-Ion LiFePO4 35A

The SkyRC D200neo is a dual-output battery charger designed for RC hobbyists and racers. It is powered by an Arm Cortex-M4 core with a Floating Point Unit and DSP instructions, enabling precise charging control. The charger accepts both AC and DC input, supports multiple battery chemistries including LiPo, Li-Ion and LiFePO4, and integrates technologies such as Oversampling and a proprietary HyperBoost algorithm to improve ADC resolution and charging accuracy. The compact unit includes a 2.8" TN display and universal voltage input for travel-friendly operation.

Advantages

The D200neo delivers high charging power and flexible input options: up to 200W on AC and up to 800W on DC, with independent dual ports that can operate simultaneously. Its 200 MHz microcontroller and enhanced PID control increase current response speed and charge accuracy, while parallel charging supports a fast charge current up to 35A. Smart power distribution automatically allocates available power between ports to maximize efficiency. The device also supports battery health monitoring and benchmarking when used with compatible accessories and software.

Suitable for

• Charging LiPo, Li-Ion and LiFePO4 packs for RC cars, planes and drones
• Simultaneous charging of two battery packs with independent outputs
• Parallel fast charging to prepare multiple batteries quickly before races
• Field use with DC power sources or travel use with universal 100–240V AC input

Key specifications

• Brand: SKYRC
• Model: D200neo (MPN: SK-100196, EAN: 6930460007834)
• Display: 2.8" TN
• Input voltage: AC 100–240V (universal), DC input supported
• AC charging power: up to 200W
• DC charging power: up to 800W
• Max charge current (parallel): up to 35A
• Supported chemistries: LiPo, Li-Ion, LiFePO4, NiCd
• Dimensions: 110 x 116 x 79 mm

How to use

Connect the charger to an appropriate AC or DC power source using the supplied cables. Select the battery chemistry and set the desired charging parameters via the 2.8" display. For two-pack charging, connect each pack to a separate output port; the unit will distribute power automatically or allow parallel configuration for faster charging. Monitor charging status on the display and disconnect packs once charging is complete. When using battery health and benchmarking features, connect the compatible BD3504 accessory and use SkyRC Charger Master3 software to record discharge curves.

Recommendations

Use appropriate balance leads and adhere to the recommended charge current for each battery type. Avoid charging damaged batteries and ensure good ventilation during high-power DC charging. For accurate benchmarking and battery health checks, use the BD3504 accessory together with SkyRC Charger Master3.
