Nadomietkové puzdro JUNG ES 2581 A-L ušľachtilá oceľ

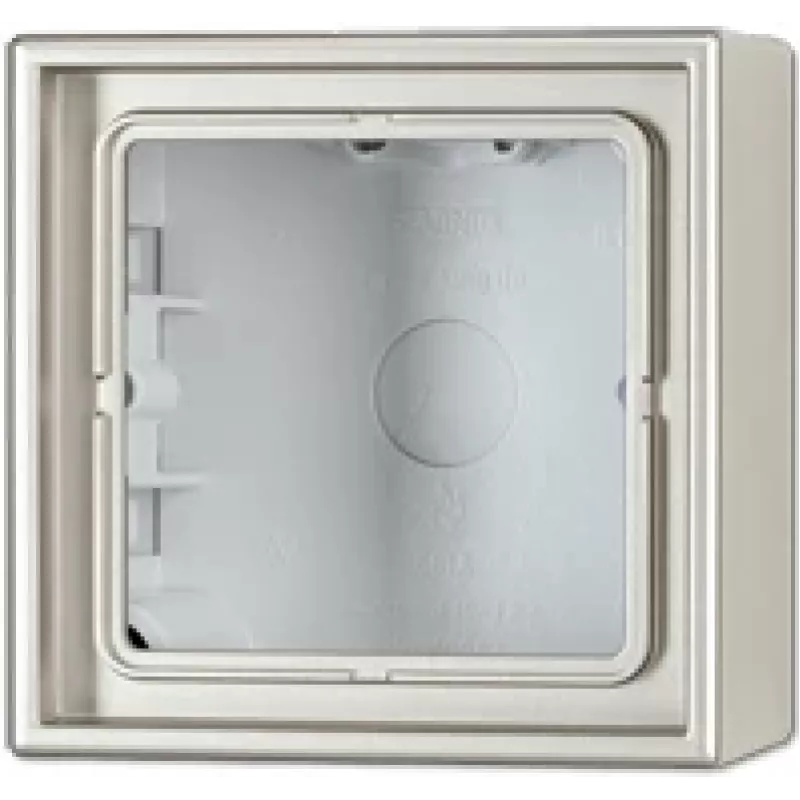

The JUNG ES 2581 A-L outlet box is a 1-gang stainless steel enclosure sized 81 x 81 x 47 mm with an integrated frame and a non‑flammable ground plate. It is intended for use with LS‑range inserts with covers (excluding key switches with reference number ending ..15, the 3‑level switch, and Swiss socket type 13). The box accepts radio module R AN ..914 .. when installed into 2‑ to 3‑gang surface caps. Its stainless steel construction provides corrosion resistance and mechanical durability for residential and commercial installations.

Advantages

Constructed from stainless steel for long service life and corrosion resistance, the outlet box includes an integrated frame and a non‑flammable grounding plate for improved safety. It is compact (81 x 81 x 47 mm) and compatible with most LS‑range inserts with covers, offering straightforward installation and the option to house certain radio modules when used with multi‑gang surface caps.

Suitable for

Key specifications

How to use

Prepare the installation site and mount the outlet box in accordance with local electrical regulations. Fit the chosen LS‑range insert with cover into the box, taking care to observe the stated exclusions (key switches ref. ..15, 3‑level switch, Swiss socket type 13). If a radio module R AN ..914 .. is required, install the box into a 2‑ or 3‑gang surface cap before fitting the module. Ensure the non‑flammable ground plate is correctly connected to the protective earth conductor.

Recommendations

Use only compatible LS‑range inserts and observe the excluded device types. Verify dimensions and clearance for surface cap assemblies when planning to install radio modules. Follow national wiring rules and have a qualified electrician perform the connection and earthing.
