Napájací kábel Bachmann 5m Schuko H05VV-F 3G 1,50mm² čierny

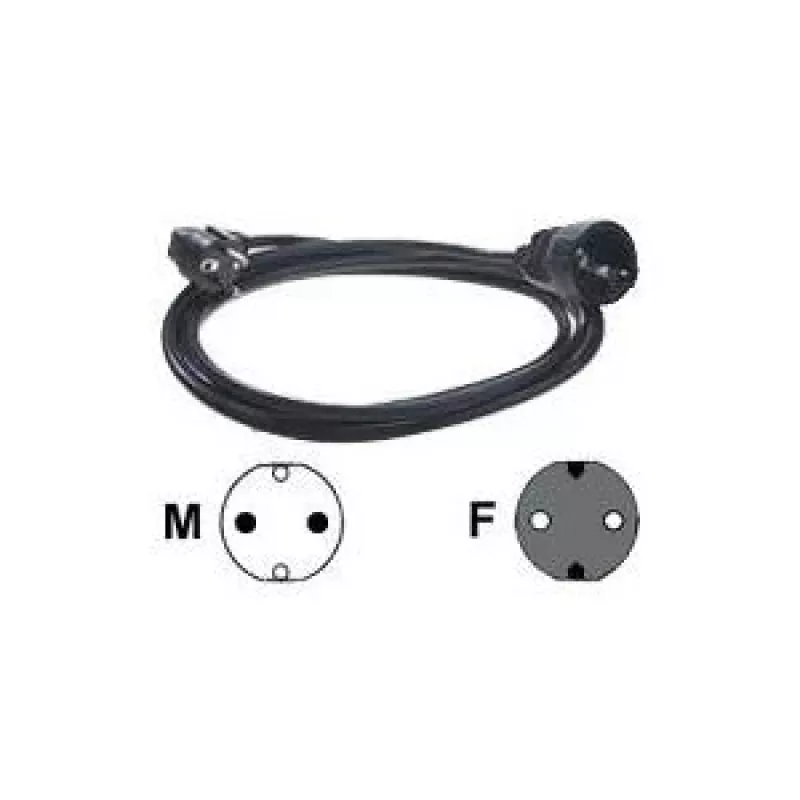

The Bachmann Power Cable 5m Schuko H05VV-F 3G 1.50mm² is a 5-meter earthing contact extension cable designed for safe, reliable power distribution. It is rated for 16 A and 250 V~ and constructed with PVC insulation rated to 70°C. One end features a moulded right-angle Schuko plug with a dual earthing contact system, while the other end has a moulded earthing contact coupling.

Advantages

This power cable provides a standardized Schuko connection compatible with many appliances and devices. The right-angle plug reduces strain in confined spaces, and the moulded construction improves mechanical stability and contact reliability. PVC insulation rated to 70°C offers basic thermal protection for typical indoor use.

Suitable for

• Extending power connections for household and office equipment
• Use with appliances and devices requiring a Schuko grounding connection
• Temporary installations where a 5 m cable length is required

Key specifications

• Brand: Bachmann
• Model / MPN: 341.186
• EAN: 4016514002955
• Cable type: H05VV-F 3G 1.50 mm²
• Length: 5 m
• Current / Voltage: 16 A / 250 V~
• Insulation: PVC, 70°C
• End 1: Moulded right-angle Schuko plug with dual earthing contact
• End 2: Moulded earthing contact coupling

How to use

Connect the moulded right-angle Schuko plug to a compatible mains socket and insert the earthing contact coupling into the device or extension inlet requiring a grounded Schuko connection. Ensure the connections are fully seated and that the cable is routed to avoid sharp bends or pinch points. Do not exceed the rated current of 16 A and avoid using the cable in wet or outdoor environments unless specified for such use by the equipment manufacturer.

Recommendations

Inspect the cable and connectors before each use for damage or wear. Replace the cable if the insulation, plug, or coupling shows cracks or exposed conductors. Use the cable within its specified ratings (16 A, 250 V~, PVC 70°C) and avoid permanent installation in high-temperature or outdoor conditions without appropriate protection.
