Napájací kábel Bachmann 672.180 čierny 2 m

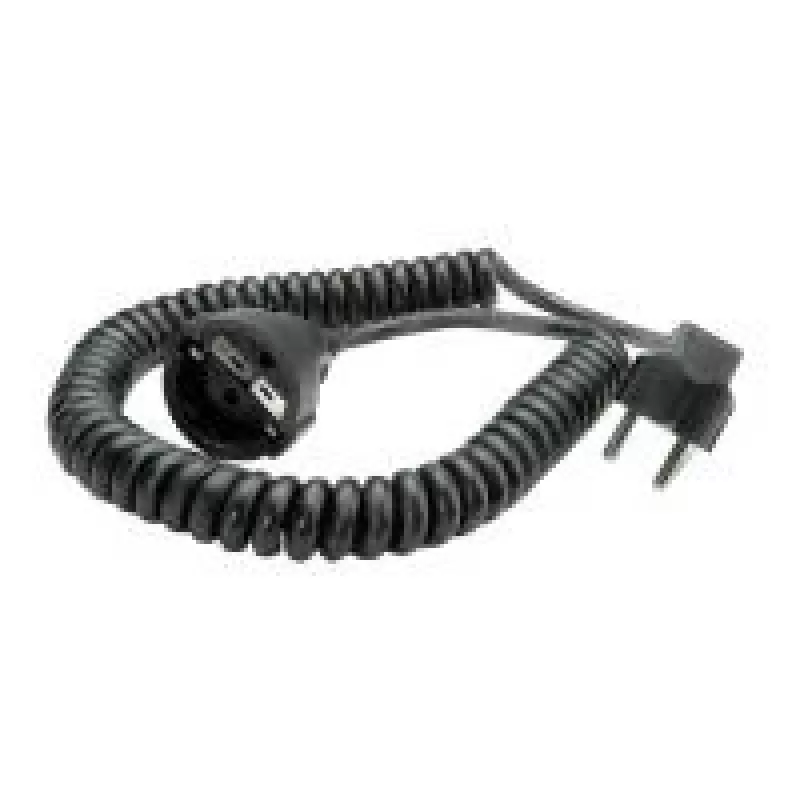

The Bachmann 672.180 Black 2 m power cable is a molded spiral power lead designed for reliable electrical connection in various environments. Manufactured by a specialist in spiral cables, this cable combines a flexible helix design with robust molded end fittings and an earthing contact system to ensure safe power delivery for compatible devices.

Advantages

The cable offers an elongation factor of 1:4 and is rated for continuous use up to 70 °C. Both ends are moulded: one end has a central plug with a dual earthing contact system, the other end is a coupling with earthing contact. The conductor type is YMHY-J 3G 1.50 mm², providing a compact overall diameter and a coiled form factor that reduces strain and improves cable management.

Suitable for

• Powering office and household equipment where a flexible, retractable cable is required
• Applications needing a grounded connection with molded earthing contacts
• Situations where space-saving coiled cable routing is beneficial

Key specifications

• Cable length: 2 m (coiled)
• Colour: Black
• Elongation factor: 1:4
• Temperature rating: 70 °C
• Conductor: YMHY-J 3G 1.50 mm²
• Approx. cable diameter: 8.4 mm
• CID (coiled inner diameter): approx. 10 mm
• CED (coiled outer diameter): approx. 27 mm
• End 1: central plug with dual earthing contact, moulded
• End 2: coupling with earthing contact, moulded

How to use

Connect the moulded central plug to the matching inlet on your device and secure the coupling with earthing contact at the corresponding socket. Allow the spiral cable to extend and retract naturally when moving connected equipment to avoid overstressing the helix. Ensure both ends are fully engaged to maintain the earth connection and proper electrical contact.

Recommendations

Inspect the cable and molded contacts before each use for damage; do not use if insulation or contacts are compromised. Keep the cable away from sharp edges and high heat sources; avoid exceeding the specified temperature rating of 70 °C. For safety, use only with compatible grounded sockets and equipment.
