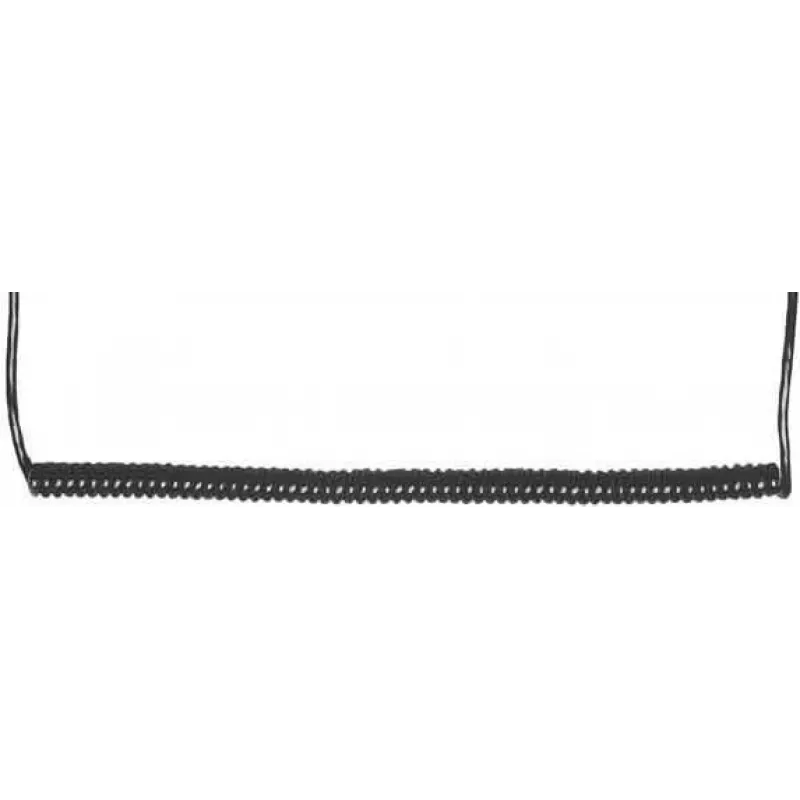

Napájací kábel Bachmann 692.181 čierny 5 m

The Bachmann 692.181 power cable is a 5 m black supply cable designed for reliable electrical connections in industrial and technical environments. The cable uses PVC conductors with a PUR outer sheath, providing mechanical robustness and suitability for applications that require resistance to abrasion, notching and cold temperatures. Both ends are cut flush and delivered as 200 mm free conductor length at each end.

Advantages

This power cable offers good chemical resistance, high resistance to cold, excellent abrasion and notching resistance, and a very good reset force. The PUR sheath enhances durability in demanding environments while the PVC wires ensure stable electrical performance.

Suitable for

• Connection cables for engineering equipment
• Power distribution in the construction industry
• Robotics and automated machinery connections
• Temporary and fixed installations requiring a flexible, durable cable

Key specifications

• Brand: Bachmann
• Model / MPN: 692.181
• Length: 5 m
• Colour: Black
• Wires: PVC
• Sheath: PUR
• Elongation factor: 1:5
• Maximum temperature: 70 °C
• End preparation: both ends cut flush, 200 mm free length each
• EAN: 4016514005277

How to use

Strip the delivered 200 mm conductor ends to the required length for your terminal or connector, taking care to follow the equipment manufacturer’s wiring and earthing instructions. Route the cable to avoid sharp edges and excessive bending beyond the 1:5 elongation factor. Use appropriate strain relief and conduit where mechanical protection is needed. Verify continuity and insulation before applying power.

Recommendations

For long-term performance, avoid exposure to temperatures above 70 °C and strong solvents not compatible with PUR. Inspect the sheath regularly for abrasion or cuts in high-wear installations and replace the cable if damage compromises insulation or conductors.
