Napájací zdroj Cooler Master XG650 650 W

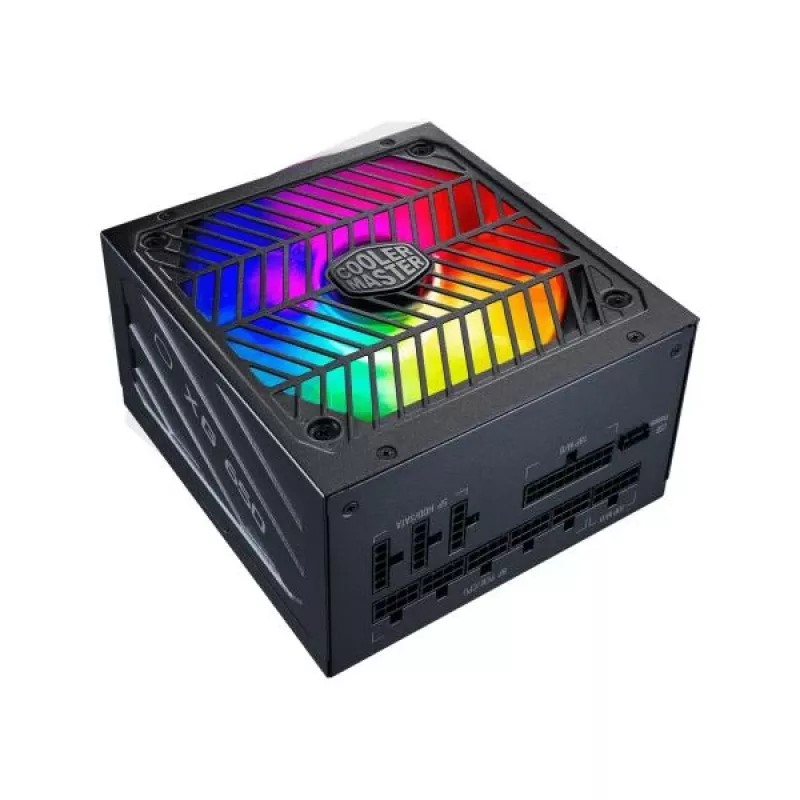

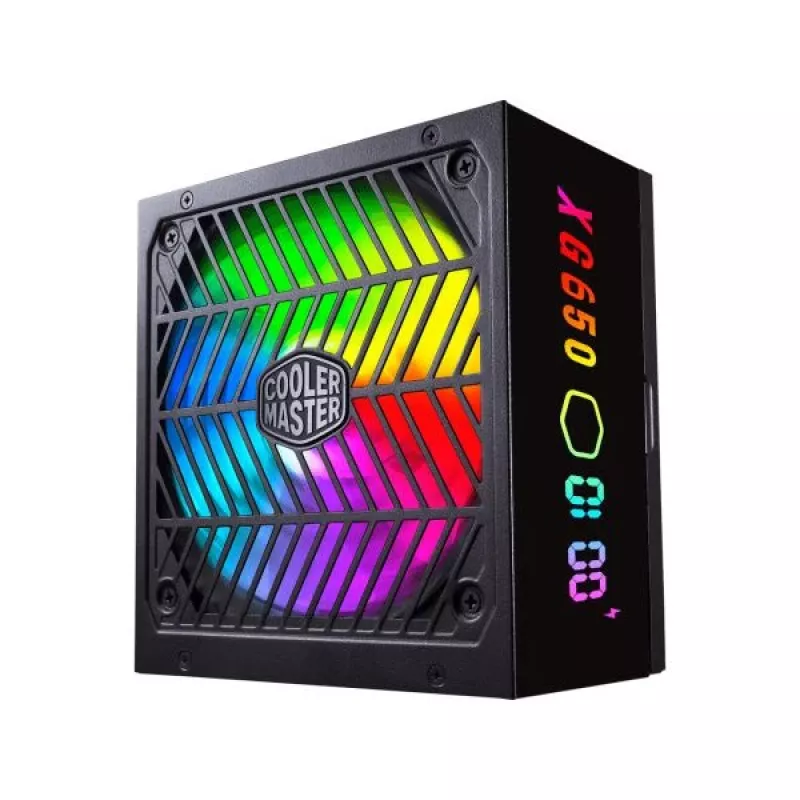

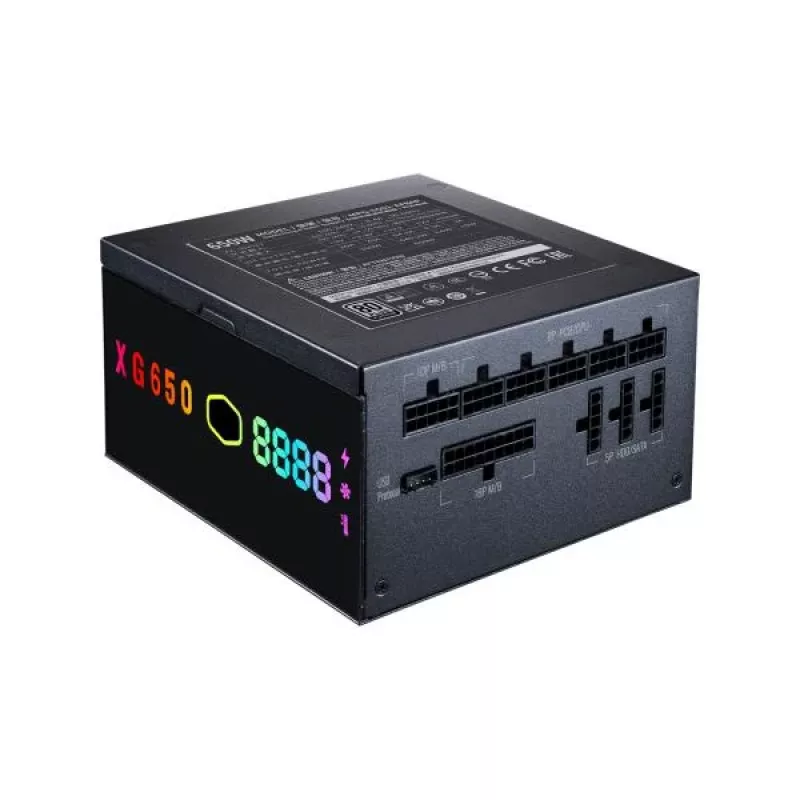

Cooler Master XG650 is a 650 W power supply unit designed for desktop PCs. It is Cooler Master's first in-house XG Plus Platinum platform PSU providing 80 PLUS Platinum efficiency, a full-modular cable set with flat cables, a 135 mm ARGB silent fan and an integrated digital information display compatible with MasterPlus+ software. Built with 100% Japanese capacitors and DC-DC topology, the unit is intended to deliver stable voltage outputs, reduced ripple and long-term reliability for everyday computing and gaming systems.

Advantages

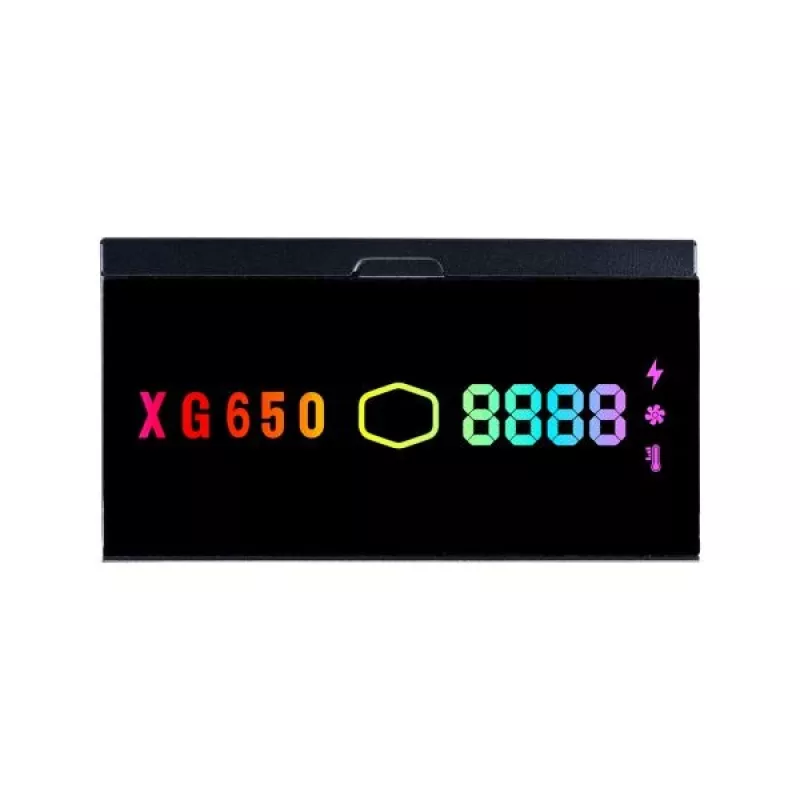

The XG650 combines high efficiency (80 PLUS Platinum) and a quiet ARGB 135 mm fan with a digital side panel that displays real-time data such as fan speed, temperature and power load. Full-modular flat cabling reduces clutter to improve airflow and system aesthetics. The internal design — full-bridge LLC resonant converter plus DC-DC stages and Japanese capacitors — supports stable voltages, lower ripple and prolonged lifespan. MasterPlus+ compatibility allows software monitoring and ARGB control.

Suitable for

• Gaming desktop PCs requiring up to 650 W continuous power
• Systems where high efficiency and low noise are priorities
• Builds needing modular flat cables for better cable management and airflow
• Users who want real-time monitoring and ARGB control via MasterPlus+

Key specifications

• Total power: 650 W
• Efficiency: 80 PLUS Platinum (≈92% typical)
• Motherboard connector: 24-pin ATX
• Fan: 135 mm ARGB silent fan
• AC input: 100–240 V, 50–60 Hz
• Cabling: full-modular with flat cables; provided SATA cable lengths 500 / 620 / 740 / 860 mm; motherboard cable 650 mm
• Capacitors: 100% Japanese capacitors
• Color: Black

How to use

Install the XG650 into a compatible PC case and connect the 24-pin ATX motherboard cable, CPU and PCIe connectors as required for your components. Use the modular cables to route power to drives and peripherals, taking advantage of the flat cables to reduce clutter and improve airflow. Connect the unit to mains power within the specified 100–240 V, 50–60 Hz range. Install MasterPlus+ software to view the information display readouts, monitor performance in real time and configure ARGB lighting.

Recommendations

For reliable operation, ensure adequate case ventilation and use the recommended cabling for your components. Monitor temperatures and load with MasterPlus+ and keep firmware or software up to date. Avoid exceeding the 650 W total output and follow standard safety practices when installing a PSU.
