Napájací zdroj Enermax Revolution D.F.12 750 W

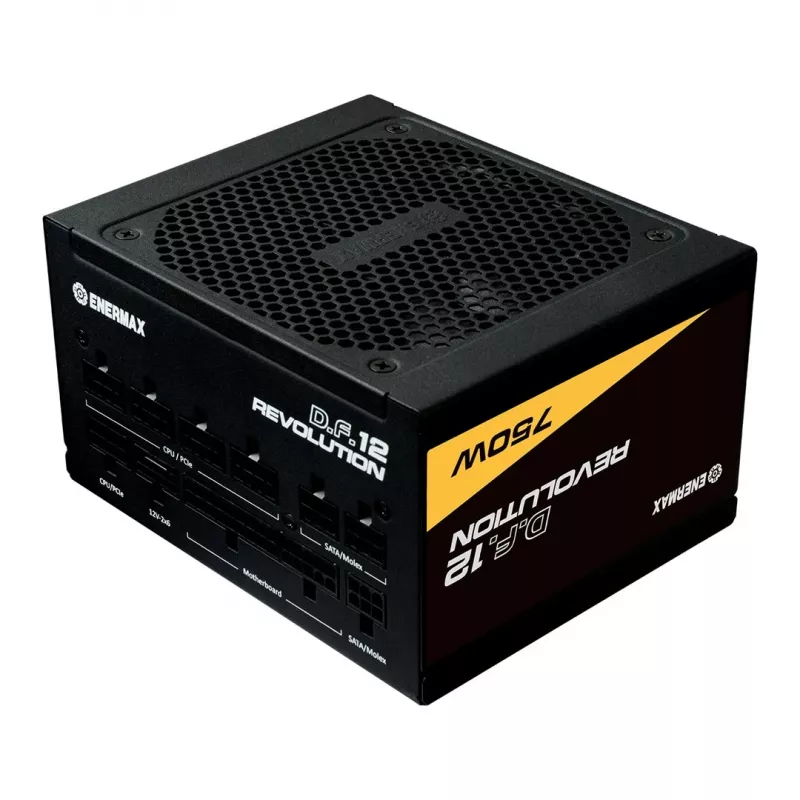

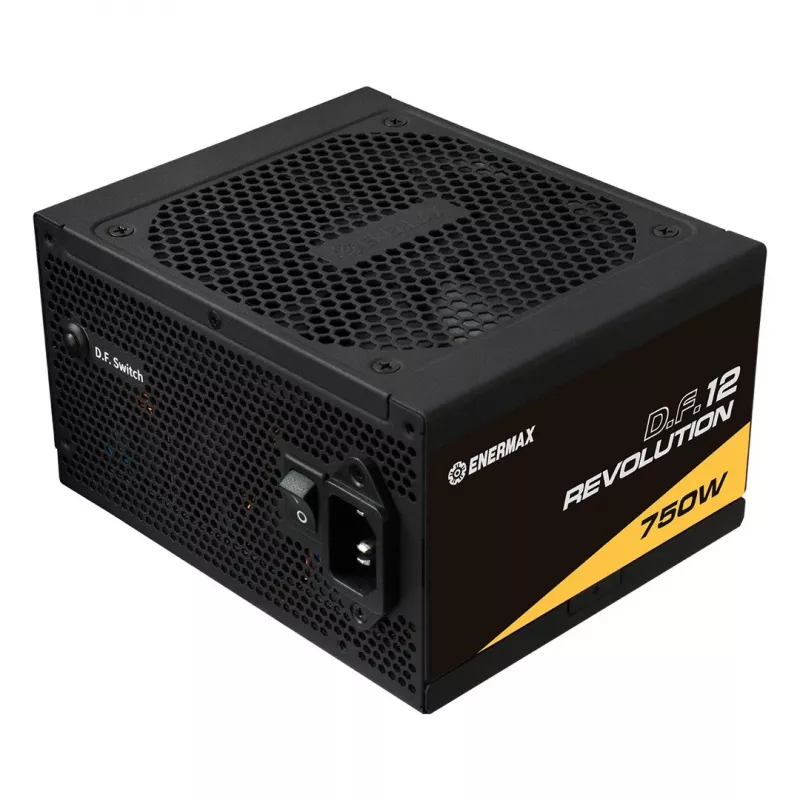

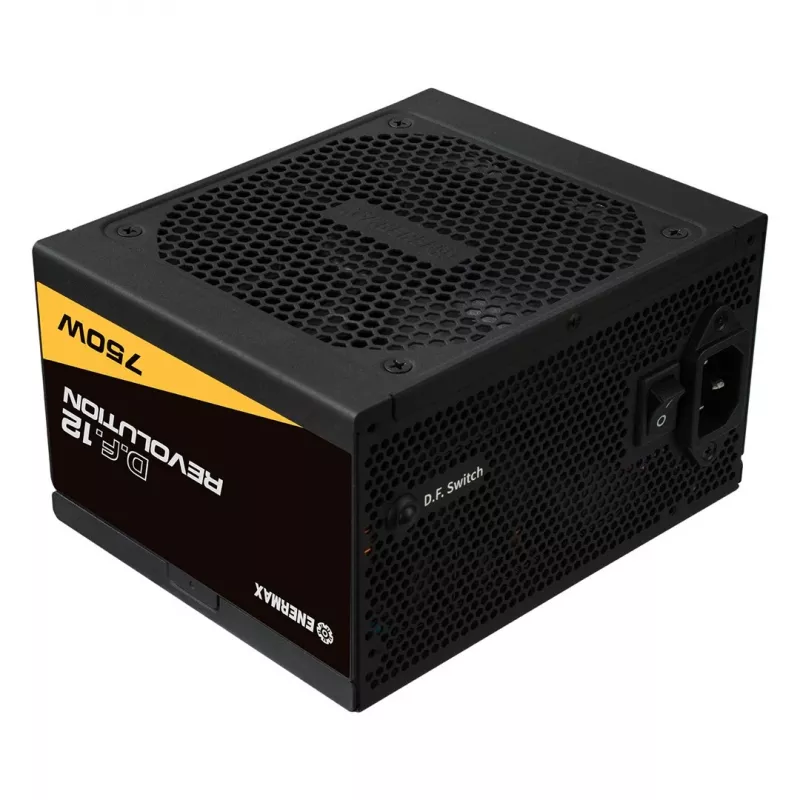

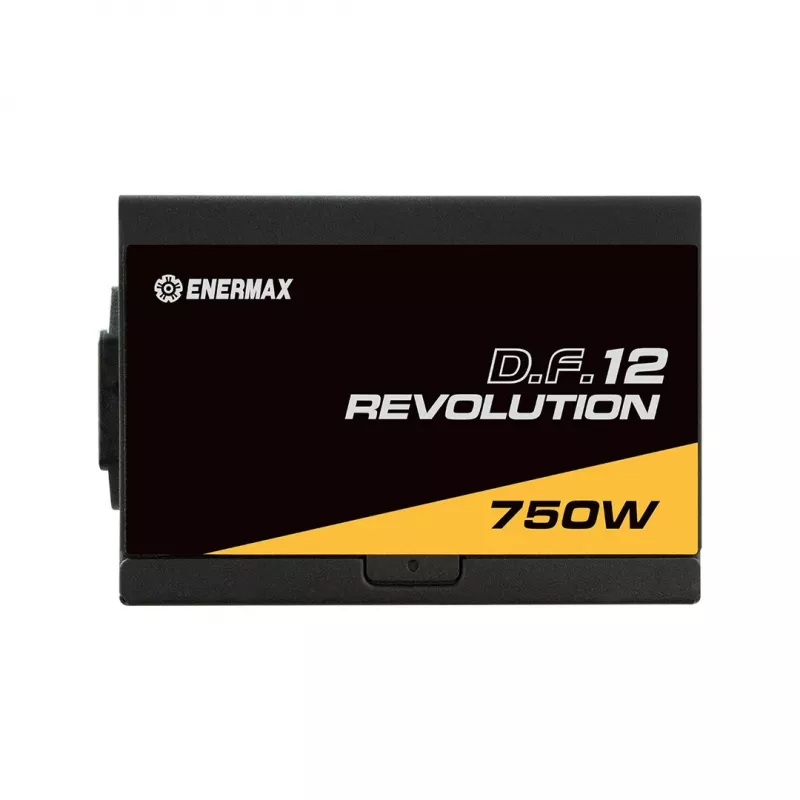

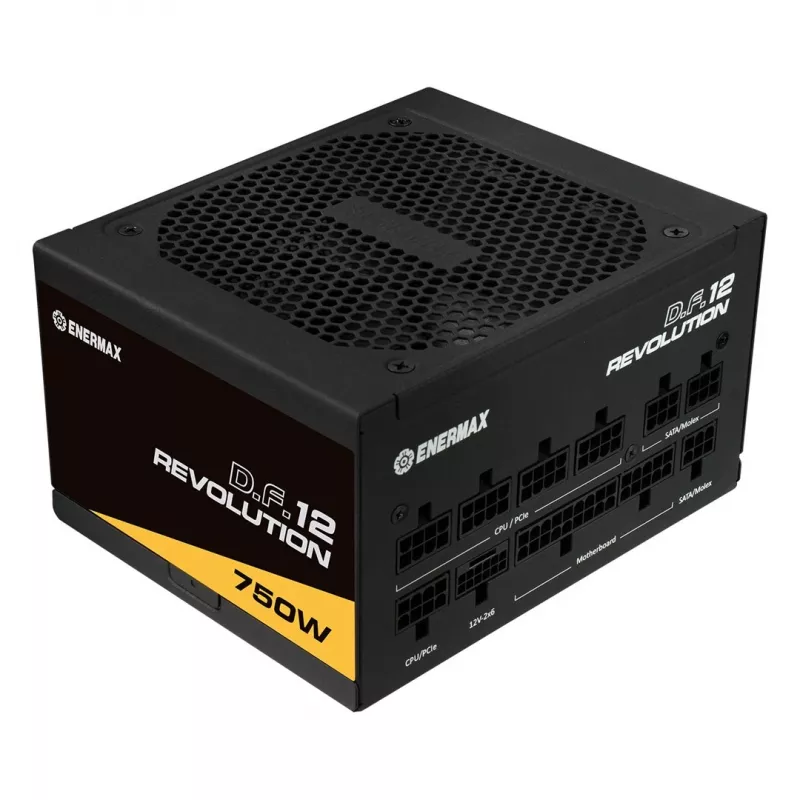

The REVOLUTION D.F. 12 is a compact ATX 3.1 power supply designed for smaller PC builds without sacrificing performance. At just 122 mm depth, it reduces material use and packaging volume while providing a built-in 115 mm PWM fan with dual-ball bearings and a 6-pole motor for reliable cooling.

Advantages

The small form factor allows installation in a wide range of compact cases and creates more room for tidy cable routing. Native support for Intel ATX 3.1 and a 12V-2x6 connector deliver up to 600 W for demanding graphics cards. Upgraded mesh-sleeved cables and a 27-piece cable comb kit simplify cable management. The unit is 80 PLUS Gold certified for high energy efficiency and uses 100% industrial-grade Japanese capacitors for stable performance. Patented Dust-free Rotation (D.F.R.) technology helps reduce dust buildup and extends component life.

Key specifications

• Form factor depth: 122 mm
• Standard: Intel ATX 3.1 compliant

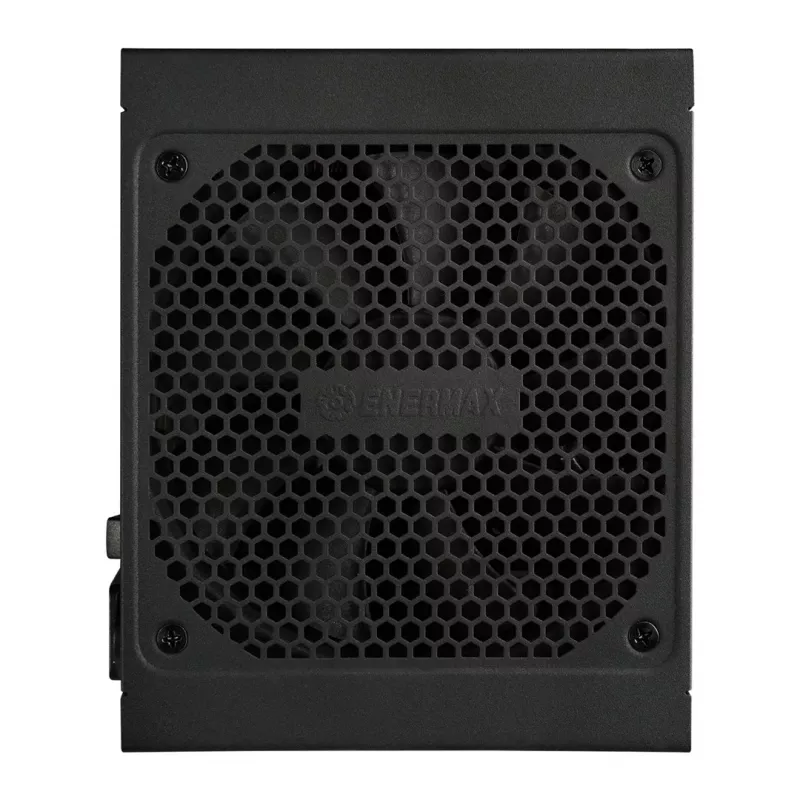

• Fan: 115 mm PWM with dual-ball bearings, 6-pole motor
• Connector: native 12V-2x6 PCIe connector, up to 600 W
• Efficiency: 80 PLUS Gold (over 90% at typical load)
• Power excursion tolerance: up to 235%
• Capacitors: 100% industrial-grade Japanese capacitors
• Cables: premium mesh-sleeved cables; includes 27-piece cable comb kit

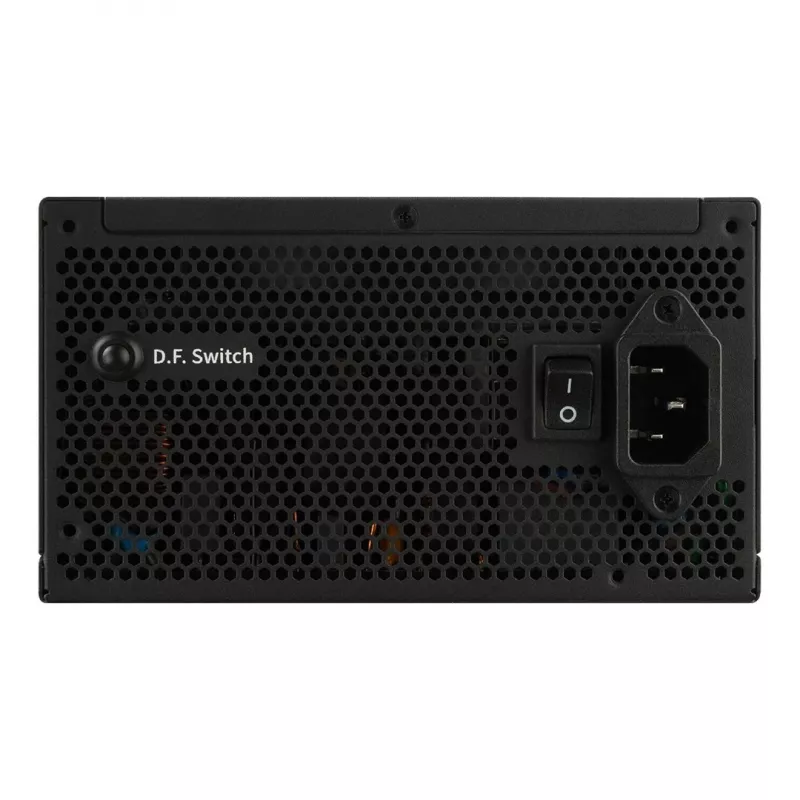

• Special feature: patented Dust-free Rotation (D.F.R.) self-cleaning fan switch

How to use

Install the REVOLUTION D.F. 12 in your PC case following the case manufacturer’s PSU mounting instructions, ensuring the fan orientation allows proper airflow. Connect the native 12V-2x6 PCIe connector to compatible graphics cards and route mesh-sleeved cables using the included cable combs for neat management. Use the D.F.R. switch near the main power switch when needed to activate the fan’s self-cleaning function according to the manual.

Recommendations

Choose a compatible ATX 3.1 case that supports a 122 mm deep PSU to take advantage of the compact size; ensure your graphics card accepts the 12V-2x6 connector or use appropriate adapters only if specified by the manufacturer. Regularly inspect cable routing and the D.F.R. switch position to maintain cooling efficiency and dust control.
