Napájací zdroj INTER-TECH R2A-DV1200-N 1200 W 2U, 80 PLUS Platinum, 100–240 V, 50–60 Hz, sivý

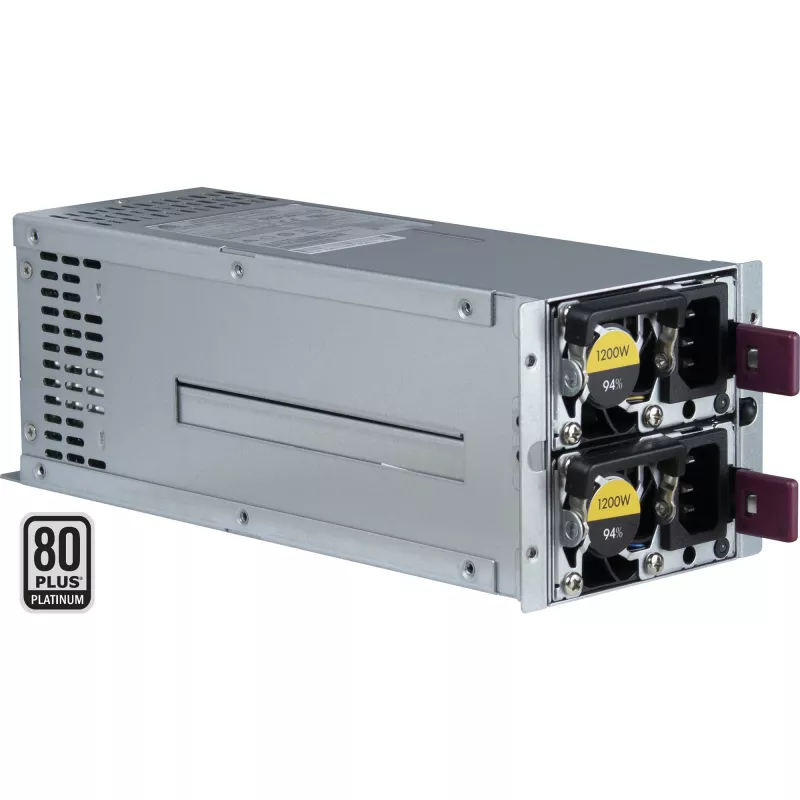

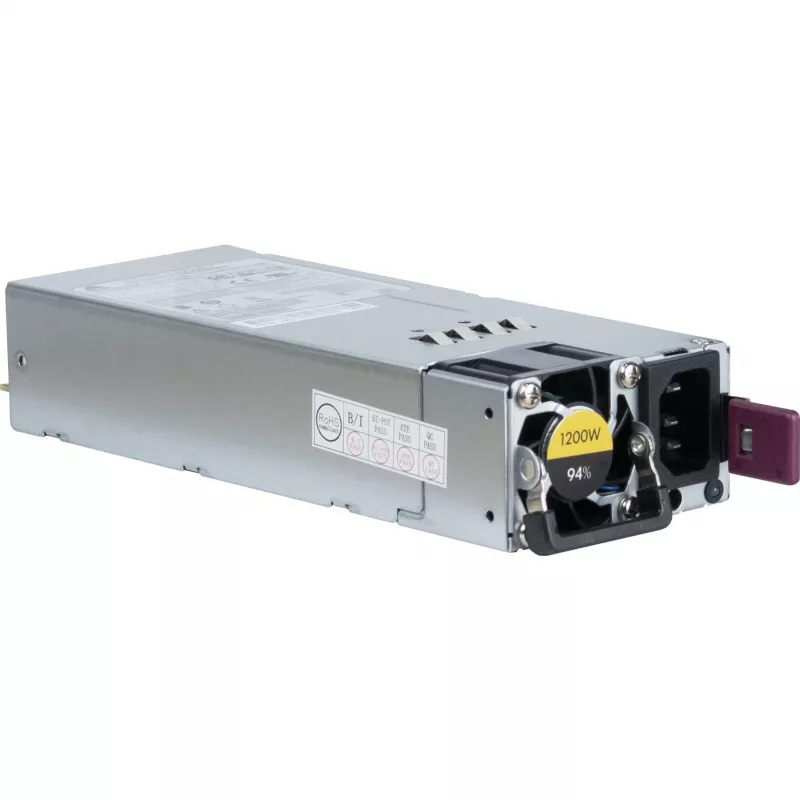

INTER-TECH R2A-DV1200-N is a 1200 W server power supply unit in a 2U form factor, designed for rack-mounted and high-density systems. It accepts AC input from 100–240 V at 50–60 Hz and delivers stable DC power with high efficiency thanks to its 80 PLUS Platinum certification. The unit’s compact grey enclosure (270 × 100 × 84 mm) is intended for professional server environments where space optimization and reliable continuous operation are required.

Advantages

This power supply offers up to 1200 W total output in a compact 2U housing, combining high power density with an efficiency rating that reduces energy loss and heat generation. Broad input voltage compatibility allows deployment in diverse electrical environments without additional converters. The 80 PLUS Platinum certification ensures lower operating costs through improved energy efficiency and reduced cooling requirements. Its mechanical dimensions and standardized form factor simplify integration into existing rack systems and redundant power configurations.

Suitable for

• Rack-mounted servers and blade chassis requiring a 2U power module
• High-density data center racks where efficient power conversion is needed

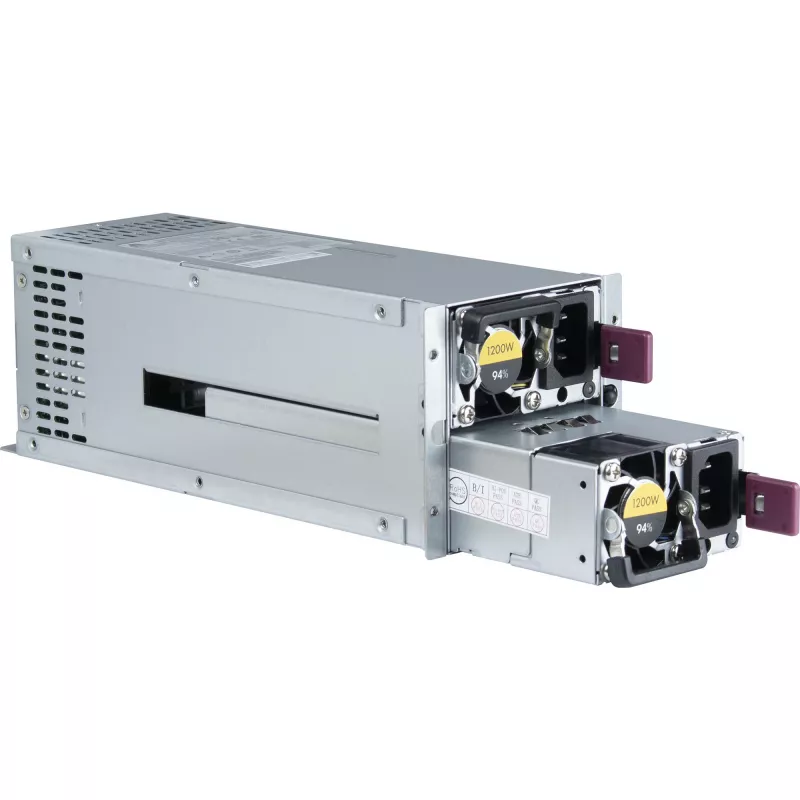

• Redundant power architectures and hot-swap capable systems
• Telecommunications and network equipment with standard AC mains supplies

Key specifications

• Total output power: 1200 W
• Form factor: 2U, compact enclosure
• Input voltage: AC 100–240 V
• Input frequency: 50–60 Hz
• Efficiency rating: 80 PLUS Platinum
• Color and material: grey enclosure, metal chassis
• Dimensions: 270 × 100 × 84 mm

How to use

Install the power supply into a compatible 2U rack or chassis following the server manufacturer’s guidance for securing modules. Connect the AC mains supply within the specified 100–240 V range and confirm the correct frequency (50–60 Hz). Verify secure DC connections to the system power distribution points and ensure proper airflow around the unit to maintain cooling. Perform initial power-on tests and monitor voltage stability and unit temperature during the first operating period.

Recommendations

Place the unit in an environment with adequate ventilation and ambient temperature within the server room specifications. Use appropriate surge protection and ensure redundant configurations where uninterrupted operation is required. Regularly inspect mounting hardware and connectors and follow scheduled maintenance to sustain reliable performance and efficiency.
