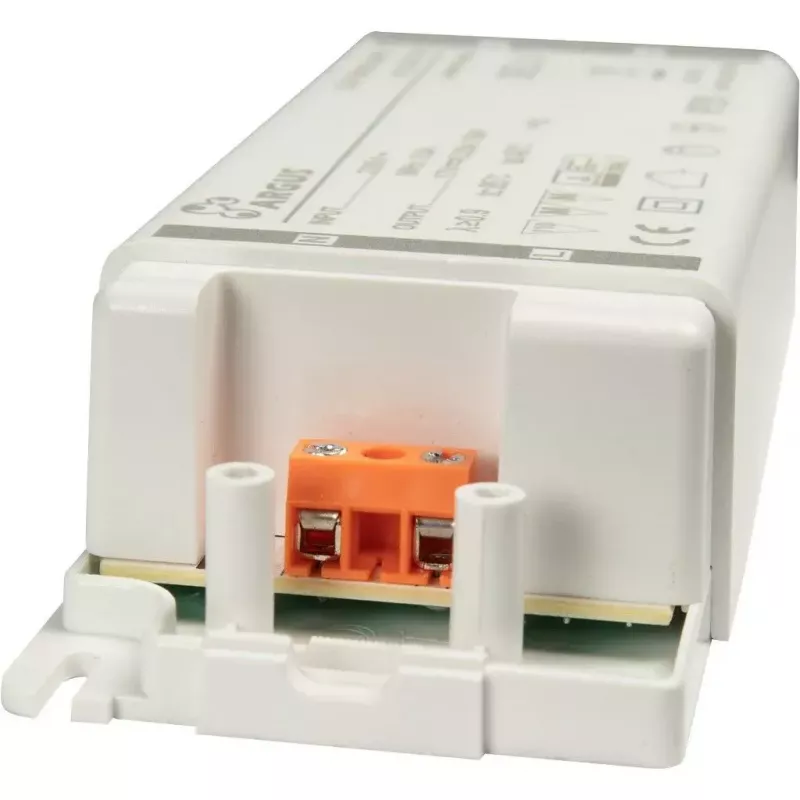

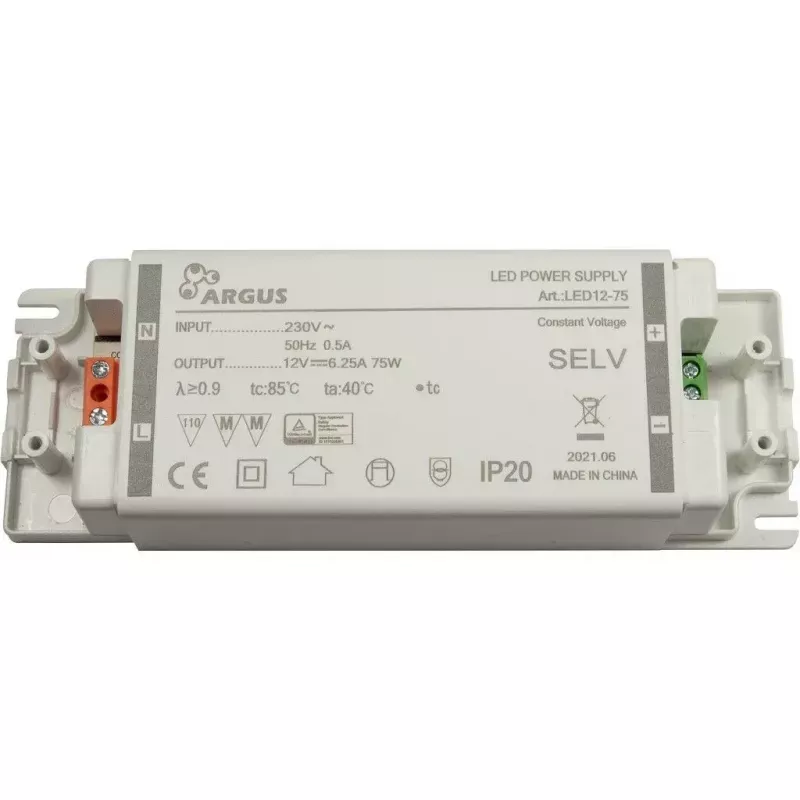

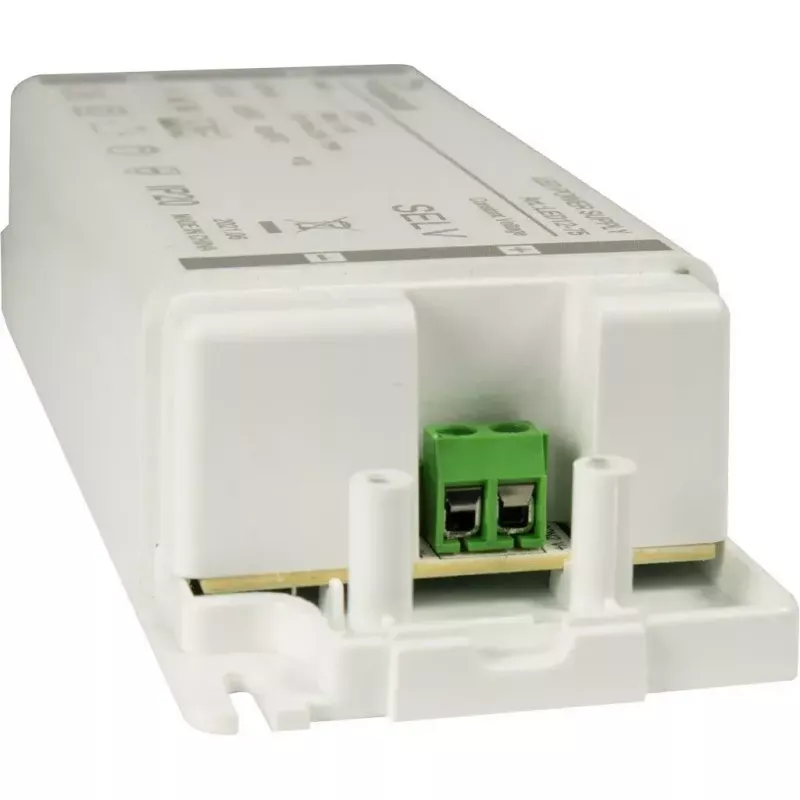

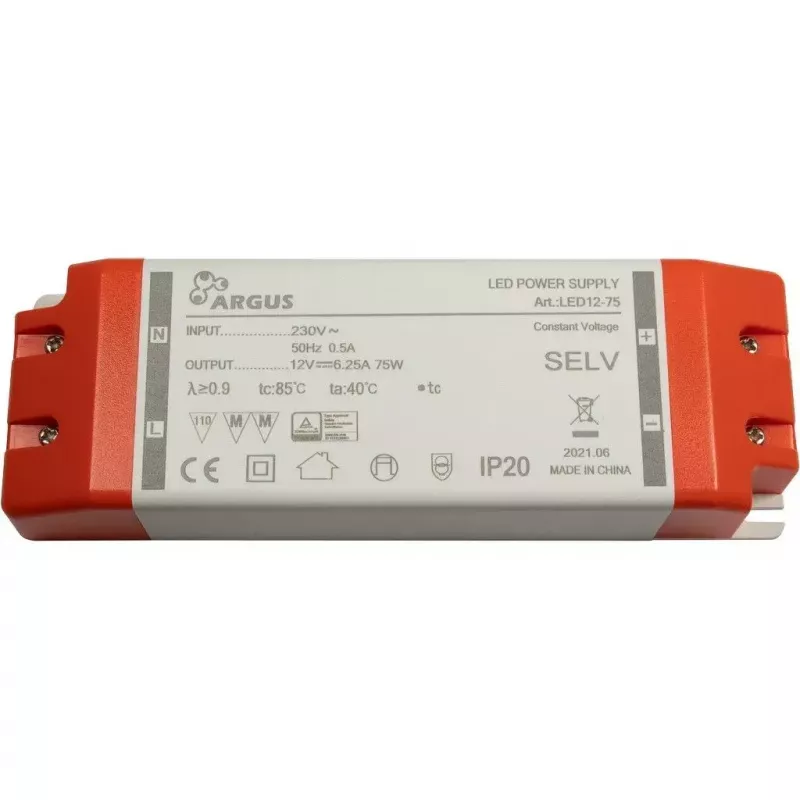

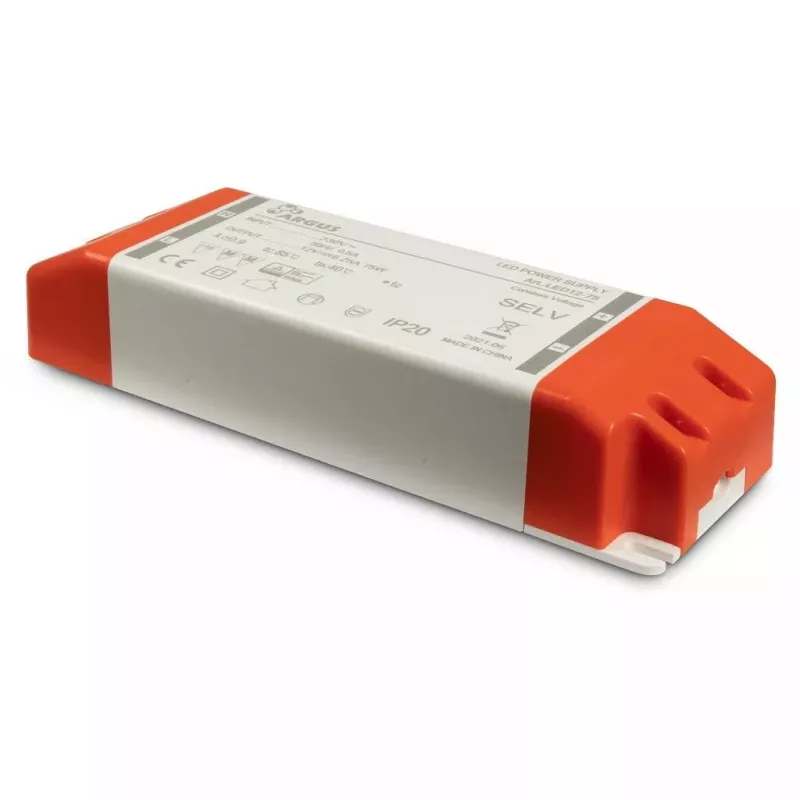

LED driver Inter-Tech LED12-75 75W IP20 100000h

The Inter-Tech LED12-75 is a 75W LED driver providing a stabilized 12V DC output at 6250 mA. Designed for indoor lighting applications, it accepts an AC input of 207–253 V at 50/60 Hz, has a compact 57 × 171 × 31 mm housing, weighs 320 g and carries an IP20 protection rating. The unit features a claimed MTBF of 100,000 hours and includes multiple protections to ensure safe operation.

Advantages

The LED12-75 offers a high continuous output power of 75W in a compact form factor suitable for installation in confined spaces. It includes five protective circuits to guard against common electrical faults and is rated IP20 for indoor use. The specified MTBF of 100,000 hours indicates long operational reliability, while the moderate weight simplifies mounting.

Suitable for

• Indoor LED lighting fixtures
• Strip lights and LED modules requiring 12V/6250mA supply
• Commercial and residential retrofit installations
• Applications where compact, lightweight drivers are needed

Key specifications

• Output: 12 V DC, 6250 mA
• Power: 75 W
• Input voltage: 207–253 V AC
• Frequency: 50/60 Hz
• Protection class: IP20
• MTBF: 100,000 hours (manufacturer statement)
• Dimensions (W×D×H): 57 × 171 × 31 mm
• Weight: 320 g

How to use

Mount the driver in a dry, ventilated indoor location compatible with IP20 rating. Connect the AC input to a suitable 207–253 V AC supply (observe local wiring codes) and connect the 12 V DC output to the LED load ensuring correct polarity. Securely fix the unit using appropriate hardware for the mounting surface and allow sufficient clearance for heat dissipation. Verify load current does not exceed 6250 mA and total connected LED power does not exceed 75 W.

Recommendations

Use the LED12-75 only for indoor installations compatible with IP20. Ensure the connected LED modules match the 12 V output and combined current/power limits. Observe manufacturer guidance for installation and electrical safety; if in doubt consult a qualified electrician.
