Napájací zdroj MEAN WELL GSM60B24-P1J 60W 24V 80-264V

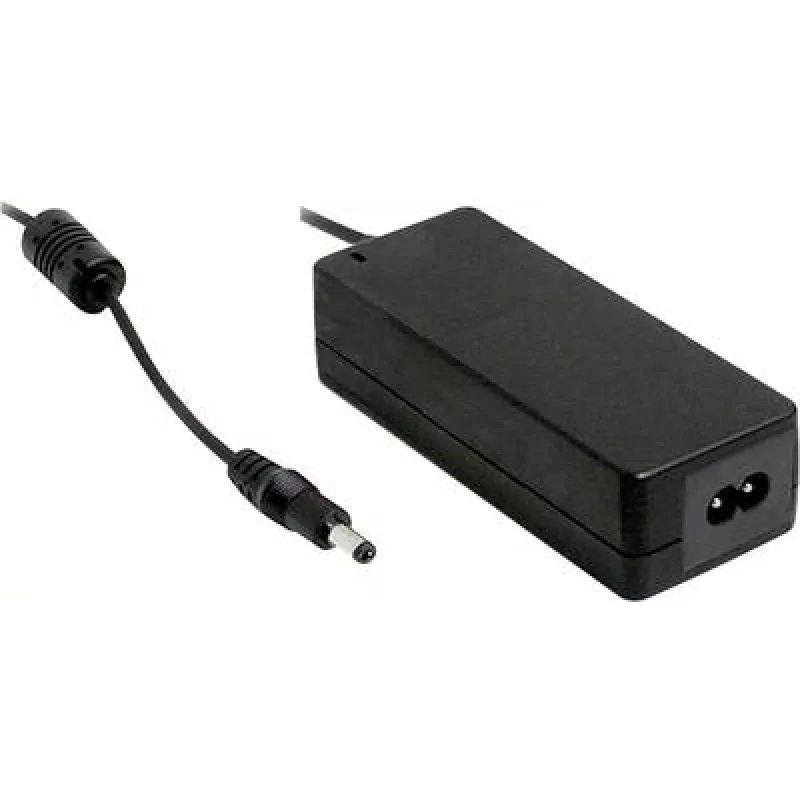

The MEAN WELL GSM60B24-P1J is an AC-DC medical desktop adapter that provides a stable 24V DC output at 2.5A (60W). It accepts a wide input voltage range of 80–264V AC and uses an AC 2-pole IEC320-C8 inlet. The adapter is designed for medical environments and meets EN60601 isolation requirements with 2xMOPP protection. Its compact dimensions (50 mm width × 125 mm depth) and 320 g weight make it suitable for desktop or benchtop use.

Advantages

The adapter delivers regulated 24V/2.5A output with 60W power in a compact housing, ensuring reliable operation across a wide input voltage range (80–264V). Compliance with EN60601 and provision of 2xMOPP isolation make it suitable for medical applications. RoHS compliance reduces environmental impact. The IEC320-C8 inlet allows easy connection with standard AC cords.

Suitable for

• Medical desktop equipment requiring reinforced isolation
• Laboratory instruments and benchtop devices
• Embedded systems and industrial control units needing 24V DC

Key specifications

• Model: MEAN WELL GSM60B24-P1J (MPN: GSM60B24-P1J)
• Output: 24V DC, 2.5A (60W)
• Input: 80–264V AC
• Inlet: AC 2-pole IEC320-C8
• Medical approval: EN60601 with 2xMOPP isolation
• Dimensions: 50 mm (W) × 125 mm (D)
• Weight: 320 g
• Compliance: RoHS
• EAN: 4021087036757

How to use

Connect the adapter to the AC mains using a compatible IEC320-C8 power cord. Verify the input voltage is within the specified 80–264V AC range before powering on. Connect the 24V DC output to the device requiring power, observing correct polarity. Place the adapter on a stable, well-ventilated surface and avoid covering ventilation openings. For medical use, ensure installation complies with applicable safety standards and the device manufacturer’s instructions.
