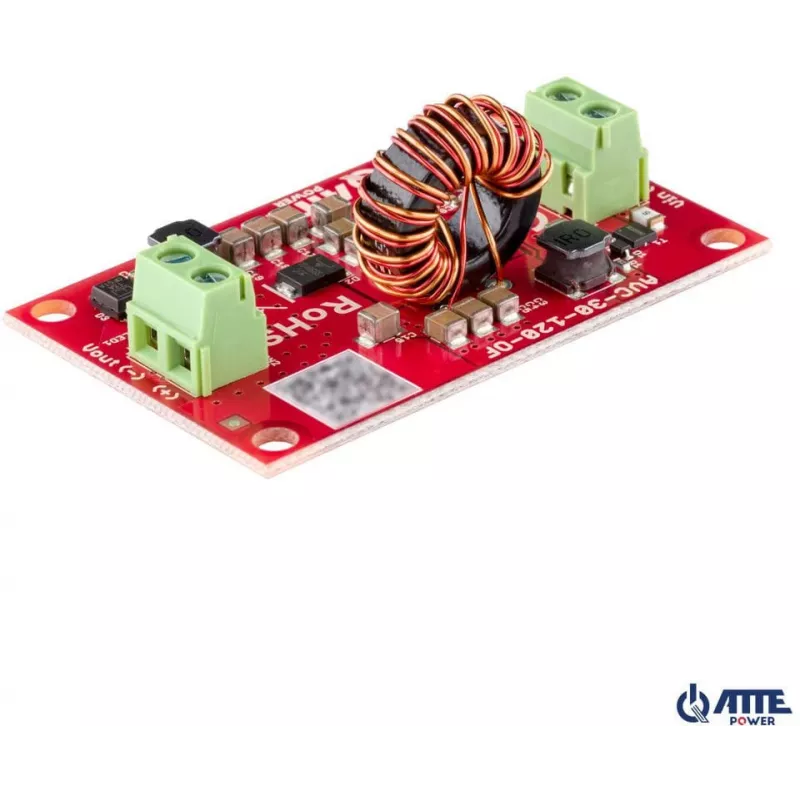

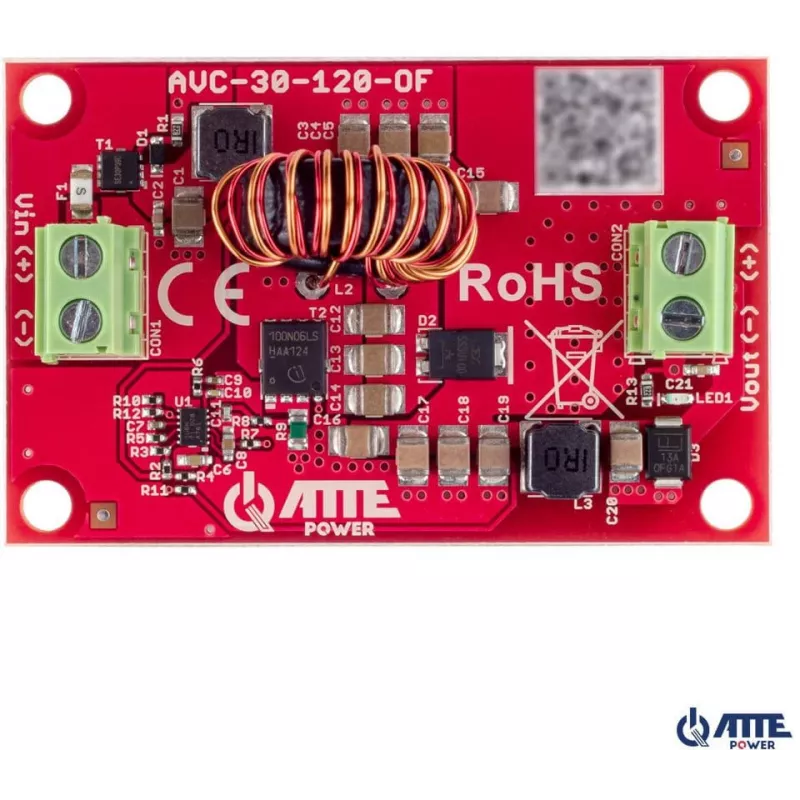

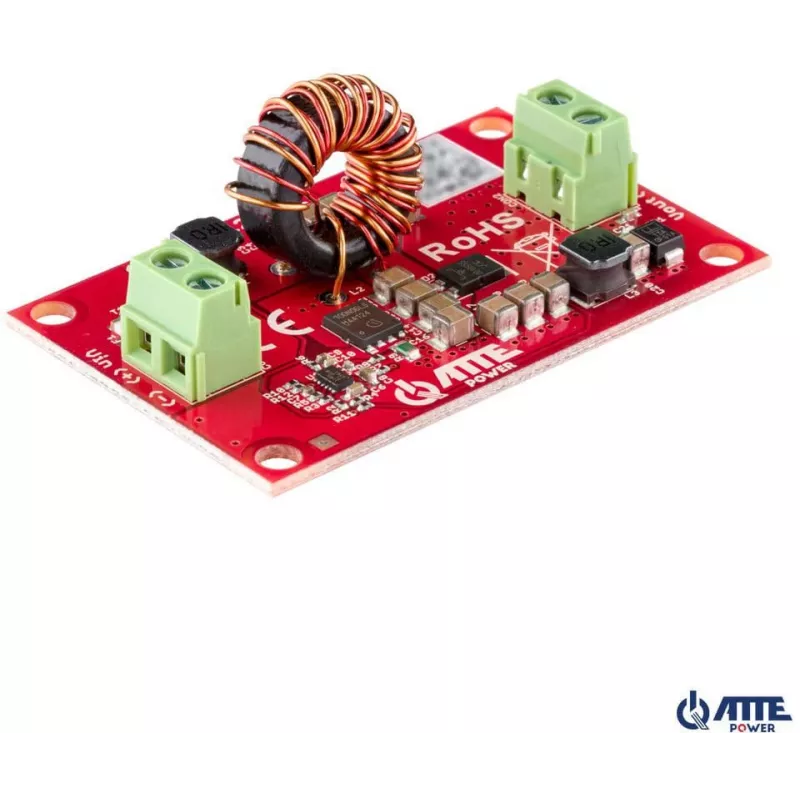

ATTE DC/DC menič AVC-30-120-OF z 24V na 12V 30A 360W znižujúci menič

The ATTE DC/DC Inverter AVC-30-120-OF is a step-down converter with a 10–30 VDC input and a 12 VDC output. It delivers up to 30 W at 12 V with 90% efficiency at 12 V input and 30 W output.

Key features

• Input voltage: 10–30 VDC
• Output voltage: 12 VDC ±5%
• Output power: 30 W @ 12 V
• Efficiency: 90% @ Vin=12 V, Pout=30 W
• No-load current: 5 mA @ 12 V
• Short-circuit protection at 3 A output
• Operating temperature range: -25°C to +50°C
• Dimensions (W x H x D): 40 x 60 x 24 mm
• Weight: 0.025 kg
• Housing design: module for installation
• Mounting: snap-on spacer bolts, mounting holes at 10.8 mm pitch

Specifications

• Brand: ATTE
• MPN: AVC-30-120-OF
• Input voltage: 10–30 VDC
• Output voltage: 12 VDC ±5%
• Output power: 30 W @ 12 V
• Efficiency: 90% @ Vin=12 V, Pout=30 W
• No-load current: 5 mA @ 12 V
• Short-circuit protection: 3 A output
• Operating temperature: -25°C to +50°C
• Dimensions (W x H x D): 40 x 60 x 24 mm
• Weight: 0.025 kg
• Housing design: module for installation
• Mounting: snap-on spacer bolts, mounting holes at 10.8 mm pitch
