Napájací zdroj MEAN WELL NDR-480-24

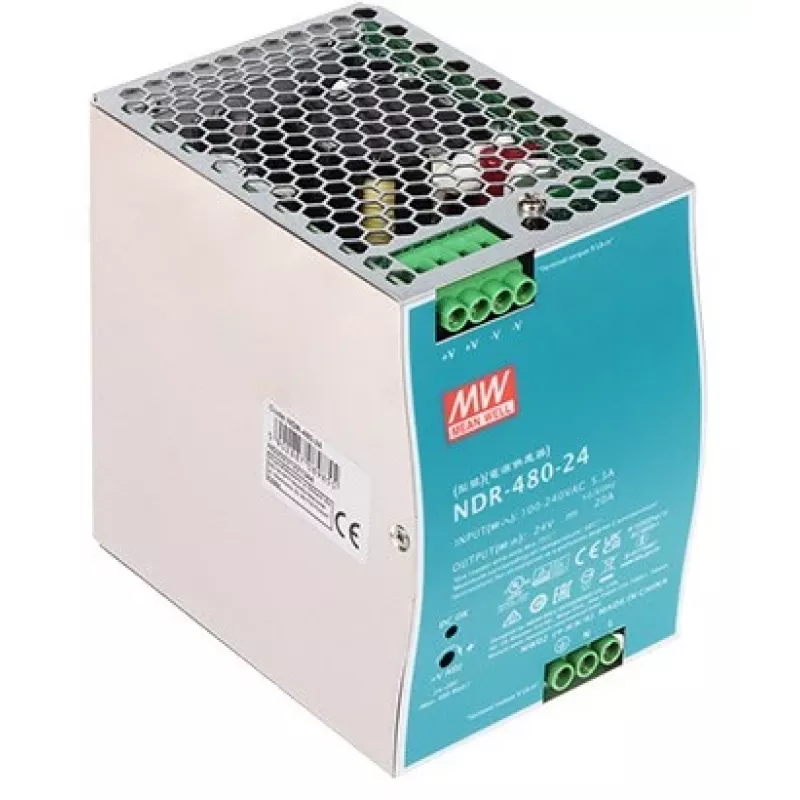

The MEAN WELL NDR-480-24 is an industrial AC-DC single-output DIN-rail power supply that provides 24 VDC at 20 A (480 W). Housed in a metal case and compliant with RoHS, it accepts a wide input voltage range of 90–264 VAC and features compact dimensions (85.5 mm W × 128.5 mm D × 125.2 mm H). Each pack contains 8 units.

Advantages

The DIN-rail design enables straightforward installation in control cabinets and industrial enclosures. A metal housing offers mechanical protection and heat dissipation. Wide input voltage range ensures compatibility with global mains supplies and reduces the need for additional input conditioning. RoHS compliance indicates the product meets restricted substance regulations.

Suitable for

• Industrial control panels and automation systems
• PLC and field device power supply
• Machine builders and OEM equipment
• Distribution on DIN rails in switchgear and cabinets

Key specifications

• Model: MEAN WELL NDR-480-24 (MPN: NDR-480-24)
• Output: 24 V DC, 20 A, 480 W
• Input voltage: 90–264 V AC
• Case: metal
• Mounting: DIN rail
• Compliance: RoHS
• Dimensions: 85.5 × 128.5 × 125.2 mm (W × D × H)
• Pack quantity: 8 units

How to use

Mount the power supply on a standard DIN rail inside a suitable enclosure. Connect the AC input to the L, N (and earth) terminals according to local wiring regulations and connect the 24 V DC output to the load using appropriate gauge wiring. Verify input voltage range before powering on. Ensure adequate ventilation and secure mechanical connections. Follow the manufacturer wiring diagrams and safety instructions when integrating into a system.

Recommendations

For reliable operation, place the unit in an environment within the manufacturer's recommended temperature and humidity ranges, avoid obstructing airflow around the metal case, and protect the input and output connections from moisture and contamination. Use proper overcurrent protection on the output and a dedicated circuit on the AC input where required.
