Napájací zdroj Phanteks Revolt 1000 W

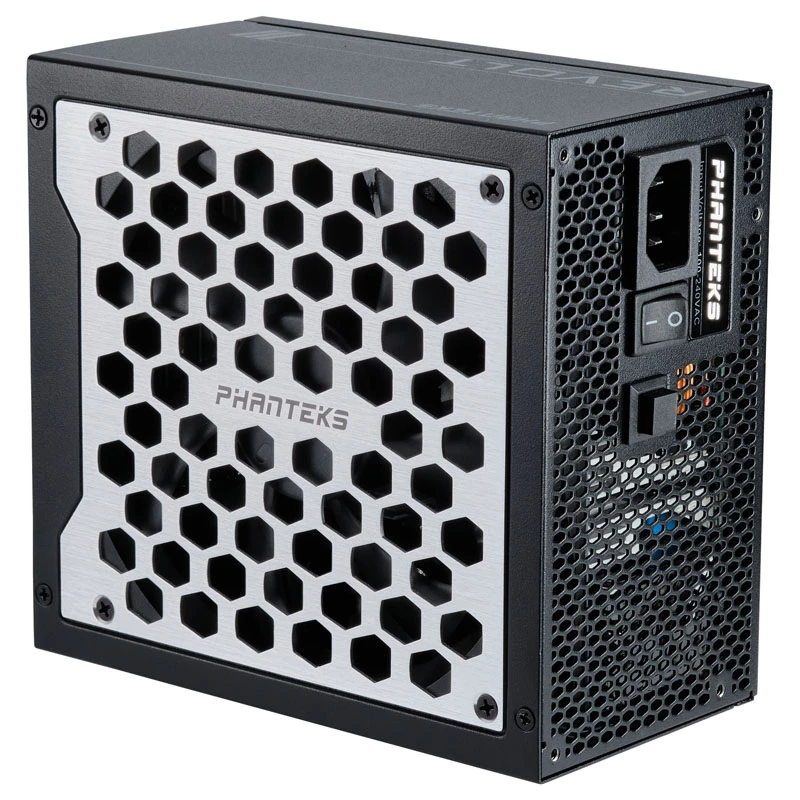

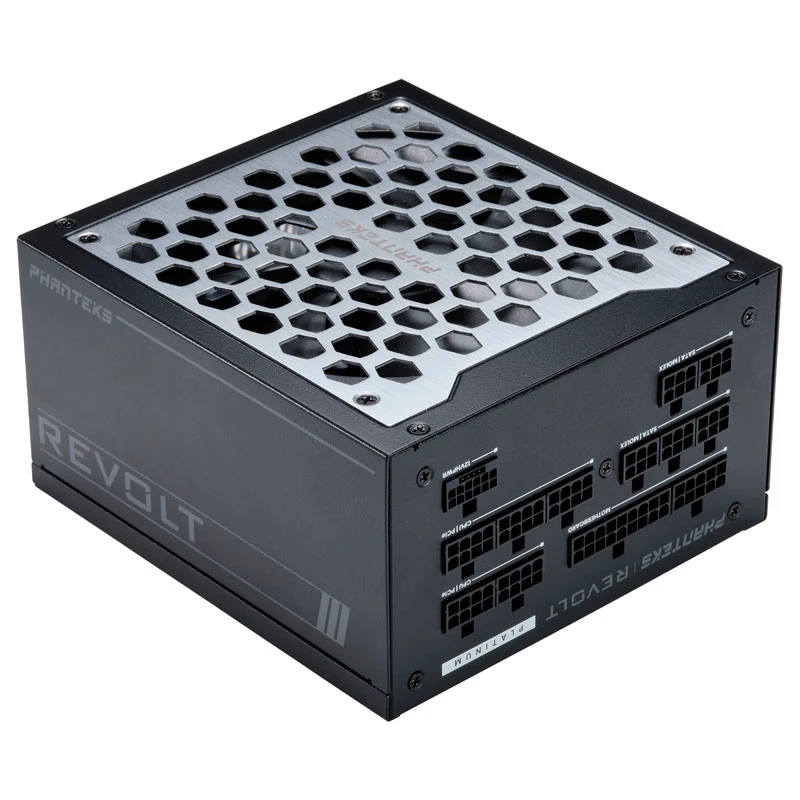

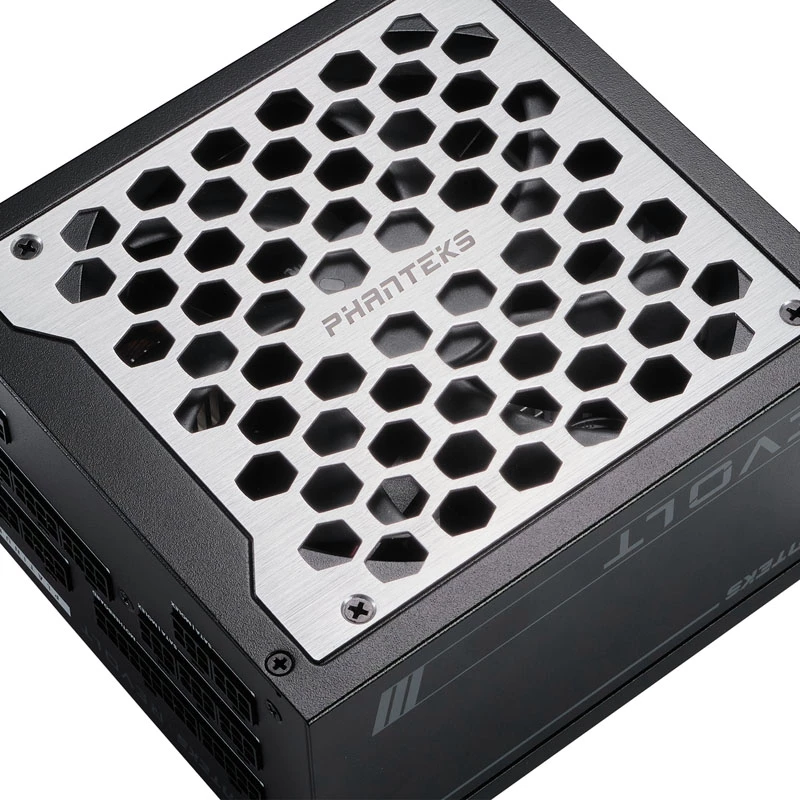

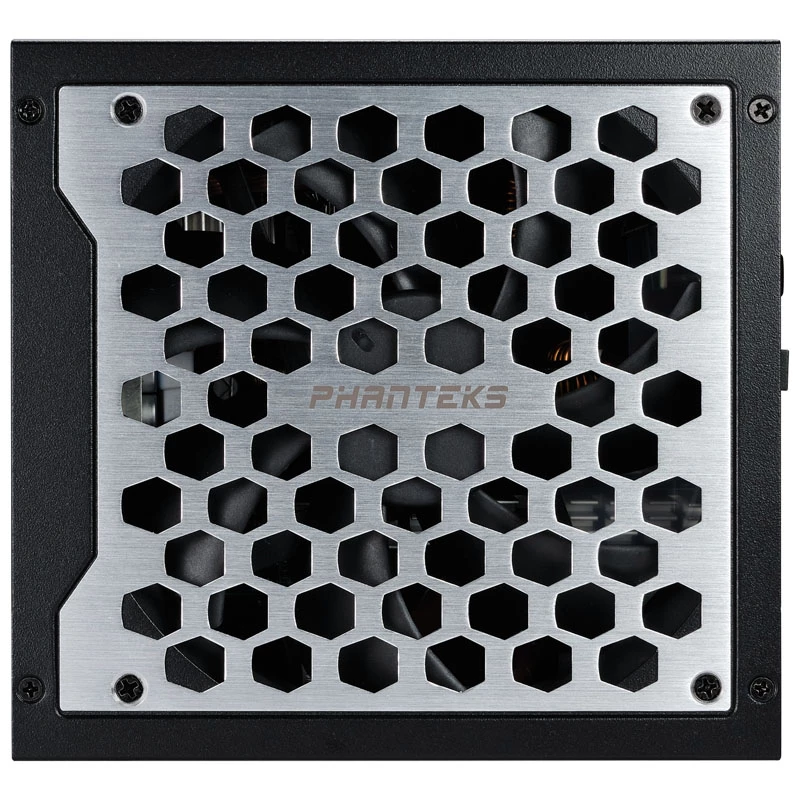

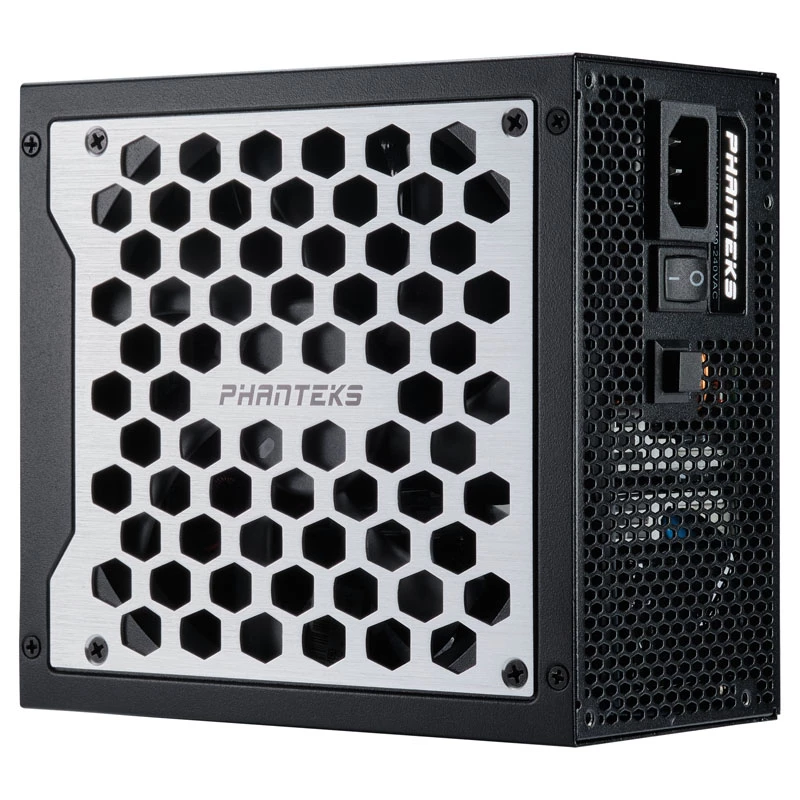

The Phanteks Revolt 1000 W power supply unit provides 1000 W of continuous power for high-performance desktop PCs. Built in collaboration with Seasonic, this ATX-format PSU meets and exceeds modern power delivery standards and fully supports Intel ATX 3.0 specifications. The unit is offered in a fully modular form factor to accommodate custom cable solutions and reduce unused cabling. Its 80 PLUS Platinum efficiency rating and active cooling with a 135 mm fan contribute to stable operation under sustained loads. Physical dimensions are 160 mm (W) x 150 mm (D) x 86 mm (H) and the housing is finished in black.

Advantages

The Revolt 1000 W combines high efficiency and modular design to improve system airflow and cable management while reducing energy losses. Its 80 PLUS Platinum certification ensures lower heat generation and improved electrical efficiency compared to lower-certified units. Collaboration with an established OEM ensures reliable internal components and compliance with current ATX 3.0 power delivery requirements. The compact ATX size and 135 mm fan provide a balance between cooling performance and noise control during typical desktop and gaming workloads.

Suitable for

• High-performance gaming PCs requiring stable 12V rails and full ATX 3.0 support
• Custom builds using third-party custom cables or CableMod-style sleeved cables
• Workstations with multiple high-draw components such as GPUs and storage arrays
• Users seeking a fully modular PSU to optimize cable routing and airflow

Key specifications

• Total output power: 1000 W
• AC input voltage range: 100–240 V
• Frequency: 50/60 Hz
• Efficiency certification: 80 PLUS Platinum
• Cooling: active, with 135 mm fan
• Form factor: ATX
• Colour: black
• Dimensions: 160 mm (W) x 150 mm (D) x 86 mm (H)
• Weight: 2.05 kg

How to use

Install the Phanteks Revolt 1000 W into a standard ATX PSU bay according to your case manufacturer's instructions. Because the unit is fully modular and designed for custom cable solutions, attach only the required cables for your system: main motherboard 24-pin, CPU 8-pin(s), PCIe connectors for GPUs, and SATA/Molex for drives as needed. Ensure proper orientation of connectors and secure all connections firmly. Connect the AC power cable to a suitable mains outlet within the stated input range and verify grounding. After assembly, power on the system and monitor voltages and temperatures during initial operation to confirm stable performance.

Recommendations

Use the Revolt 1000 W with high-quality custom cables from reputable vendors if you require a sleeve or aesthetic customization. Maintain adequate case airflow and keep dust filters clean to preserve cooling efficiency. For multiple high-power GPUs or extreme overclocking, verify headroom and consider higher-wattage Revolt models if necessary.
