Napájací zdroj Synology PSU 250W_3 250 W 24-pin ATX sivý

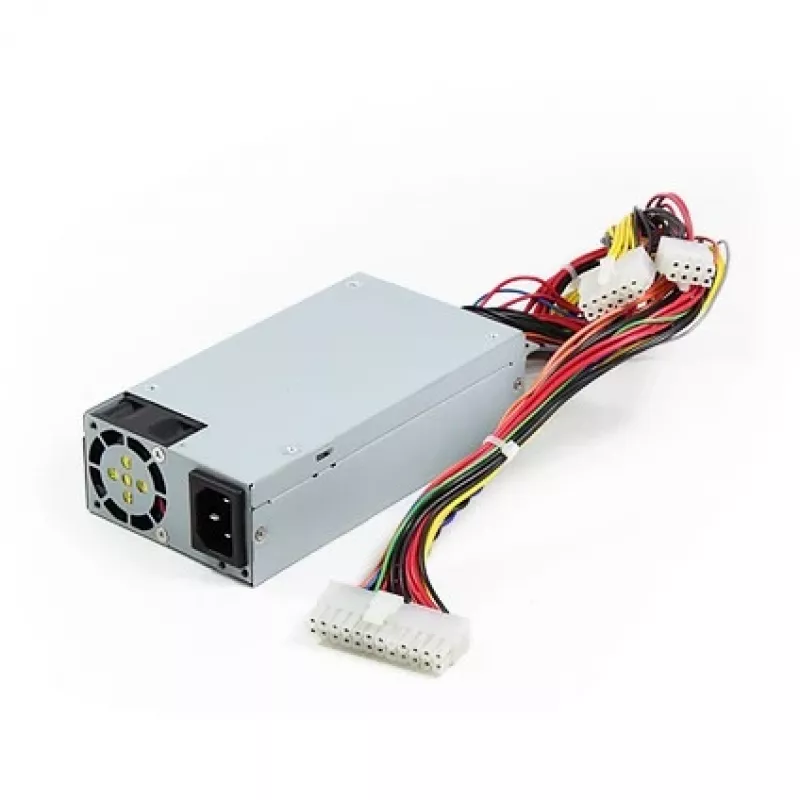

The Synology PSU 250W_3 is a compact 250 W power supply unit designed for Synology server models. It provides a 24-pin ATX motherboard power connector and comes with fixed (non-modular) cabling. The unit is finished in grey and its dimensions (155 × 81 × 41 mm) and weight (0.73 kg) make it suitable for installation in compatible Synology systems.

Advantages

This Synology PSU delivers a rated 250 W output in a small form factor suitable for rack or tower NAS enclosures. The 24-pin ATX connector ensures compatibility with supported Synology mainboards, while the non-modular design provides a straightforward replacement unit with minimal installation steps. Its compact dimensions and light weight simplify fitting into the listed models without requiring additional mounting hardware.

Suitable for

• Synology DS1513+
• Synology DS1515+
• Synology DS1813+
• Synology DS1815+
• Synology DS2015xs
• Synology RS815+

Key specifications

• Rated power: 250 W
• Motherboard connector: 24-pin ATX
• Cabling type: Non-modular (fixed)
• Colour: Grey
• Dimensions (W × D × H): 155 × 81 × 41 mm
• Weight: 0.73 kg
• Brand: Synology
• MPN: PSU 250W_3
• EAN: 0846504009336

How to use

Power off the Synology device and disconnect it from the mains before attempting replacement. Remove the existing power supply following the device manufacturer’s instructions, install the Synology PSU 250W_3 in the same mounting position, and connect the 24-pin ATX connector securely to the motherboard. Reconnect mains power and power on the device to verify normal operation.

Recommendations

Use this unit only in compatible Synology models listed above and replace like-for-like. Ensure the device is powered off and unplugged before installation. If unsure about compatibility or installation, consult Synology support or a qualified technician.
