Nástavec na odsávanie prachu Bosch GDE 162 Professional

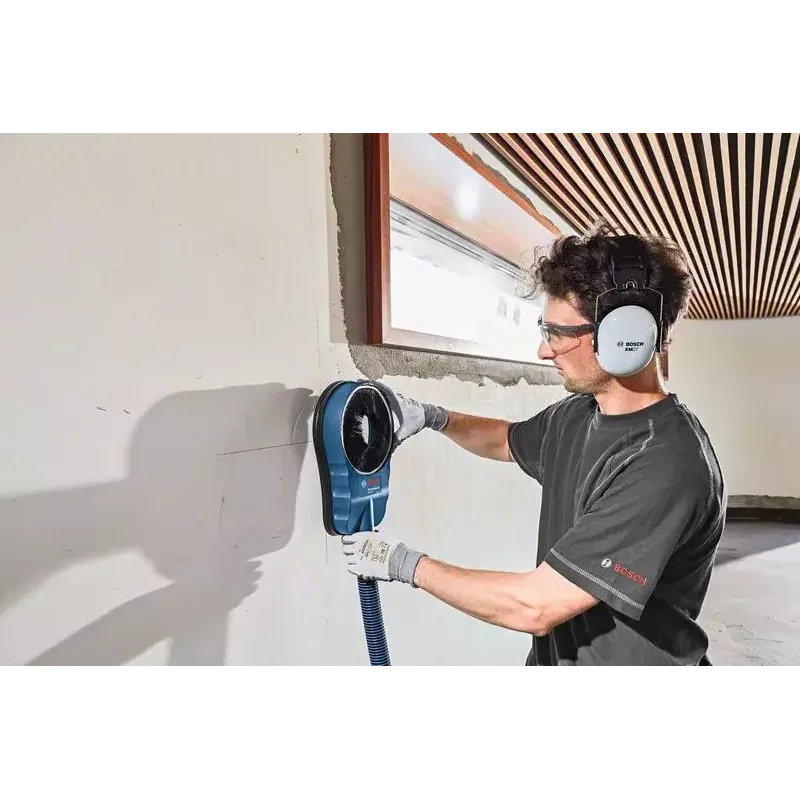

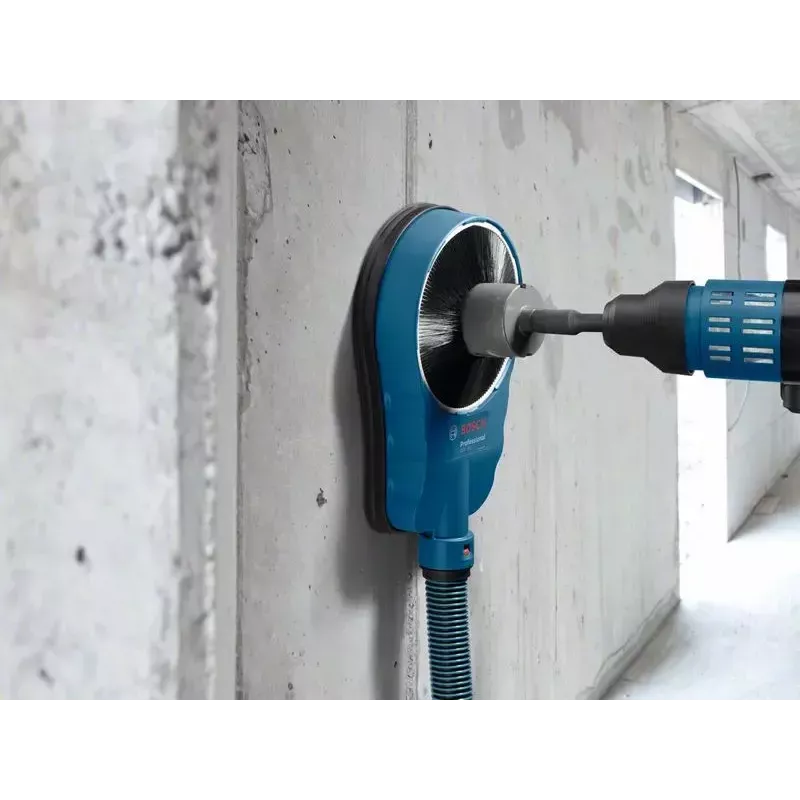

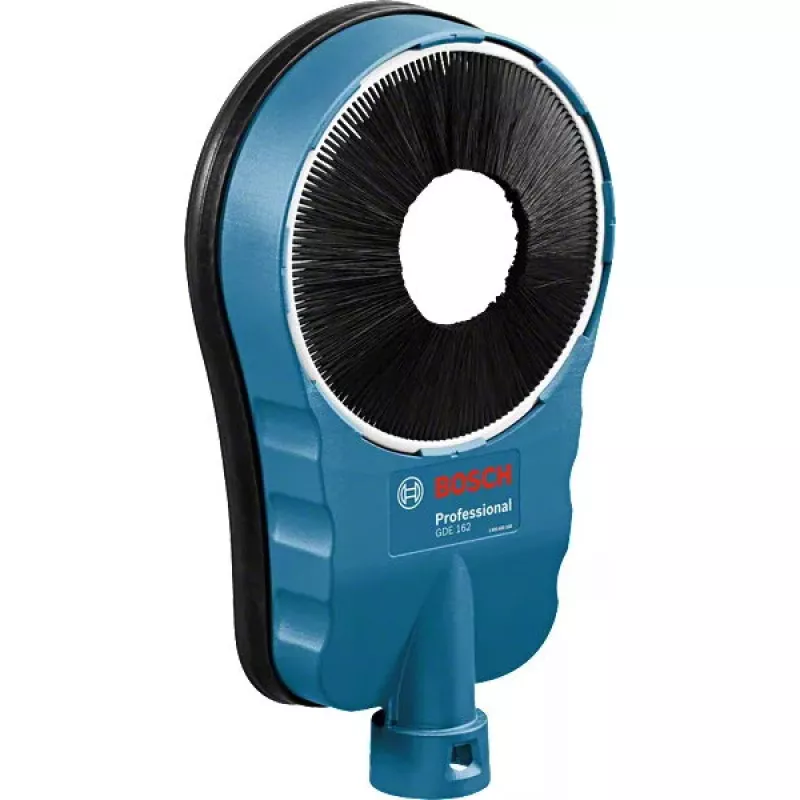

The Bosch GDE 162 Professional dust extraction attachment is a universal accessory for core drilling up to 162 mm diameter. Designed for use with Bosch rotary hammers (compatible with GBH 4-32 DFR, GBH 5-40 DCE and GBH 8-45 DV), this lightweight 500 g unit connects to the Bosch Click & Clean system to capture dust at the drilling point, helping to keep the work area cleaner and improving visibility and user safety. The attachment is suitable for dry and wet use and can be fixed directly to walls for stable operation.

Advantages

The GDE 162 provides effective dust capture at the source to reduce post-work cleaning and airborne dust. Its compact and lightweight design makes it easy to handle and reposition. Quick and simple mounting on walls and adaptability to different working positions increase flexibility on site. Compatibility with the Bosch Click & Clean system allows direct connection to Bosch dust extractors for continuous dust removal.

Suitable for

• Core drilling of large diameters up to 162 mm
• Dry and wet drilling applications
• Use with compatible Bosch rotary hammers (GBH 4-32 DFR, GBH 5-40 DCE, GBH 8-45 DV)
• Work requiring reduced cleanup and better site visibility

Key specifications

• Compatible models: GBH 4-32 DFR, GBH 5-40 DCE, GBH 8-45 DV
• Maximum core drill diameter: 162 mm
• Weight: approx. 500 g
• Connection system: Bosch Click & Clean
• Package dimensions (W × D): 202 × 335 mm
• MPN: 1600A001G8, EAN: 3165140760614

How to use

Attach the GDE 162 to the rotary hammer according to the tool manufacturer’s instructions and connect it to a compatible Bosch dust extractor via the Click & Clean interface. Position and fix the attachment against the wall or surface around the drill point to form a dust-sealing area. Operate the rotary hammer and extractor together so dust is captured at the source during drilling. For wet drilling, ensure the extractor and attachment are set up according to safety instructions for wet use.

Recommendations

Use the GDE 162 with a suitable Bosch dust extractor and follow the rotary hammer’s safety and operating instructions. Check compatibility with your rotary hammer model before use and secure the attachment firmly to the surface to ensure effective dust capture.
