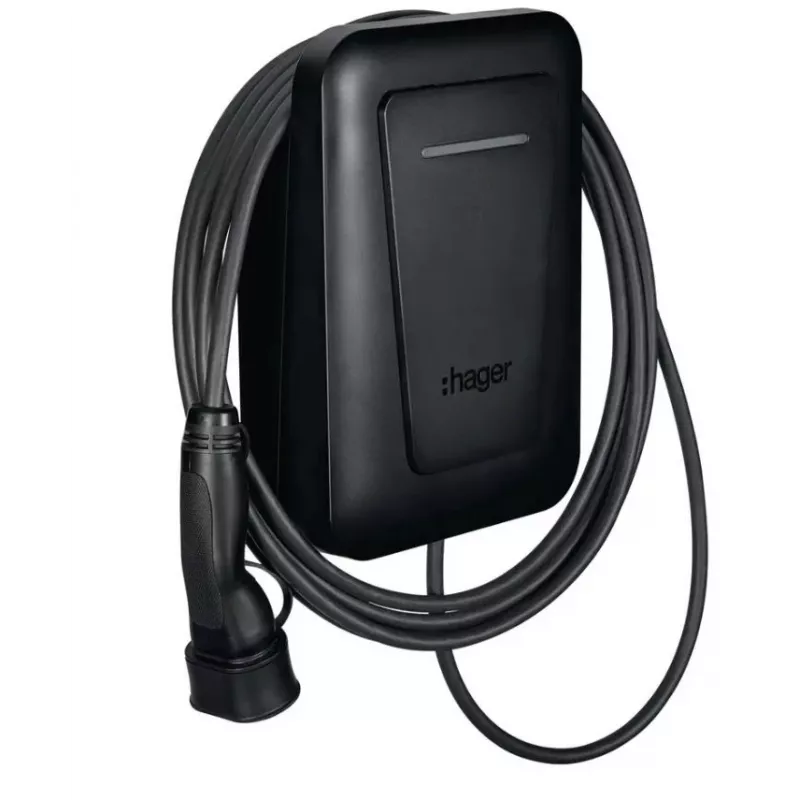

Nástenná nabíjacia stanica pre EV Hager witty one 11 kW 3-fázová s RFID, Bluetooth a 4,5 m káblom Type-2

Hager witty one is a compact, wall-mounted EV charging station delivering up to 11 kW (three-phase, nominal input 400 V) for domestic and light commercial use. The unit integrates RFID and Bluetooth for user authentication and local control, and comes with a permanently attached 4.5 m Type 2 cable in black. The enclosure is made of impact-resistant plastic with IP54 and IK10 ratings and includes built-in safety functions such as overcurrent and overvoltage protection and DC leakage detection (6 mA DC). The charging station supports IT grounding systems and can be mounted on a wall using the supplied bracket or installed on an optional pedestal.

Advantages

This Hager charging station combines three-phase 11 kW charging capability with simple user access via RFID and Bluetooth, enabling controlled use in shared environments. A tethered 4.5 m Type 2 cable ensures compatibility with most electric vehicles without needing an additional cable. The IP54 / IK10 plastic housing provides protection against dust, splashing water and mechanical impact while keeping the unit lightweight for straightforward installation. Integrated overcurrent, overvoltage protection and DC leakage detection increase electrical safety and help comply with installation requirements.

Suitable for

Key specifications

How to use

Mount the charging station on a suitable wall bracket or install it on an optional pedestal following local electrical codes and the manufacturer’s installation instructions. Connect the unit to a three-phase 400 V supply and complete protective earth and grounding connections as required. Authenticate a user via the integrated RFID or pair a device via Bluetooth if local control is needed, then plug the Type 2 connector into the vehicle charging inlet to start charging. Monitor charging status through the station indicators or the connected app where available. Always disconnect mains power before any maintenance or servicing.

Recommendations

Install the unit in a location protected from direct exposure to severe weather when possible, ensure the mounting surface and electrical supply match the charger’s weight and electrical specifications, and follow all local regulations for EV charger installation. Regularly inspect the tethered Type 2 cable and connector for wear and clean the enclosure with a damp cloth; do not use abrasive agents or spray water directly into connectors. For safety, disconnect the power supply before servicing.
