Nástenná skriňa Digitus DN-19 16-U-3

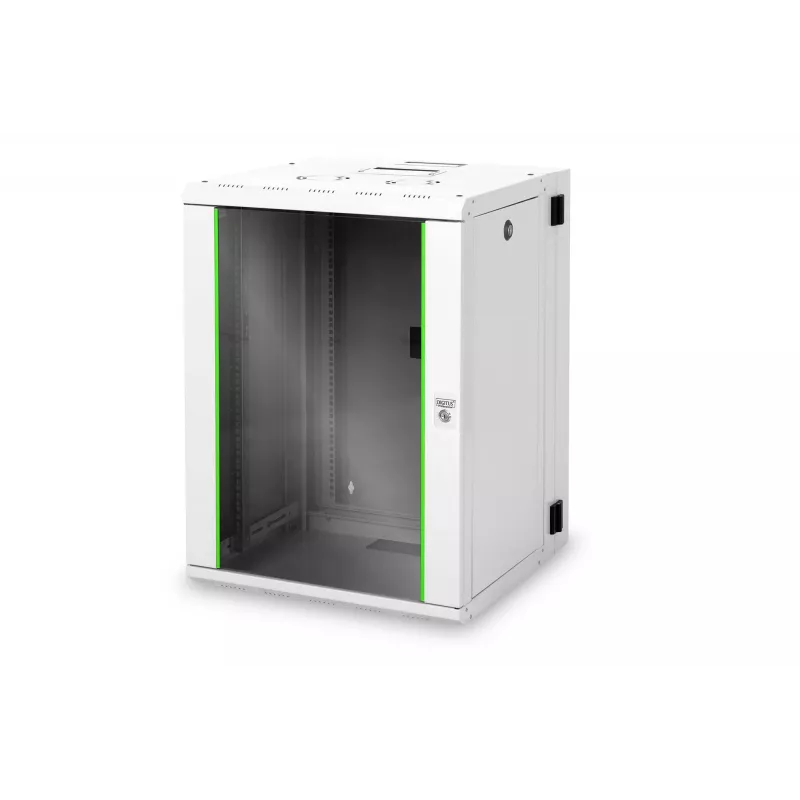

The DIGITUS Unique Series wall-mounted rack DN-19 16-U-3 is a 16U network cabinet designed in Germany for reliable IT infrastructure installations. Constructed from up to 1.5 mm sheet steel with electrostatic powder coating in grey (RAL 7035), this cabinet supports a maximum load of 80 kg and offers IP20 protection. The cabinet features a lockable safety-glass front door with changeable hinge direction, removable and lockable side panels, adjustable 483 mm (19") galvanized profile rails with RU markings, and pre-cut cable inlets with seals for neat cable management.

Advantages

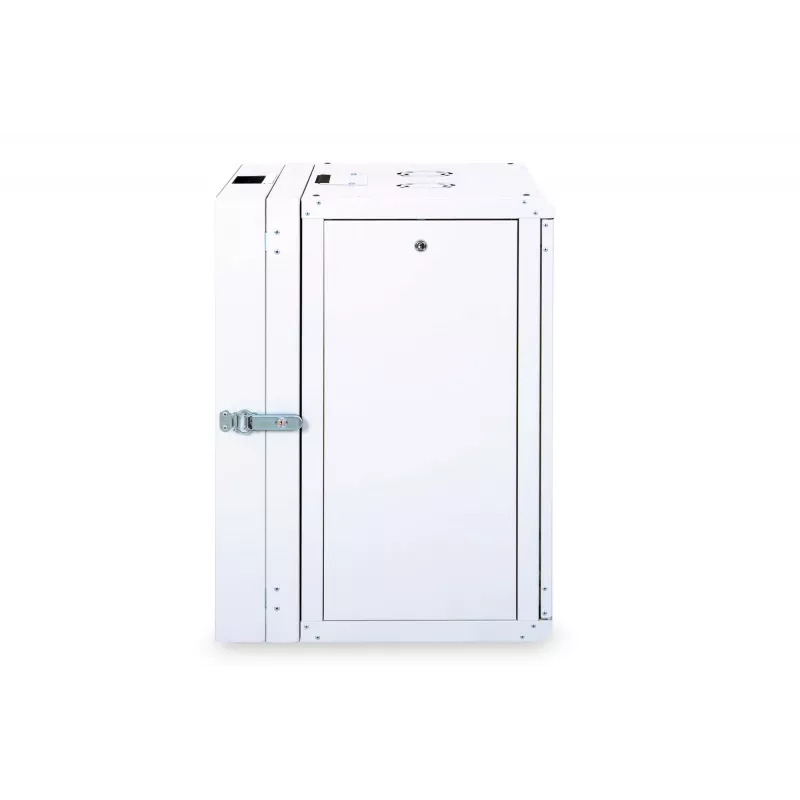

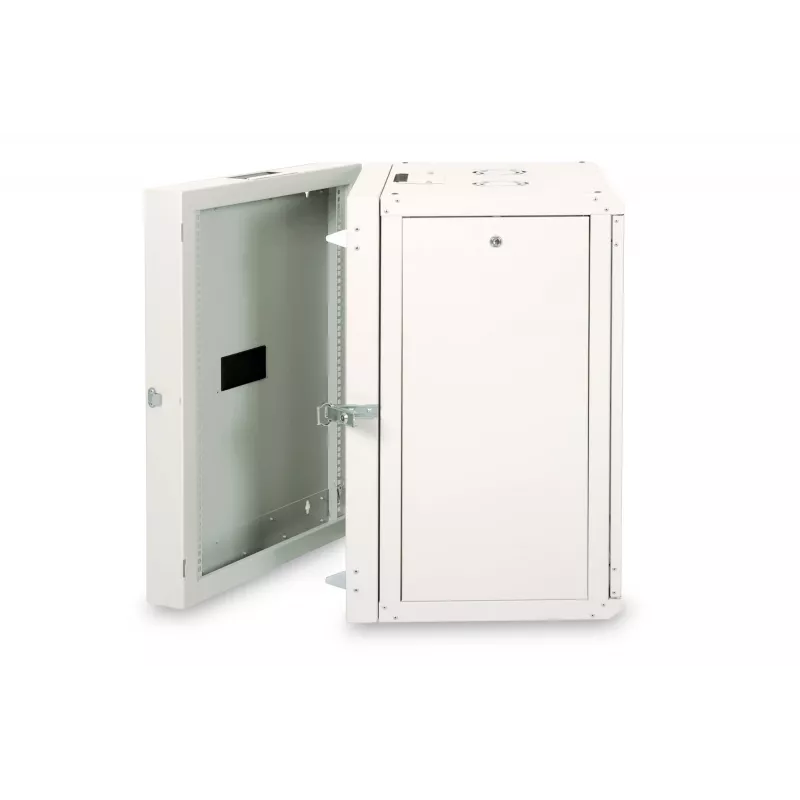

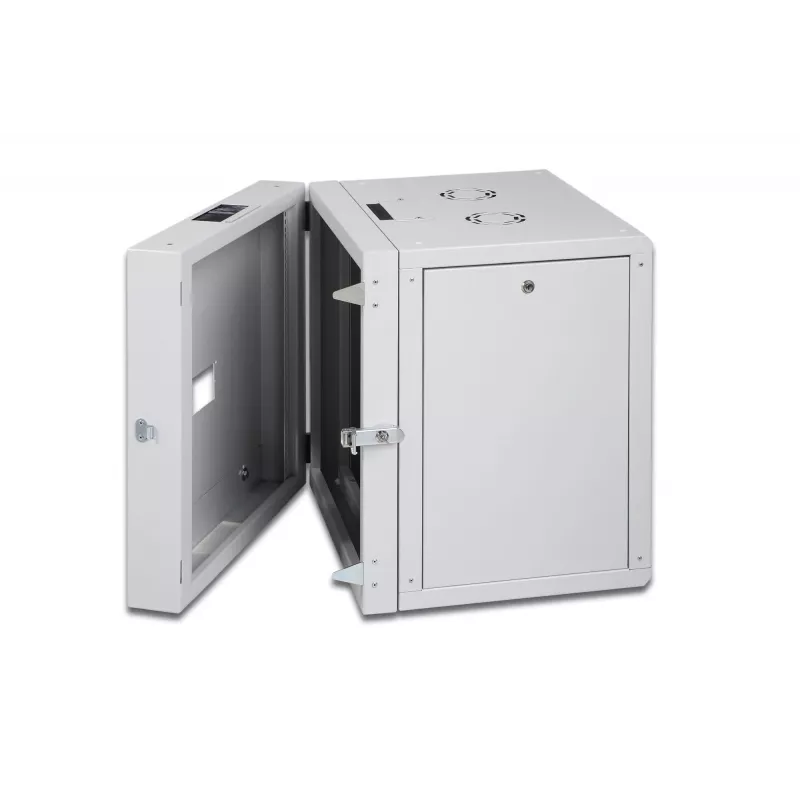

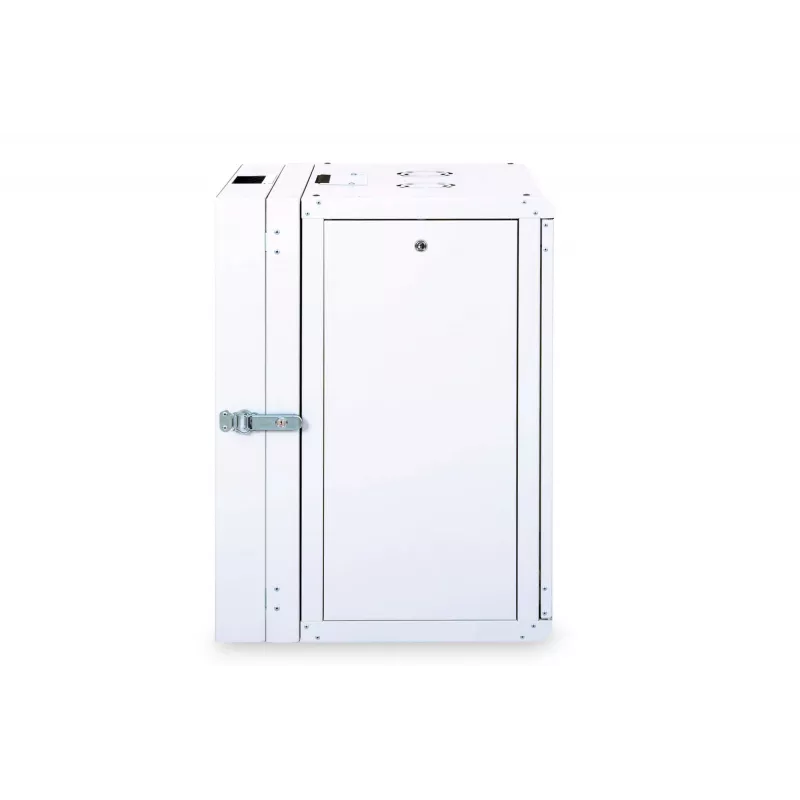

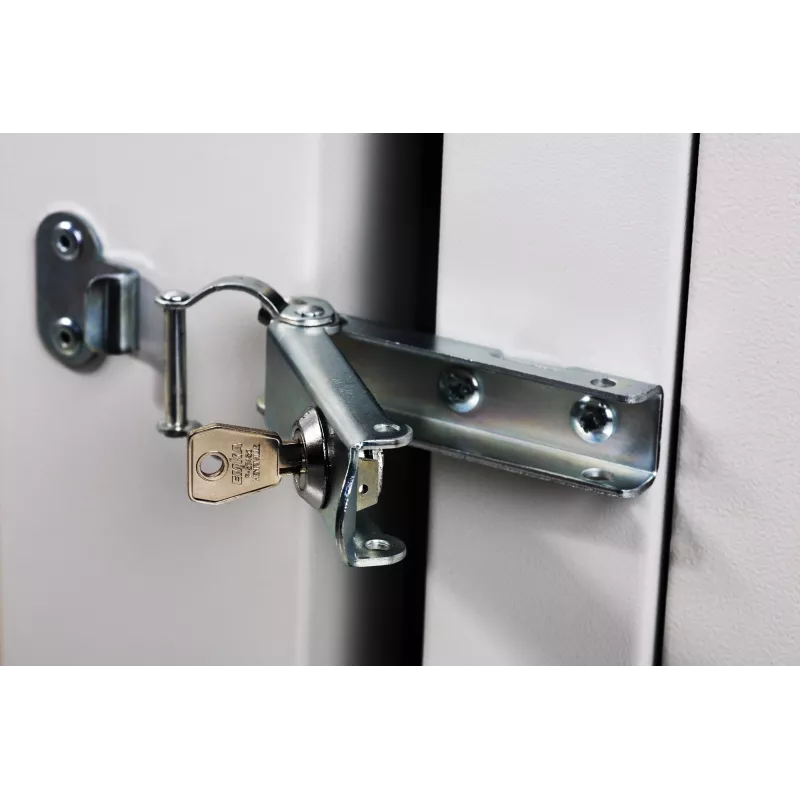

The cabinet’s robust steel construction and lockable safety-glass door provide physical protection and secure access control. A hinged back frame allows the housing to fold to the side for easy rear access during installation and maintenance. Integrated brush panels, a sliding roof cable inlet with foam seal, and pre-cut openings for fan modules improve airflow and cable routing. Adjustable depth 19" rails and a 19" perforated back frame increase mounting flexibility, while removable, lockable side panels simplify equipment installation.

Suitable for

• Small to medium enterprise network equipment (switches, patch panels, routers)
• Server room edge or communications closets with limited floor space
• Secure wall-mounted installations requiring controlled access

Key specifications

• Brand: DIGITUS
• Model: DN-19 16-U-3
• Rack capacity: 16U
• Dimensions (W x D): 600 mm x 600 mm
• Material thickness: up to 1.5 mm sheet steel
• Load capacity: up to 80 kg
• IP rating: IP20
• Colour: Grey (RAL 7035)
• Front door: Lockable safety-glass with steel frame, reversible hinge
• Rails: 483 mm (19") galvanized profile rails, depth adjustable, RU marked

How to use

Mount the cabinet frame plate to the wall using appropriate anchors and fixings for your wall type. Attach the housing to the frame plate so the cabinet can open in the desired direction. Install equipment on the 19" rails, adjusting rail depth as needed and using the RU markings for precise placement. Route cables through the roof sliding inlet with foam seal, back and floor pre-cut inlets, or the brush panels. If required, fit a fan module into the pre-cut roof area. Use the removable, lockable side panels to access internal components during assembly and secure the cabinet by locking the front glass door.

Recommendations

For stable and safe wall mounting, use anchors rated for the cabinet’s weight plus equipment load. Maintain clearance for airflow at the roof and back panels and avoid overloading beyond the specified 80 kg. Consider optional levelling feet or casters if converting the wall cabinet into a free‑standing unit.
