Nástenná zásuvka DeLOCK 2-násobná so 4 USB portmi 2 x 2,8 A

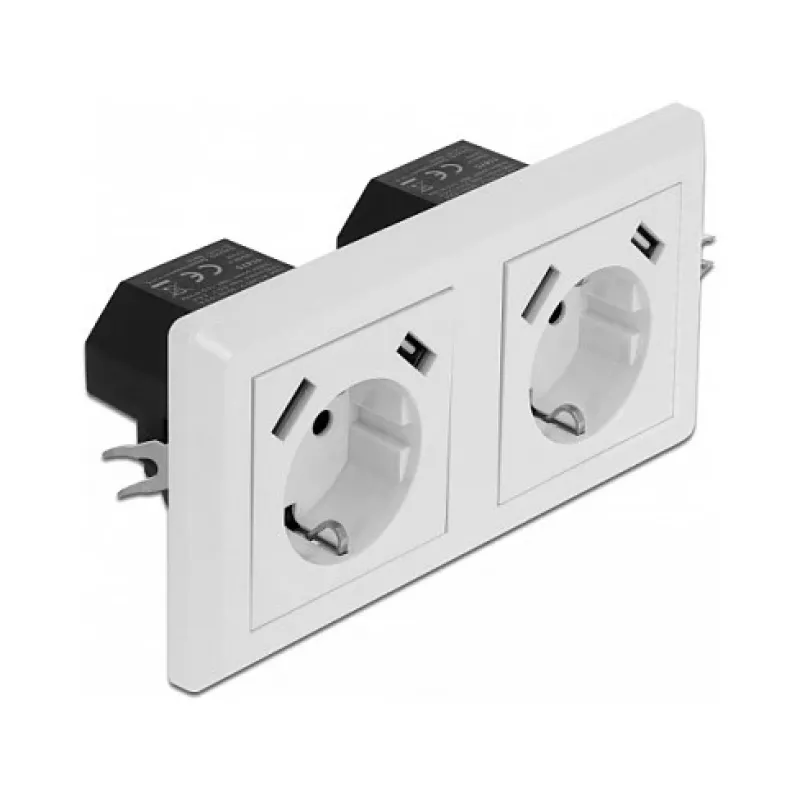

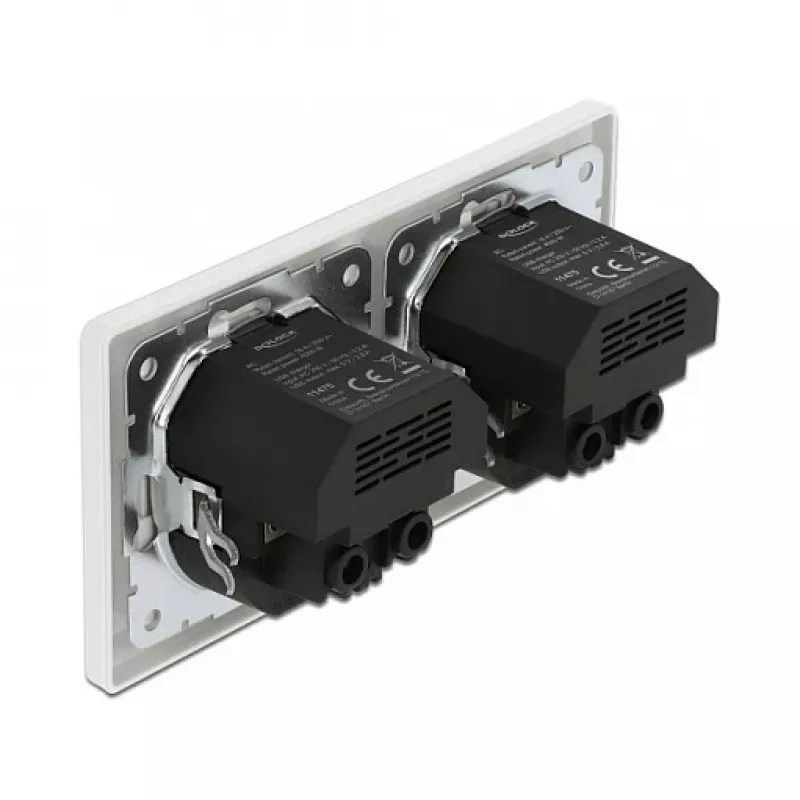

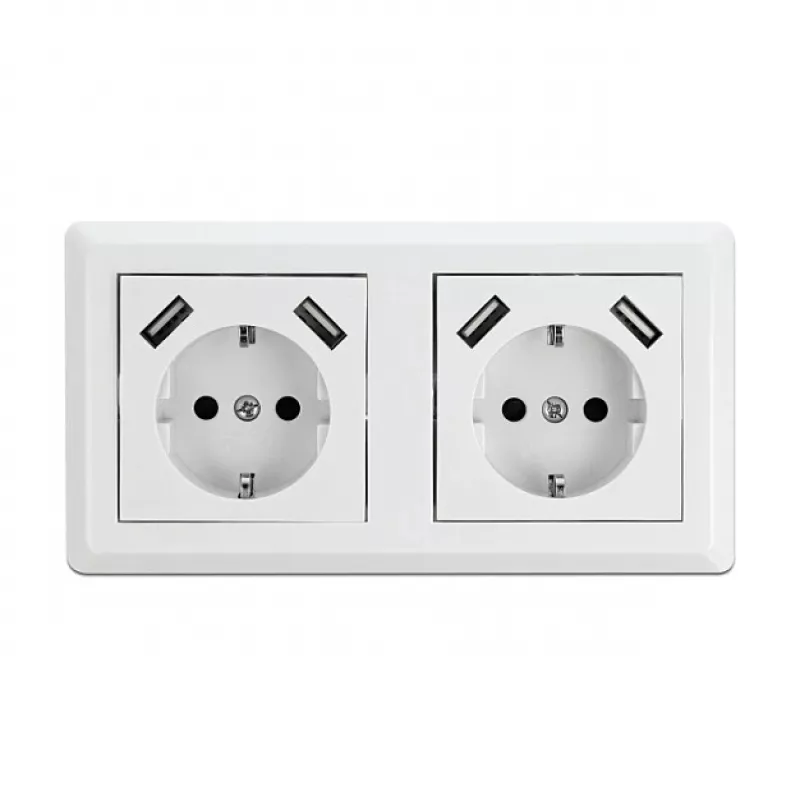

This Delock wall socket with side grounding contact combines two CEE 7/3 power outlets with child protection and four USB Type-A charging ports. It is intended for installation in a double flush-mounted or cavity installation box and fits frames with a 55 × 55 mm window. The unit is made of white plastic and provides standard mains power alongside USB charging for smartphones, tablets and similar devices.

Advantages

The socket integrates two grounded CEE 7/3 outlets with childproof shutters and four USB Type-A ports (each pair delivering up to 2.8 A) in a single module, enabling simultaneous use of mains and USB charging. It is compatible with common 55 × 55 mm frame series from manufacturers such as Gira, JUNG, Busch‑Jaeger and Merten, and is designed for installation in double flush-mounted or cavity boxes. The compact dimensions and white finish allow discrete installation in residential and office environments.

Suitable for

• Charging smartphones and tablets while keeping wall outlets available
• Use in homes, offices, hotel rooms and shared spaces
• Replacement or upgrade of sockets in frames with 55 × 55 mm window

Key specifications

• Power sockets: 2 × CEE 7/3 with side grounding contact and childproof lock
• USB ports: 4 × USB Type-A (combined output: two pairs at up to 2.8 A each)
• Rated voltage/current: 250 V, 16 A; frequency: 50 Hz
• Material and colour: white plastic
• Dimensions: 80 mm (W) × 151 mm (D) × 52 mm (H)
• Compatibility: 55 × 55 mm frame window series (e.g., Gira, JUNG, Busch‑Jaeger, Merten)
• Brand / MPN / EAN: DELOCK / 11475 / 4043619114757

How to use

Install the unit into a double flush-mounted or cavity installation box compatible with a 55 × 55 mm frame window following local electrical regulations. Connect the mains wiring to the socket’s terminals, secure the device in the installation box and mount the compatible faceplate or frame. After installation, plug standard CEE 7/3 devices into the power outlets and connect USB cables to the Type-A ports to charge mobile devices. Ensure the supply is switched off during installation and verify wiring before re-energising.

Recommendations

Use appropriate USB charging cables and check connected devices’ power requirements. Do not exceed the socket’s rated current (16 A) and avoid simultaneous high-load use that could overload the circuit. Installation and any electrical connections should be performed by a qualified electrician in accordance with local codes.
