Nástenný držiak B-TECH BT8227/B 600x400 pre 75-palcový TV, max. zaťaženie 50 kg

Fixed wall mount B-TECH BT8227/B with a 600 × 400 mm VESA pattern is designed to secure flat-screen TVs up to 75" with a maximum load of 50 kg. The mount offers a low-profile attachment to flat walls, providing a stable and permanent installation for living rooms, conference rooms, classrooms, or commercial displays. It is compatible with TVs that have 600×400 mounting holes and is intended for use where a simple, space-saving solution is required.

Advantages

The mount delivers a compact and rigid connection between the display and the wall, minimizing gap and visual impact. Constructed from steel with a protective finish, it resists deformation under the specified load and provides reliable long-term support. Installation features such as clear mounting points and a straightforward bracket interface reduce fitting time and help ensure correct alignment. The design is maintenance-free and suitable for continuous use.

Suitable for

• Fixed home TV installations in living rooms or media rooms
• Office meeting rooms and presentation displays
• Classrooms and educational spaces with wall-mounted screens
• Retail or public displays requiring a low-profile mount

Key specifications

• VESA compatibility: 600 × 400 mm
• Maximum screen size: up to 75 inches
• Maximum load capacity: 50 kg
• Type: fixed (non-tilting) wall mount
• Material: steel construction with protective finish
• Wall clearance: low-profile (minimal gap between TV and wall)

How to use

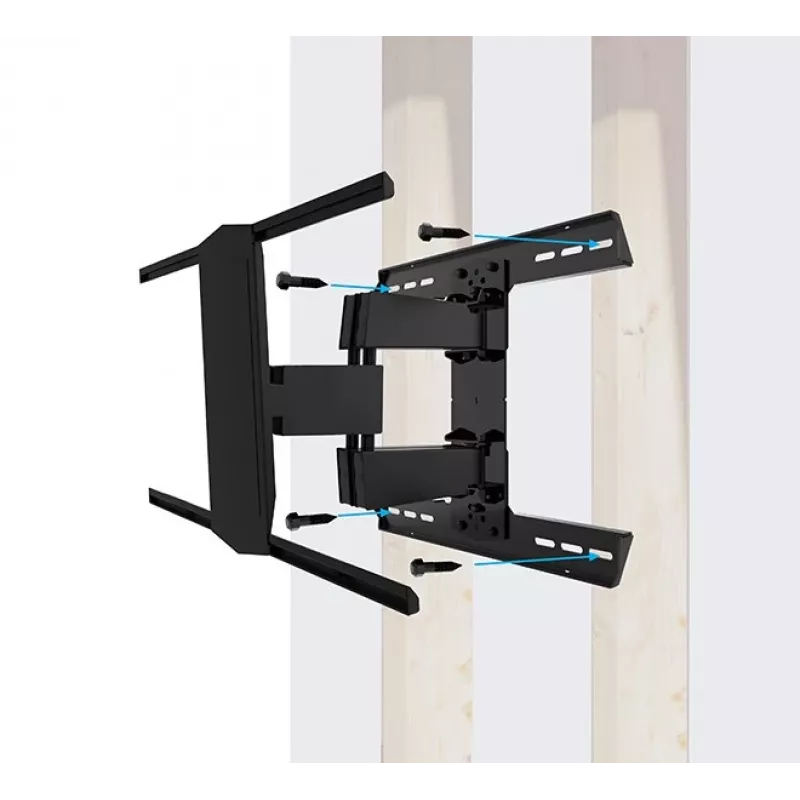

Select a suitable load-bearing wall and mark mounting positions according to the bracket holes and the VESA pattern of the TV. Drill and fit appropriate wall anchors and fix the wall plate securely with suitable bolts for the wall type. Attach the TV brackets to the display using the matching VESA holes and appropriate screws. With assistance, lift the screen and engage the TV brackets with the wall plate until they lock or sit firmly in place. Verify level and secure any safety fastenings supplied. Follow local building regulations and the TV manufacturer’s mounting recommendations.

Recommendations

Use a qualified installer for masonry or slate walls and when mounting large or heavy displays. Verify that the selected wall and fixings are rated for the combined weight of the TV and mount. Regularly inspect fixings and the mount for signs of loosening or damage, especially in public or high-vibration environments.
