Nástenný držiak LCD rameno Ergotron MX 106,7 cm (42 palcov)

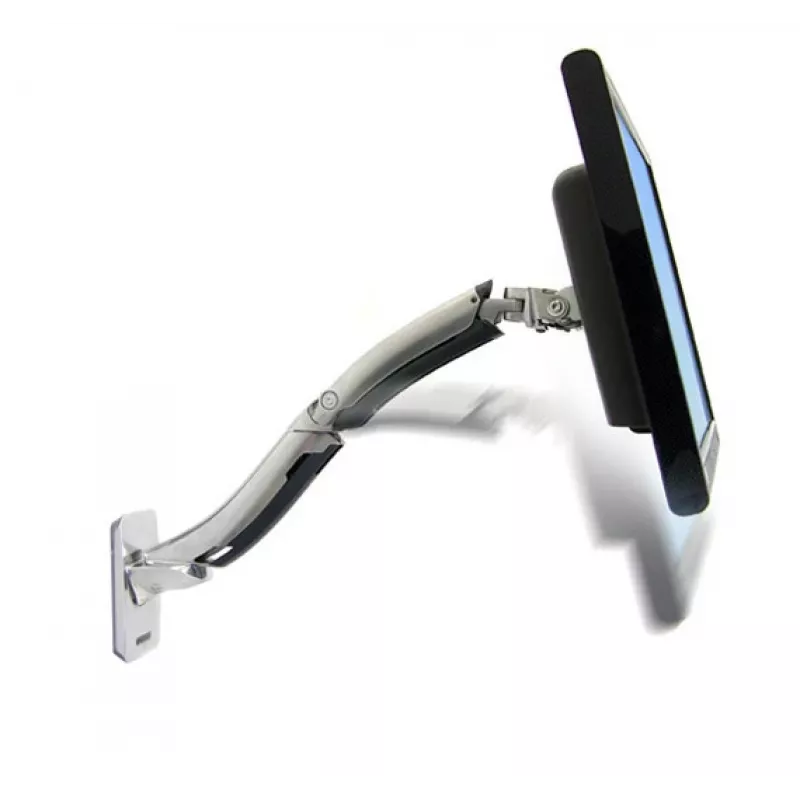

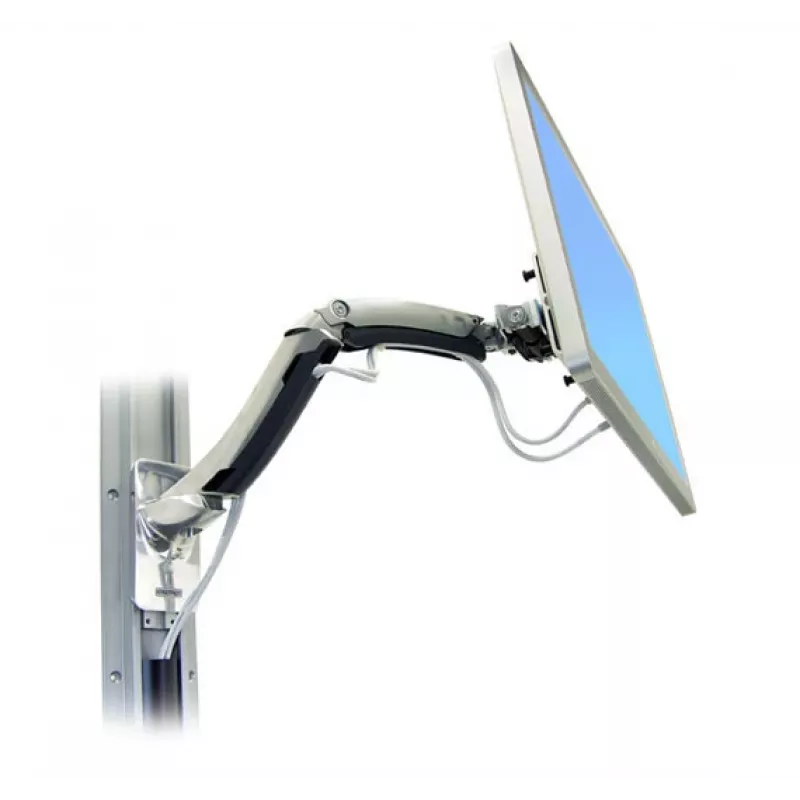

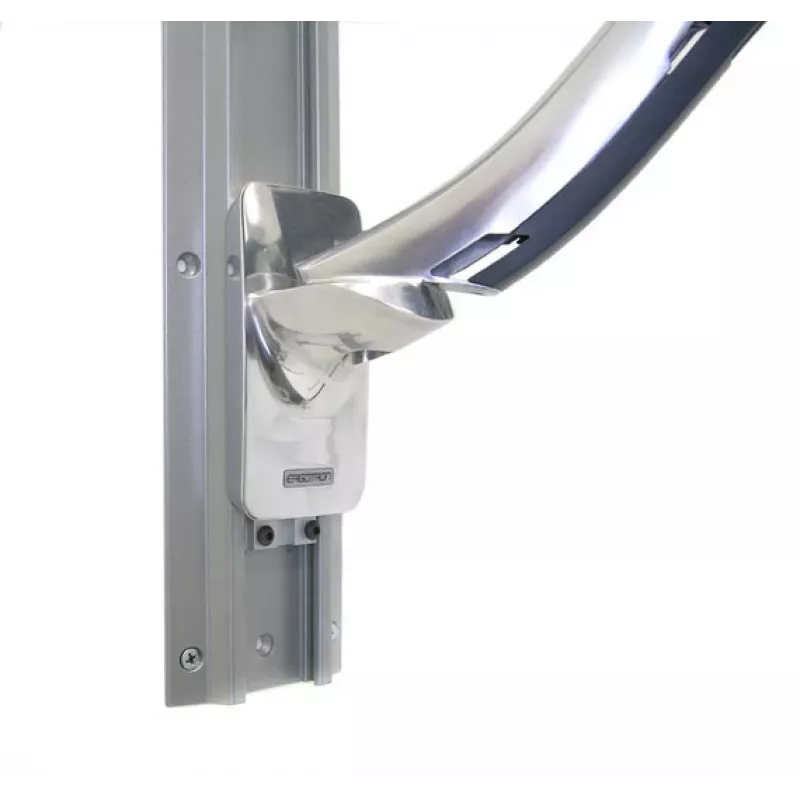

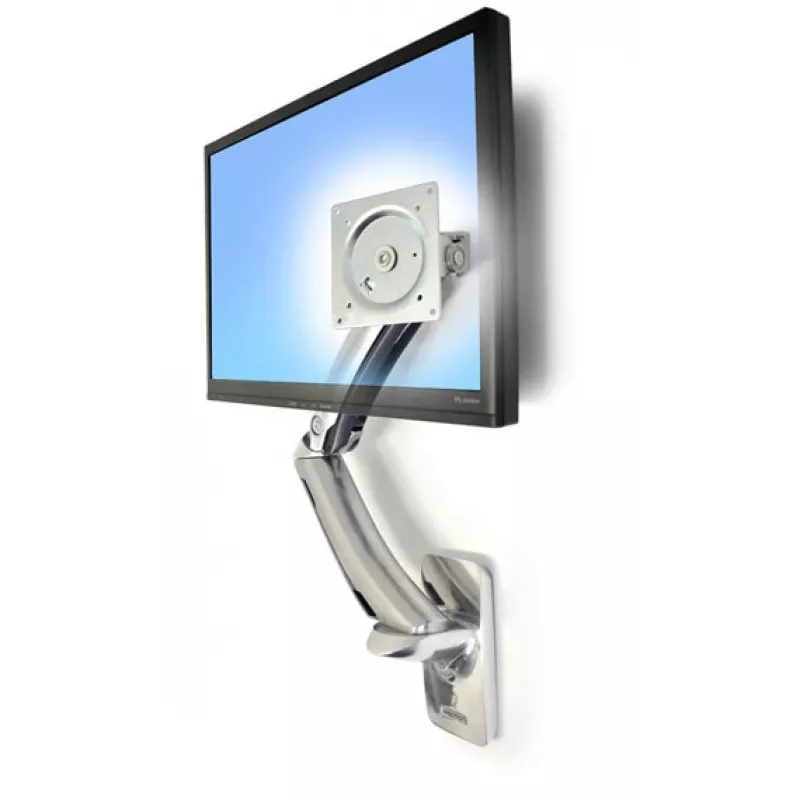

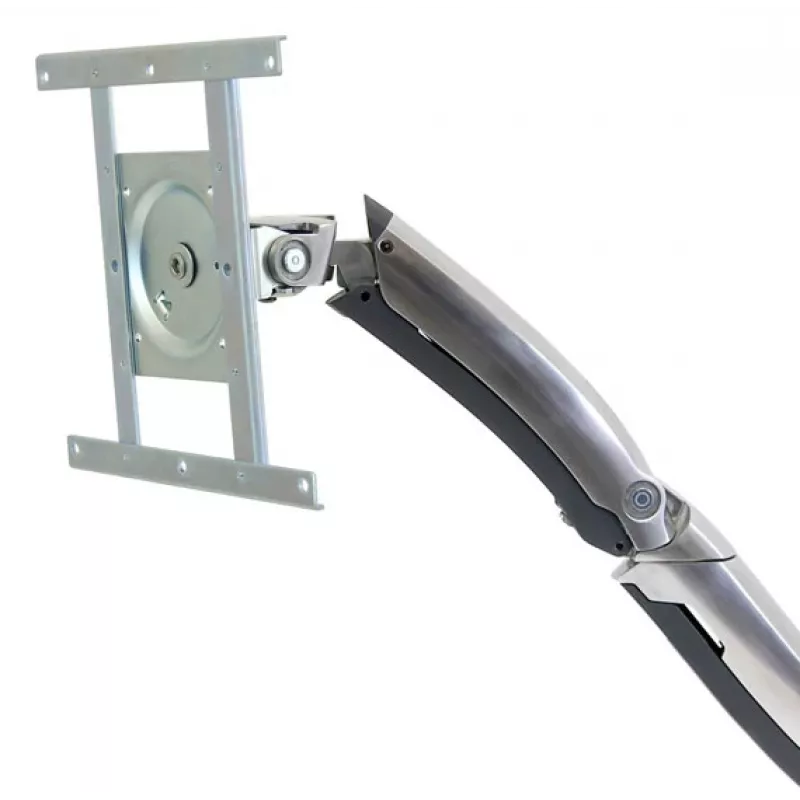

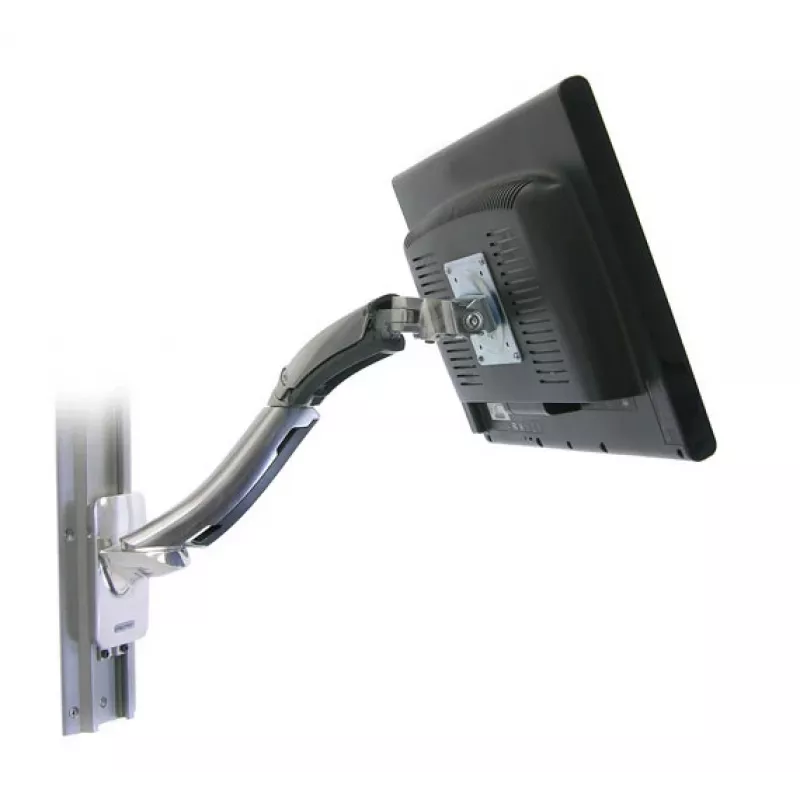

The Ergotron MX wall mount LCD arm supports mid-sized displays and all-in-one computers up to 30 lbs (13.6 kg) and screens up to 106.7 cm (42"). It is constructed of aluminium and includes the MX arm, vertical mount base and VESA adaptor brackets to accommodate a range of VESA patterns.

Advantages

The arm provides five inches (13 cm) of height adjustment and 17 inches (42 cm) of extension/retraction for flexible positioning. Integrated tilt and portrait-to-landscape rotation enable ergonomic viewing angles and help improve workspace efficiency. The aluminium construction delivers a slim appearance while supporting a single display with a maximum weight capacity of 13.6 kg.

Suitable for

• Mid-sized LCD monitors up to 42" (106.7 cm)
• All-in-one PCs within the 13.6 kg weight limit
• Workstations where tilt, rotation and reach adjustment are required

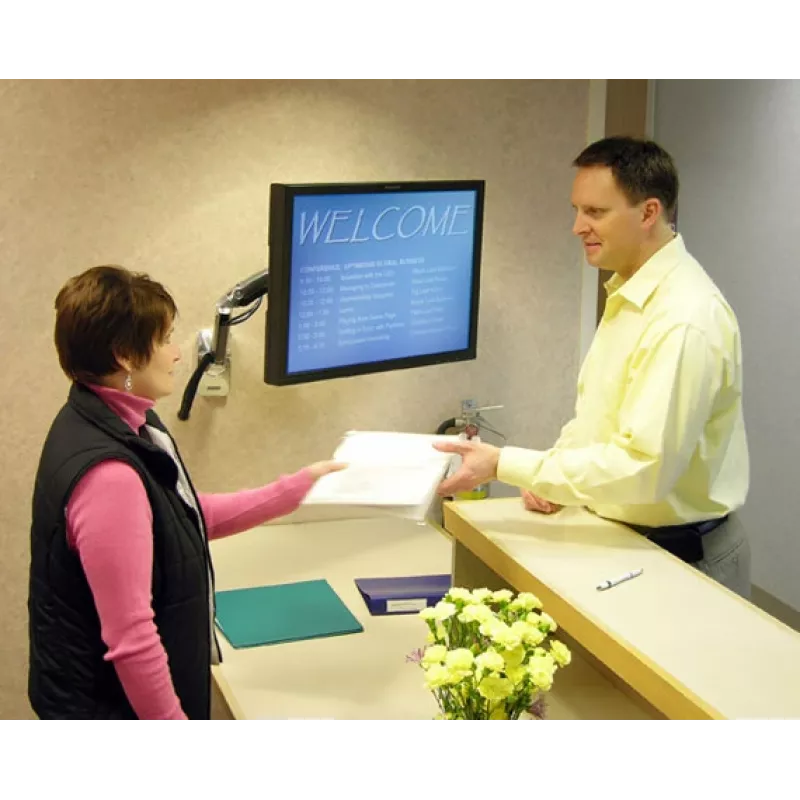

• Offices, home offices and reception areas with VESA mounts 75 x 75 mm to 200 x 200 mm

Key specifications

• Maximum screen size: 42" (106.7 cm)
• Maximum weight capacity: 13.6 kg (30 lbs)
• Height adjustment: 5 in (13 cm)
• Extension/retraction range: 17 in (42 cm)
• Tilt range: 0–80°
• VESA compatibility: 75 x 75 mm to 200 x 200 mm
• Material: Aluminium
• Number of displays supported: 1
• Product weight: 3.447 kg

How to use

Attach the vertical mount base to a suitable wall surface following the mounting instructions and local building codes. Fit the VESA adaptor brackets to your display, secure the display to the MX arm, then adjust height, extension, tilt and rotation to the desired ergonomic position. Verify all fasteners are tightened and that the display weight does not exceed 13.6 kg.

Recommendations

For safe and stable installation, mount the base to a structural wall or stud and confirm the wall material and fixings support the combined weight of the arm and display. Do not exceed the specified maximum weight or attempt to mount incompatible VESA patterns without the supplied adaptors.
