Nástenný montážny systém Ergotron LX 45-247-026

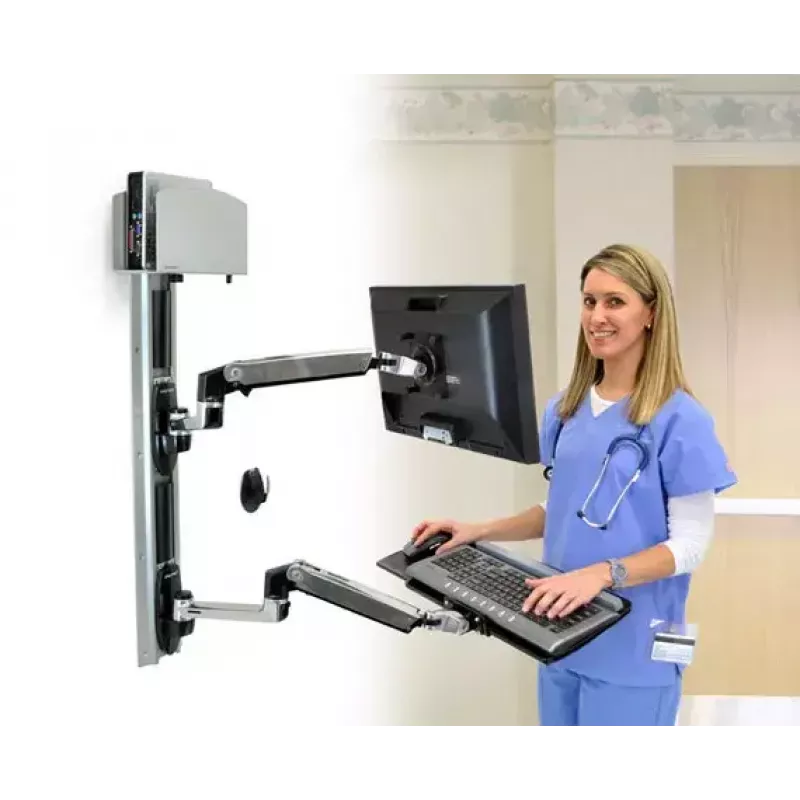

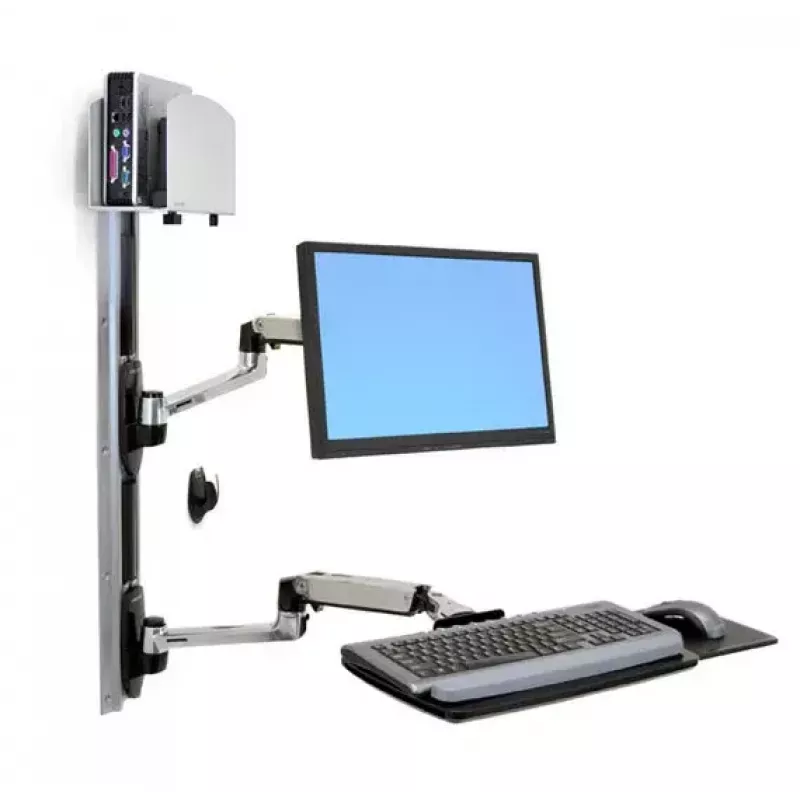

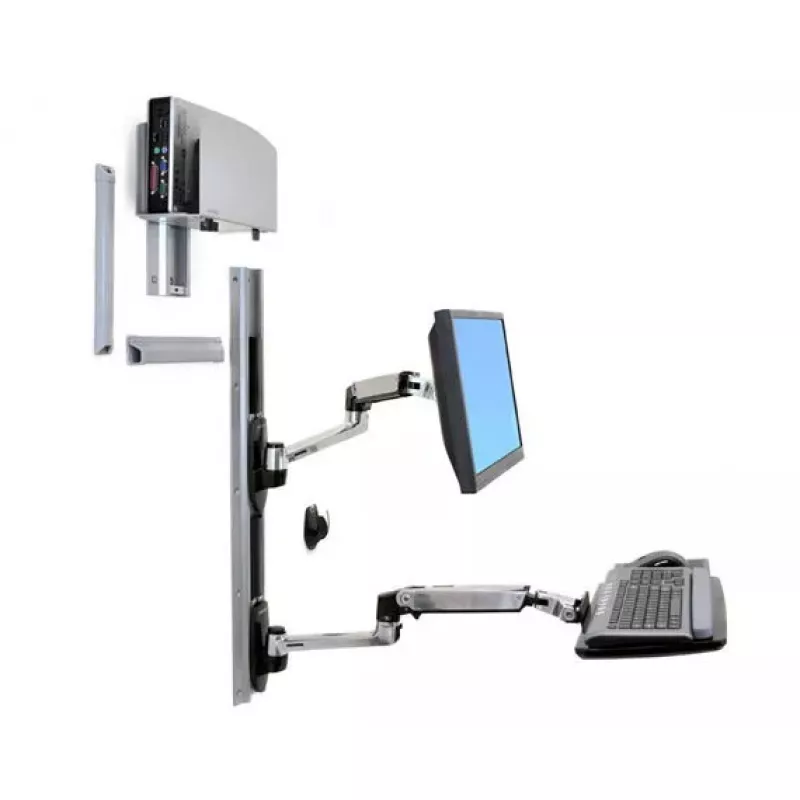

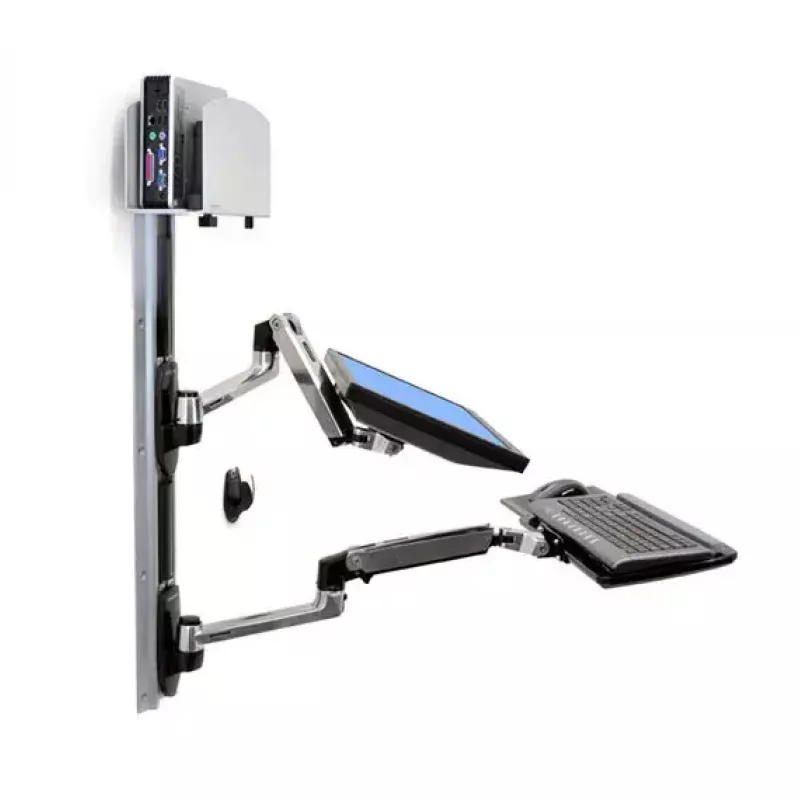

The Wall Mount System Ergotron LX 45-247-026 is a complete, space-saving workstation solution that supports an LCD display, keyboard and medium-sized CPU. Constructed from durable polished aluminum, the system provides vertical and side-to-side motion and allows the keyboard and display to fold close to the wall when not in use.

Advantages

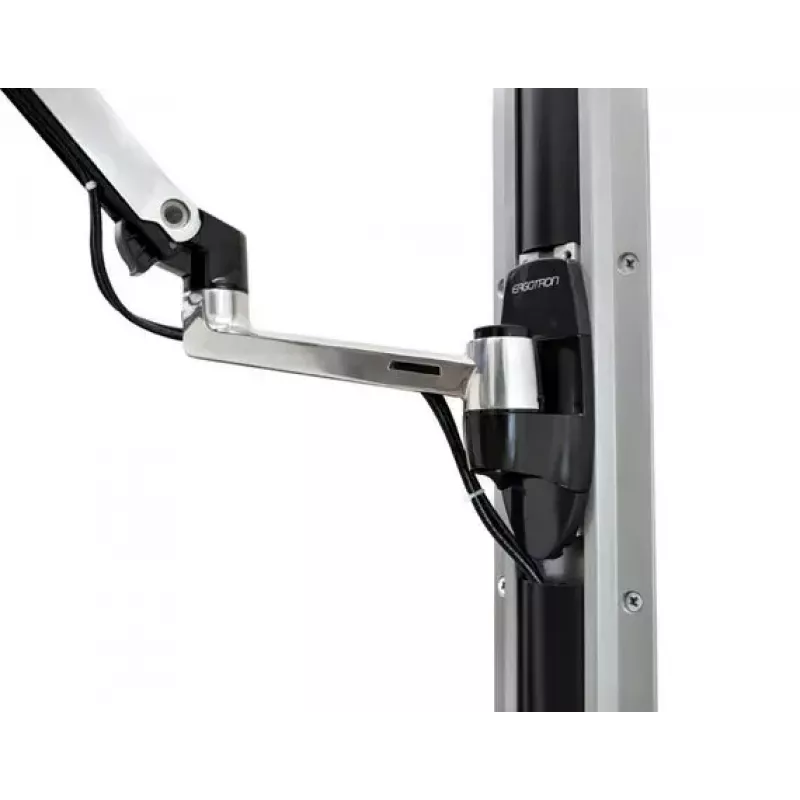

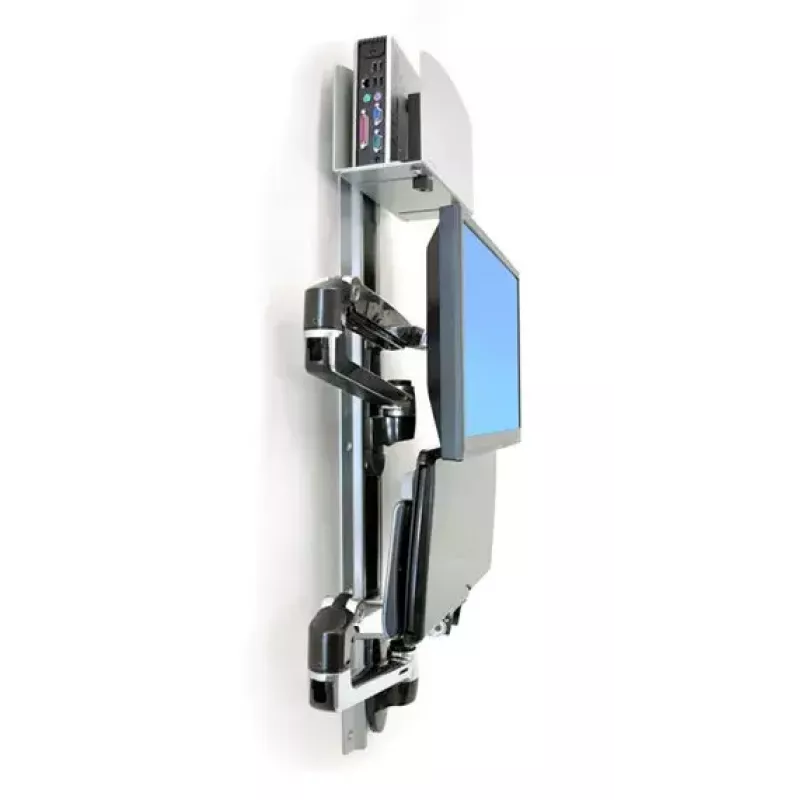

Articulating arms offer full tilt and pan capability with 13" (33 cm) of height adjustment for ergonomic positioning. The LCD extends up to 25" (64 cm) while the keyboard tray extends up to 35" (89 cm), allowing the display and keyboard to be moved independently and stored compactly. In storage position the keyboard folds to within 3.5" (9 cm) of the wall and the LCD arm folds to a depth of 5.3" (13 cm). The back-tilt keyboard tray supports a neutral wrist position during data entry and the display can be lowered for convenient bi-focal viewing. The product is built to pass Ergotron’s 10,000-cycle motion test for reliable height adjustment.

Suitable for

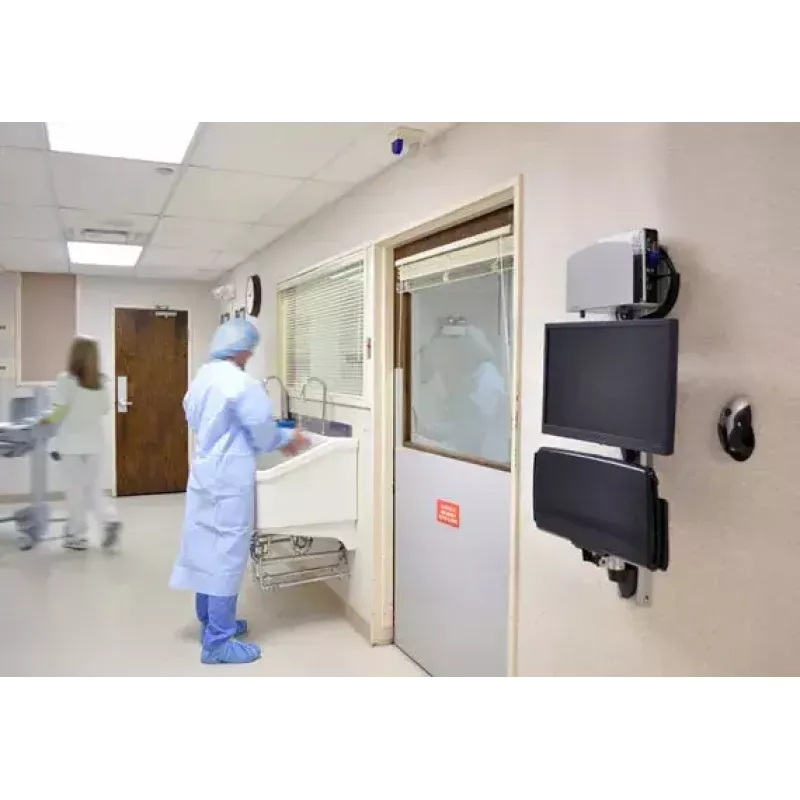

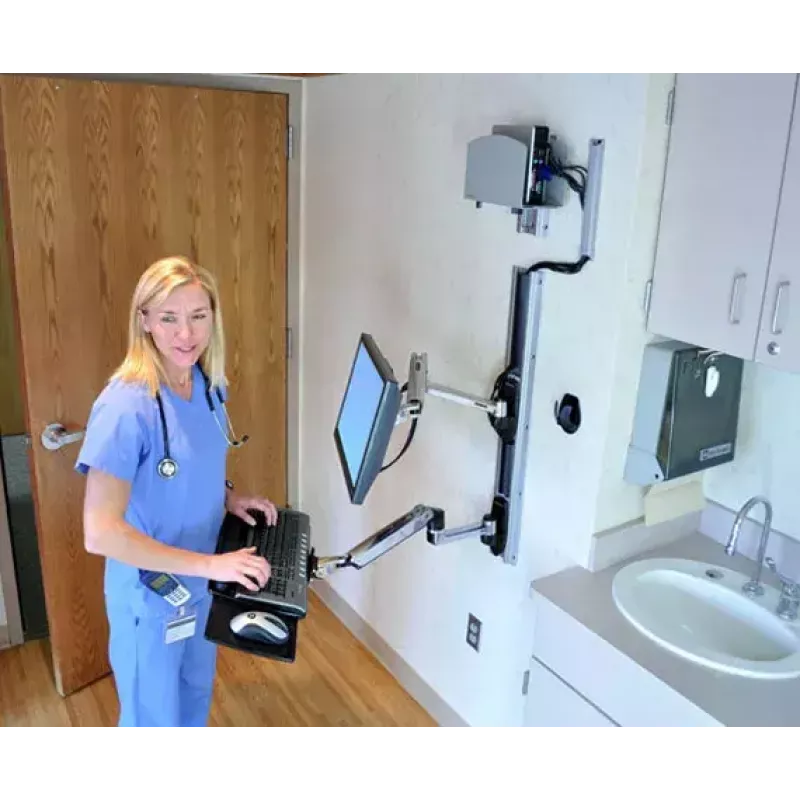

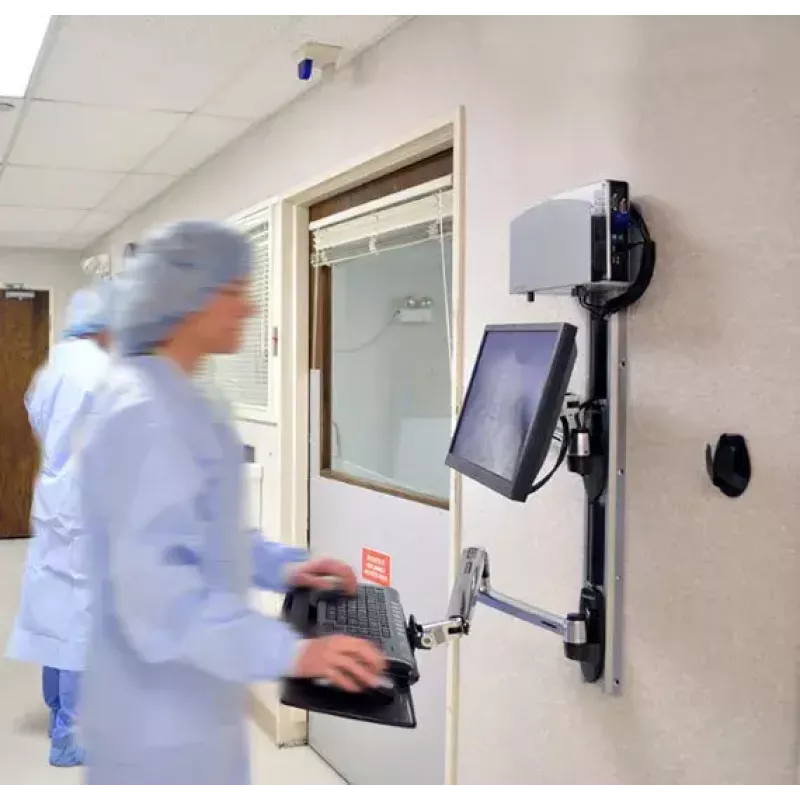

• Clinical or patient-facing workstations where eye contact must be maintained
• Small or space-constrained rooms and corridors
• Offices and shared workspaces requiring adjustable wall-mounted displays
• Environments needing frequent display and keyboard repositioning

Key specifications

• Brand: ERGOTRON
• Model (MPN): 45-247-026
• Construction: Polished aluminum
• LCD extension: up to 25" (64 cm)
• Keyboard tray extension: up to 35" (89 cm)
• Height adjustment: 13" (33 cm)
• Keyboard folded depth: 3.5" (9 cm)
• LCD arm folded depth: 5.3" (13 cm)
• Weight: 13.426 kg
• Tilt range: up to 85° (product overview)

How to use

Mount the Ergotron LX system on a suitable load-bearing wall following the manufacturer’s installation instructions. Attach the LCD, keyboard tray and CPU to the provided brackets and route cables to avoid interference with moving joints. Adjust height, tilt and pan using the articulating arms to position the display and keyboard for comfortable viewing and typing; fold the keyboard and LCD toward the wall to save space when the workstation is not in use.

Recommendations

For reliable operation, perform regular inspections of mounting hardware and moving joints, ensure the installation surface supports the listed weight, and follow Ergotron’s maintenance guidance. Use the keyboard tray’s back-tilt adjustment to keep wrists neutral during extended data entry sessions.
