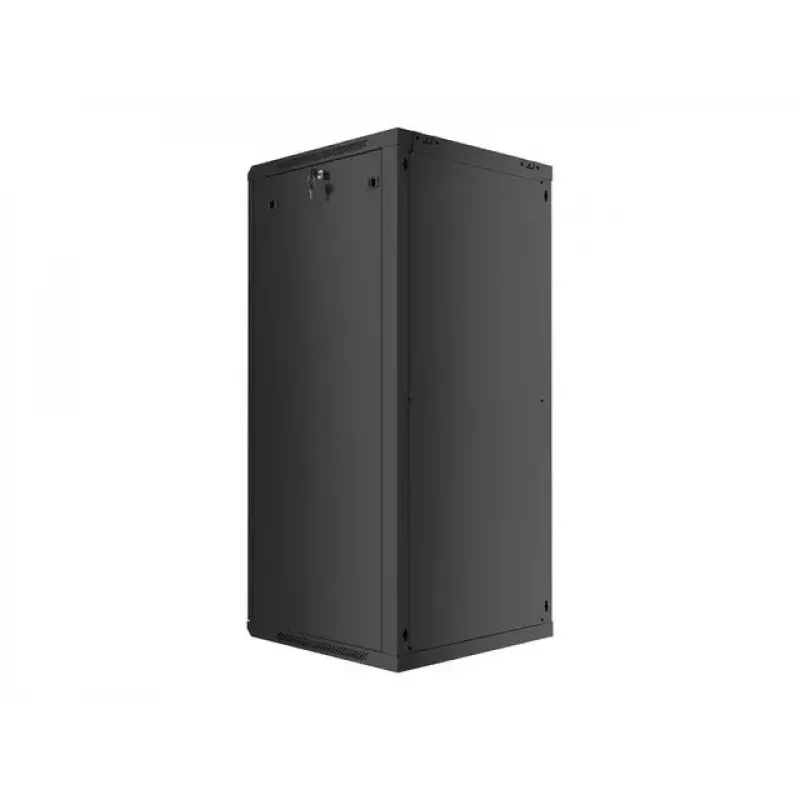

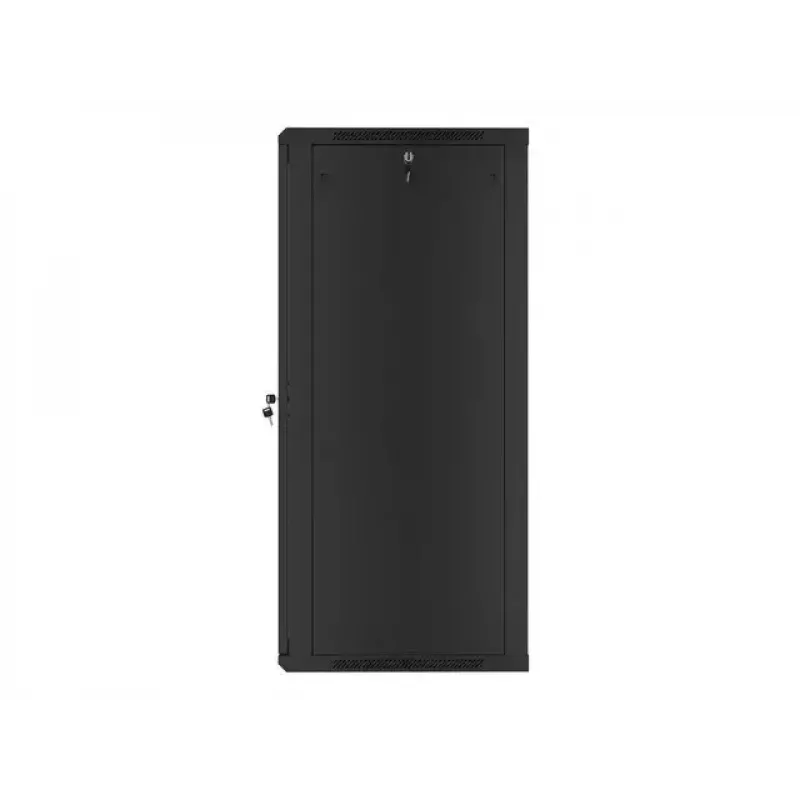

Nástenný rack Lanberg WF01-6627-10B

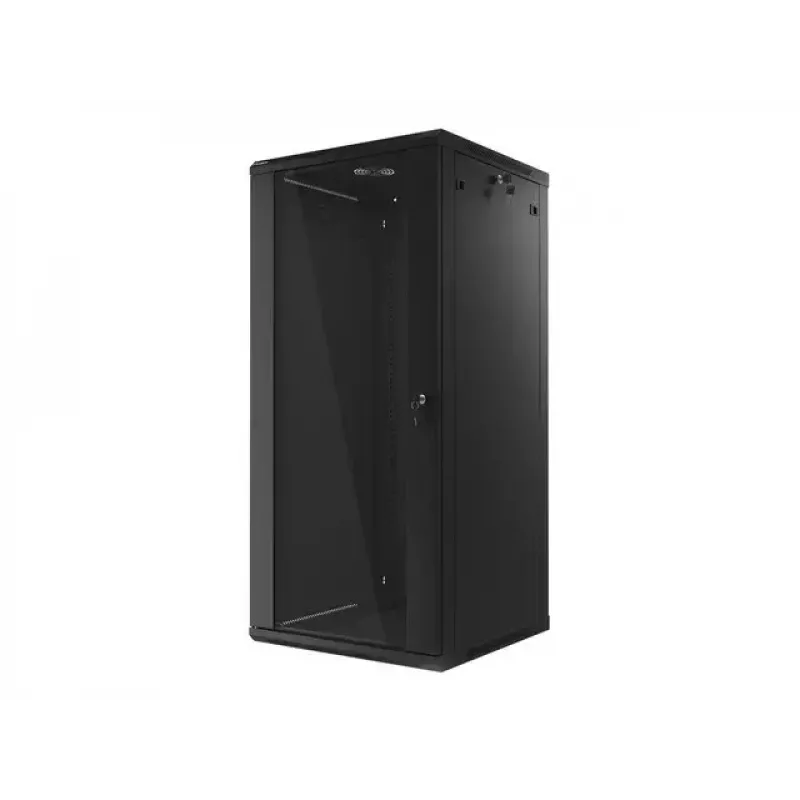

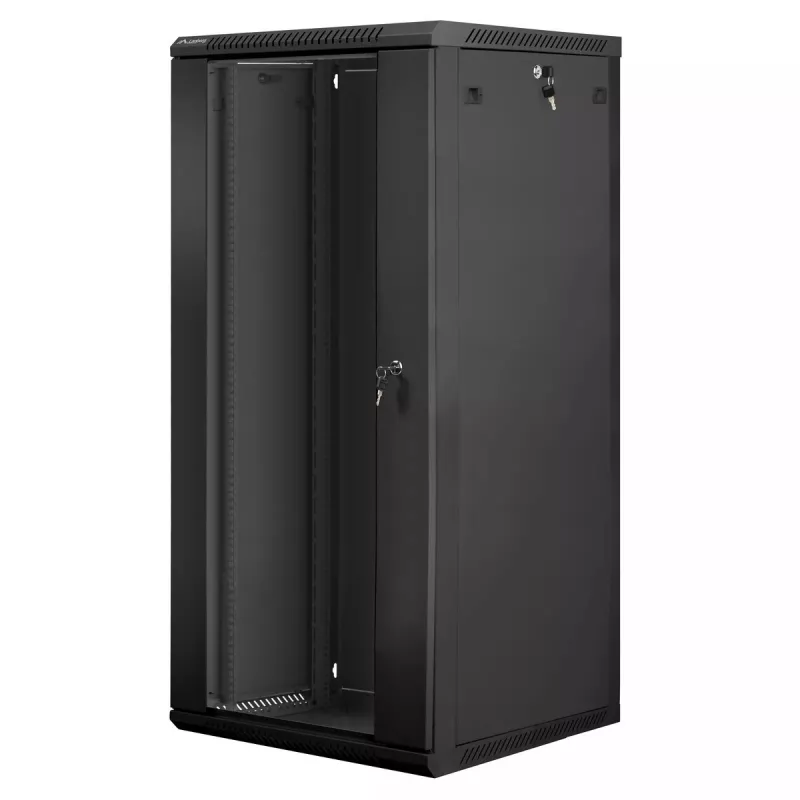

The Lanberg WF01-6627-10B stands out among wall-mount racks by combining a generous 27U capacity with a space-saving 600 x 600 mm footprint and a flat-pack design that eases transport and handling. Its high-grade cold-rolled steel construction supports up to 60 kg of equipment, making it a reliable choice for network switches, patch panels, and surveillance gear in server rooms, network closets, and small to medium business installations.

Highlights

• 27U single-section wall cabinet for 19-inch equipment
• Robust steel frame with IP20 protection and 60 kg static load capacity

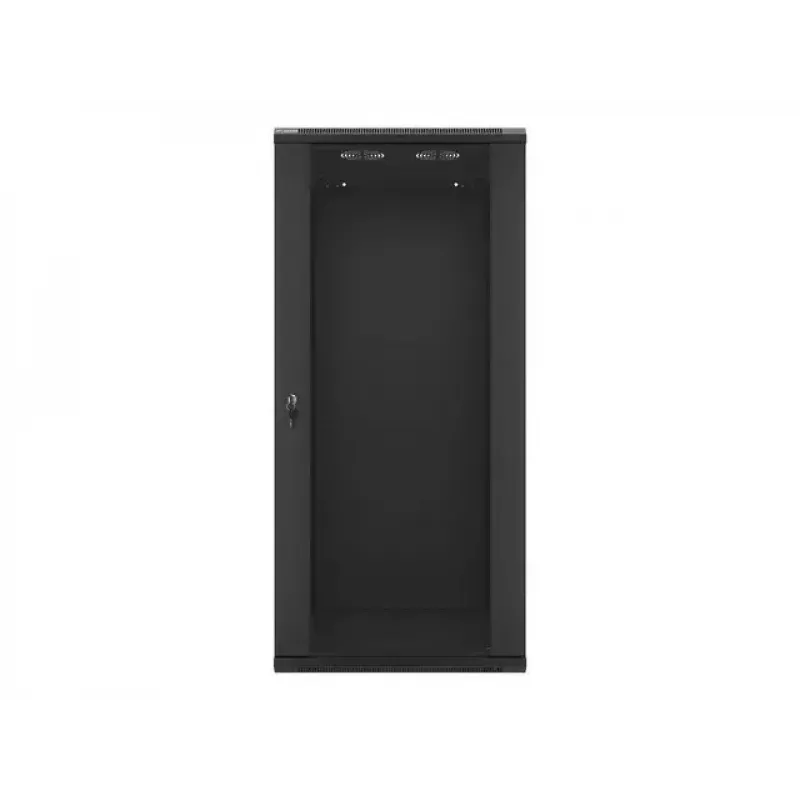

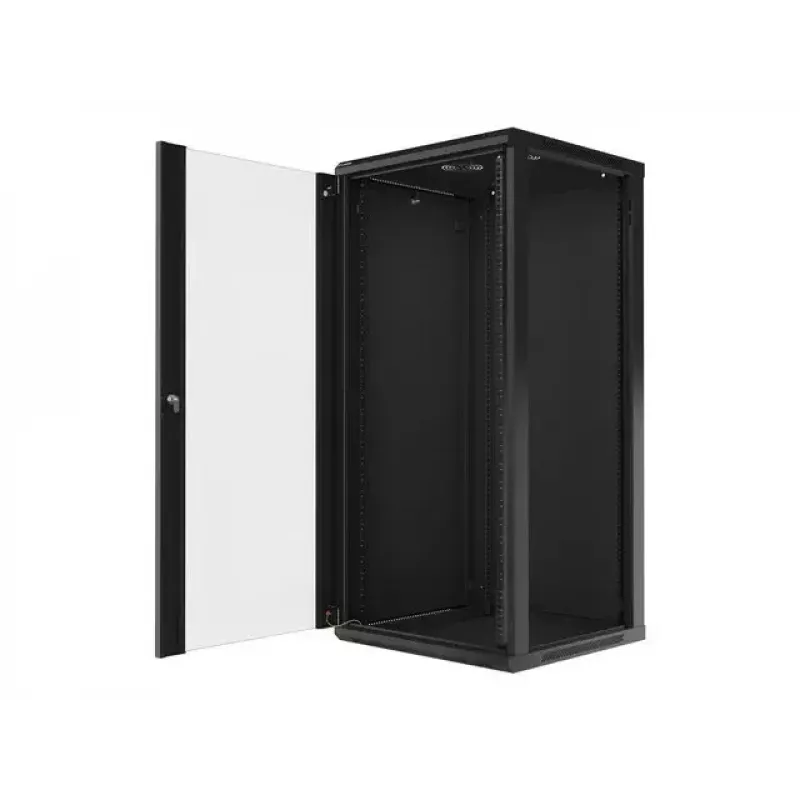

• Lockable front door opens up to 180° and is reversible for left or right mounting

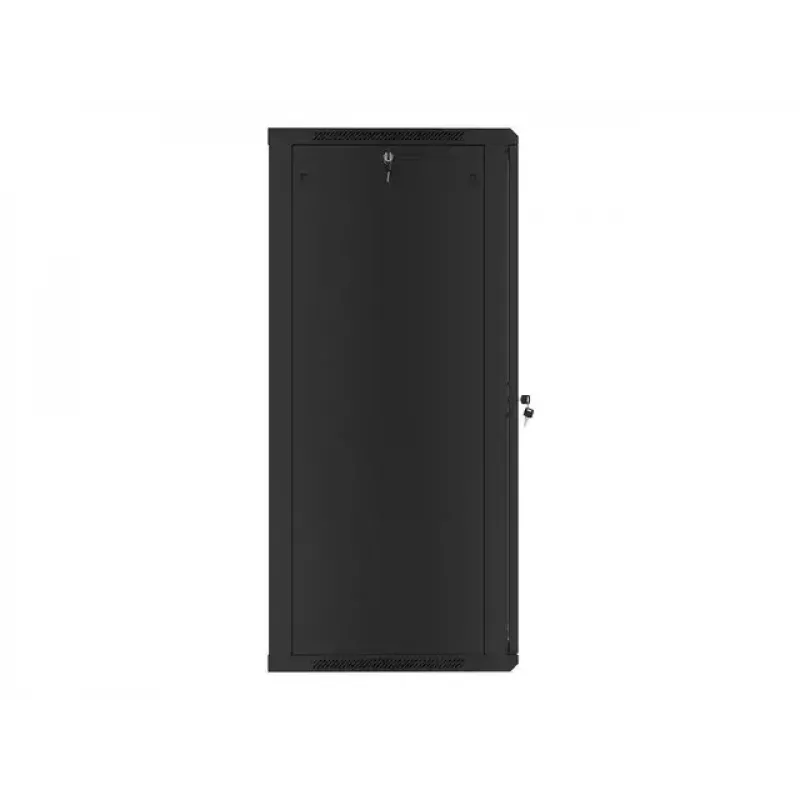

• Removable, lockable side panels for easy access during installation and maintenance

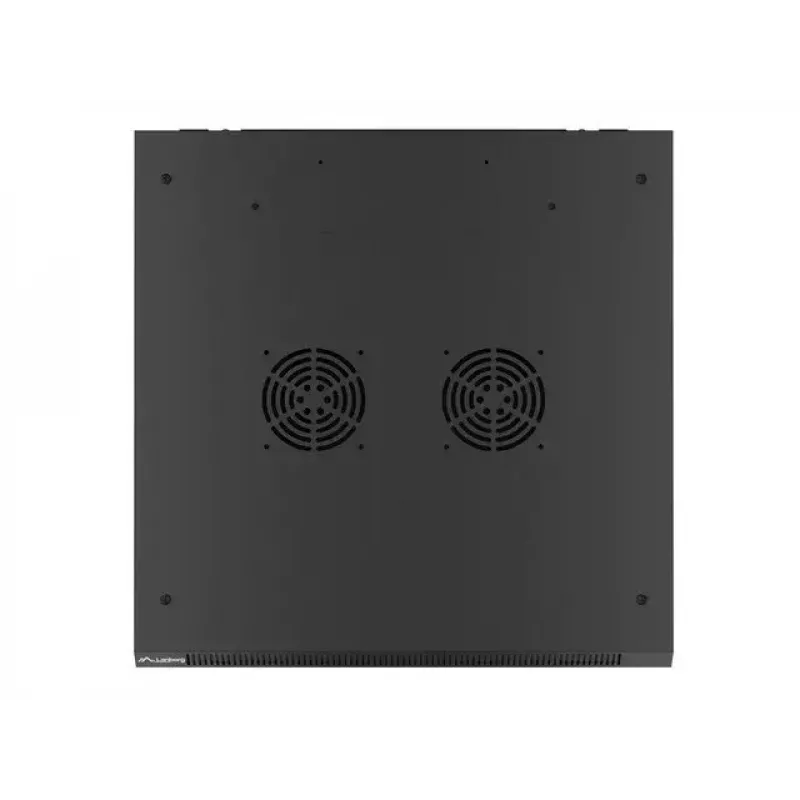

• Cable entry panels on top and bottom covers simplify cable routing
• Flat-pack delivery with all necessary mounting accessories, M6 cage nuts, and blank entry panels

In daily use

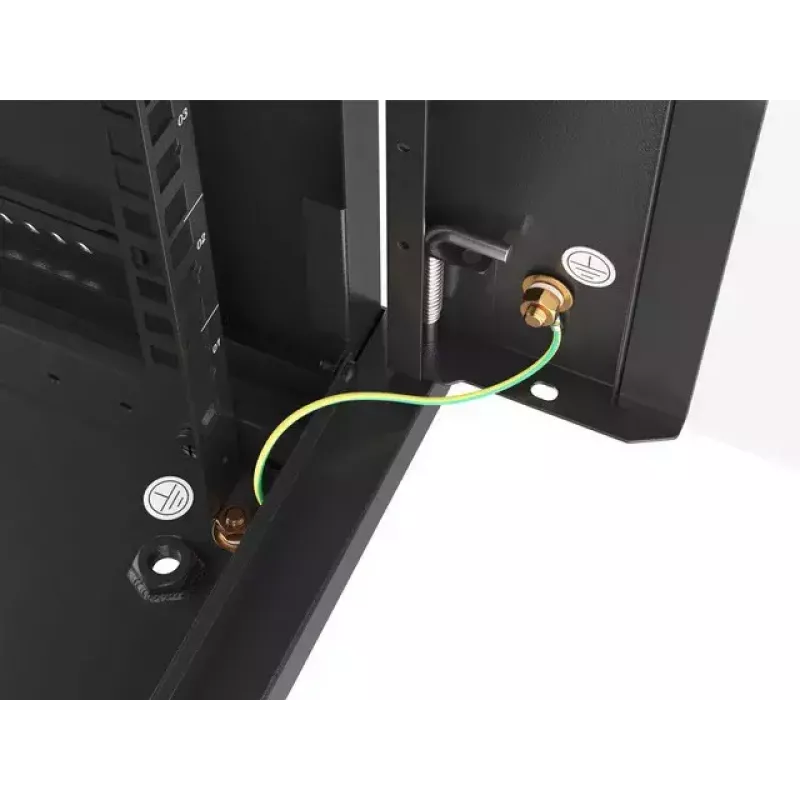

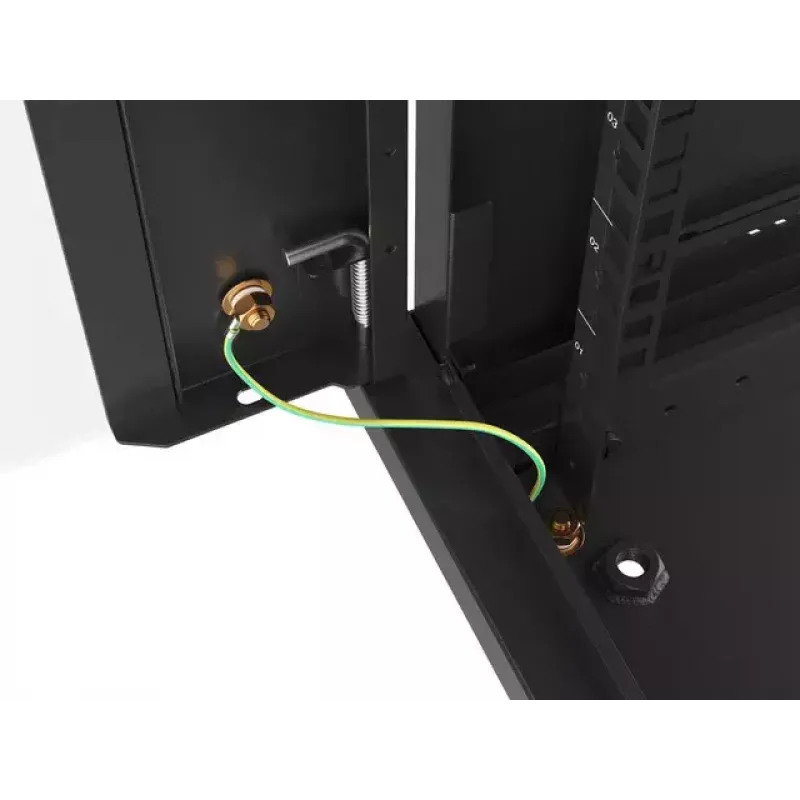

Mounting the WF01-6627-10B on a suitable load-bearing wall frees up floor space while keeping critical network components secure. The adjustable mounting rails accommodate various equipment depths up to 505 mm, and the reversible door adapts to your room layout. Thanks to the included keys, side panel locks, and earthing kit, you can maintain both security and proper grounding with minimal effort.

Full specifications

• Rack capacity: 27U
• External dimensions (H x W x D): 1307 x 600 x 600 mm
• Maximum mounting depth: 505 mm
• Material: High-grade cold-rolled steel
• Colour: Black (RAL 9004)
• Protection rating: IP20
• Static load capacity: 60 kg
• Product weight: 41 kg
• Mounting standard: 19-inch
• Front door: Lockable, reversible (180° opening)
• Side panels: Removable, lockable
• Cable entry: Top and bottom panels
• Assembly: Flat-pack (self-assembly required)
• Included accessories: Mounting kit, earthing kit, 4 keys, M6 cage nuts, blank entry panels
• Compliance: IEC 60297-3-100, EN 60950-1, RoHS

Final note

The Lanberg WF01-6627-10B delivers a secure, space-efficient rack solution for professional installations, with the flexibility of flat-pack shipping and the assurance of lockable access.
