Nástenný rack Lanberg WFFA-5604-10S

The WFFA series 4U single-section wall-mount cabinet in gray (570 x 600 mm) is designed to house 19" RACK-compliant ICT network equipment and structured cabling. Intended for office, home and low-current installations, the cabinet is suitable for cable TV, alarm/fire systems, access control and IP/video surveillance deployments. The product features a tempered glazed front door, steel side panels, a robust cold-rolled steel frame and is intended for indoor use only.

Advantages

The WFFA cabinet series offers a reinforced, modernized frame and improved matte surface paint. The design reduces the number of assembly screws and uses internal fastening so screws are tightened from the inside, while some parts are fastened with latches, enabling a neat external appearance. The cabinet includes three removable cable entry panels for flexible wiring and simplified installation in confined spaces. Quick self-assembly and minimized mounting hardware make the cabinet convenient for installers and integrators.

Key specifications

• Form factor: 4U, single-section wall-mount cabinet
• Dimensions (W x D): 570 x 600 mm
• Standard: 19" RACK compatible

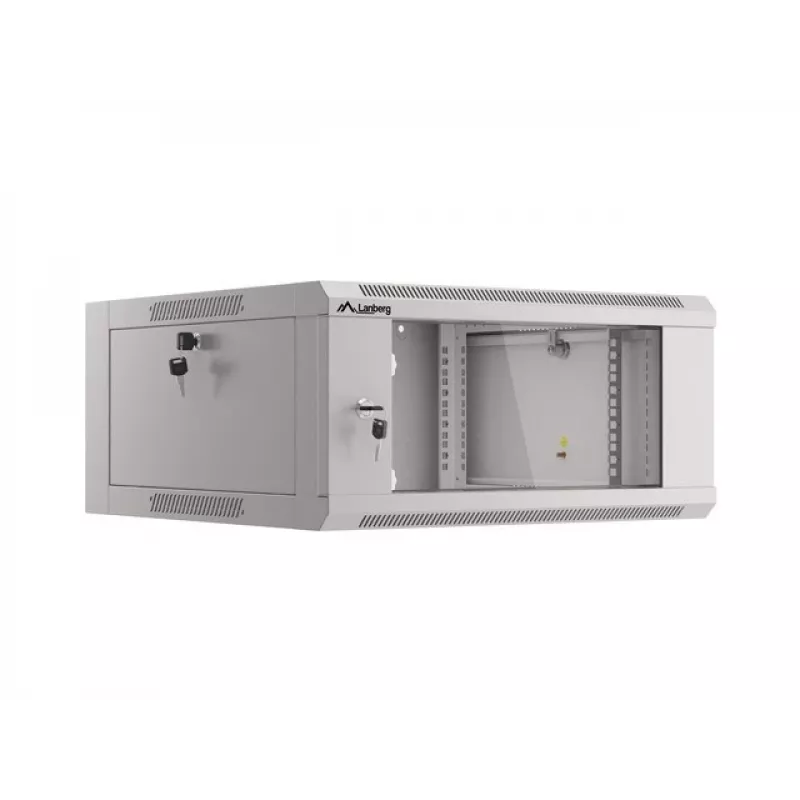

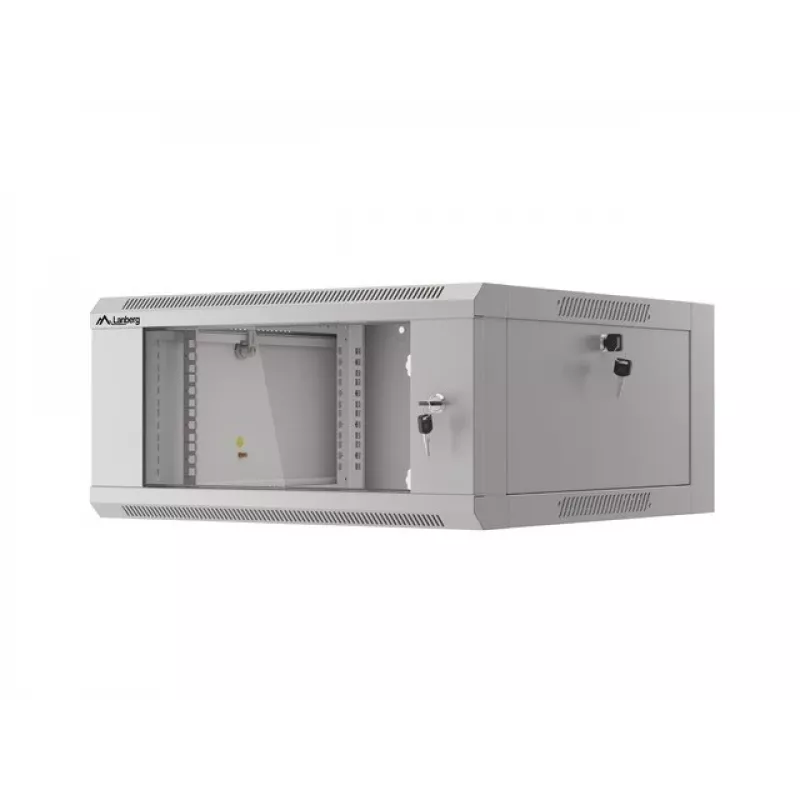

• Material: cold-rolled steel frame, steel side covers

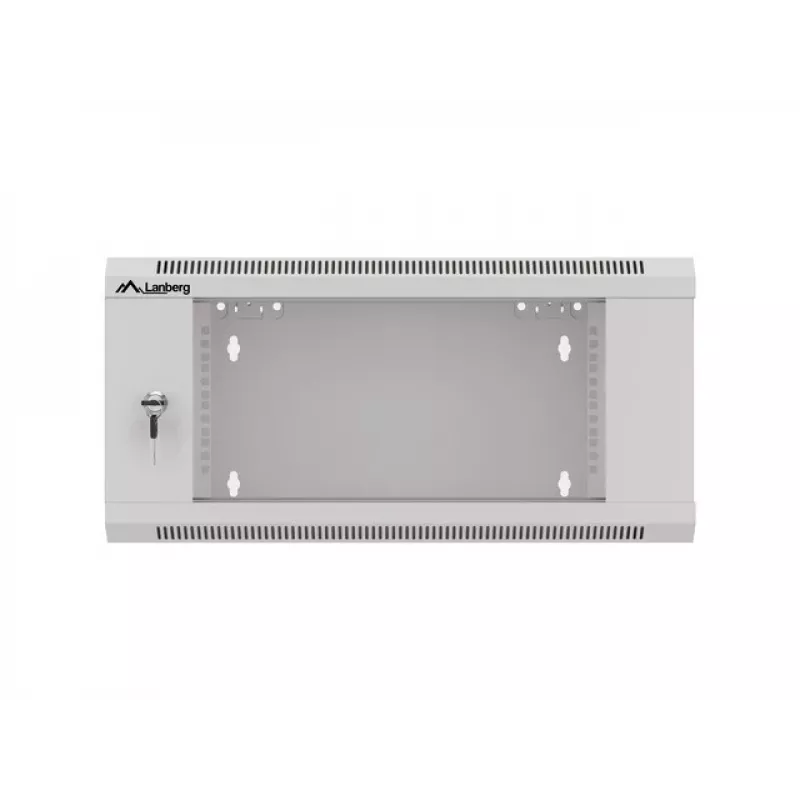

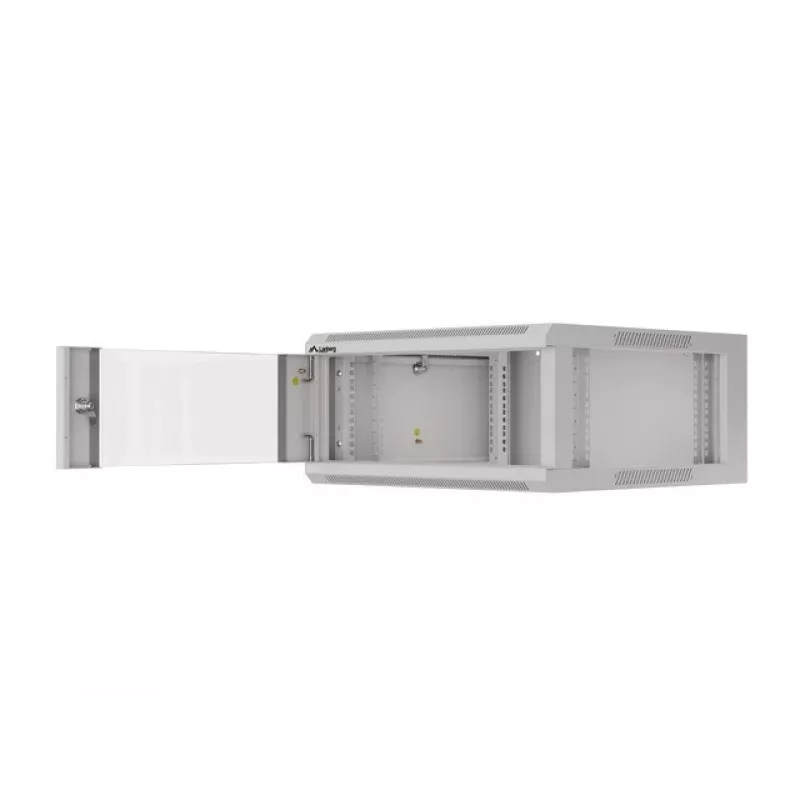

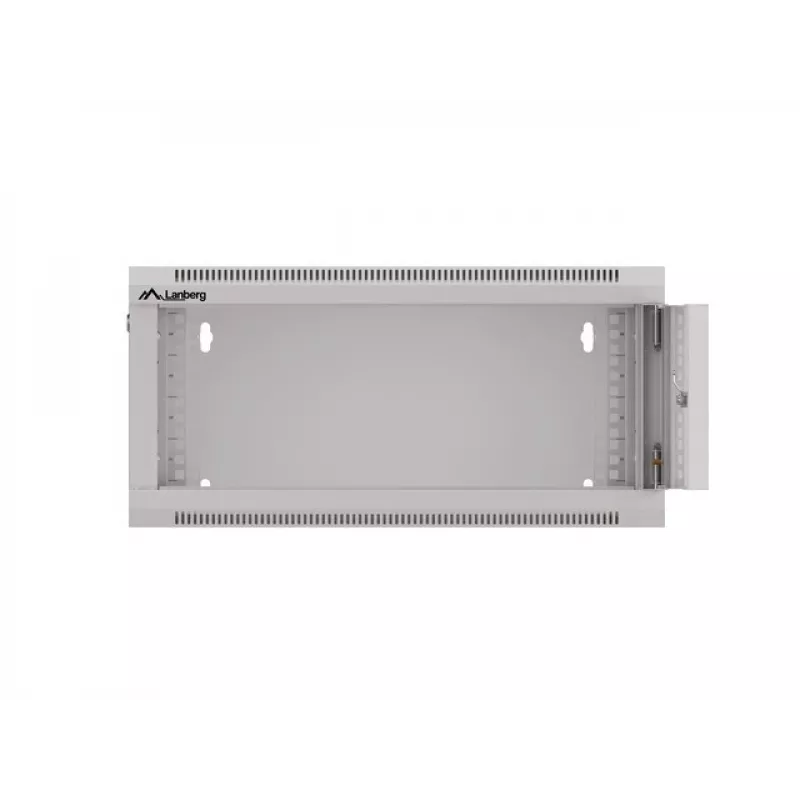

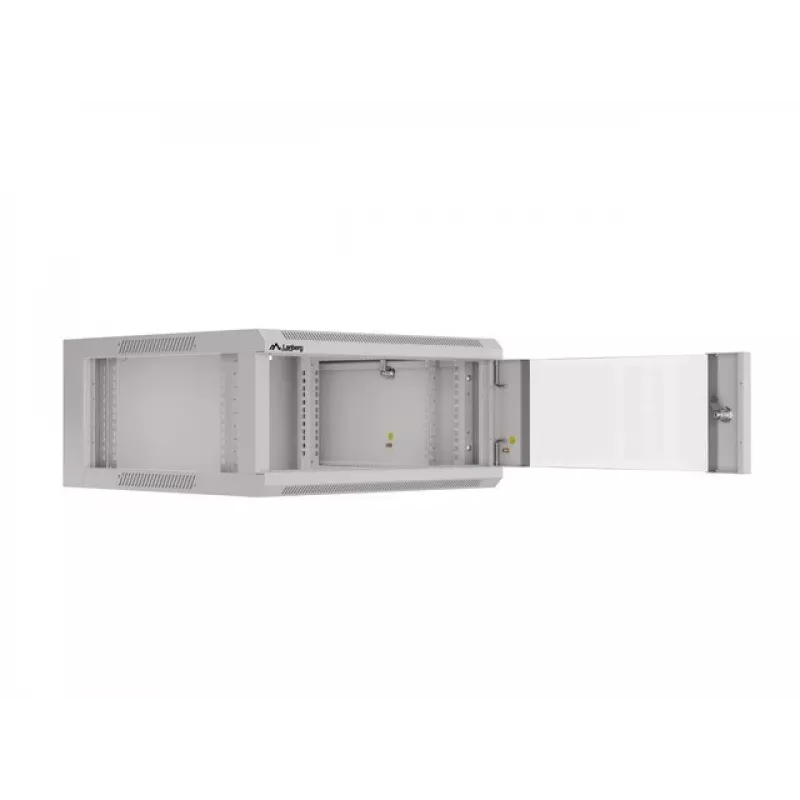

• Front door: tempered glazed door
• Color: gray, matte finish
• Cable entries: 3 removable panels, total dimension 230 x 45 mm
• Assembly: quick self-assembly with reduced number of M6*12 screws (8 for structure)
• Installation: indoor use only

How to use

Mount the cabinet on a suitable indoor wall surface following standard mounting practices for 19" enclosures and local safety regulations. Assemble the cabinet by fastening the internal screws and latches as provided; the design minimizes external screws and allows most fastenings to be completed from the inside. Route cables through the removable entry panels located at the rear edge of the top and bottom panels and through the middle of the rear cover to achieve tidy cabling even in restricted spaces. Fit equipment into the 4U rack space using standard rack rails and mounting hardware.

Recommendations

For safe and reliable operation, verify the load capacity of the mounting surface and distribute device weight evenly. Use appropriate cable management to maintain ventilation and avoid blocking the glazed front door. Install the cabinet in a dry indoor environment and follow local codes for low-current and power cabling when connecting surveillance, access control or alarm systems.
