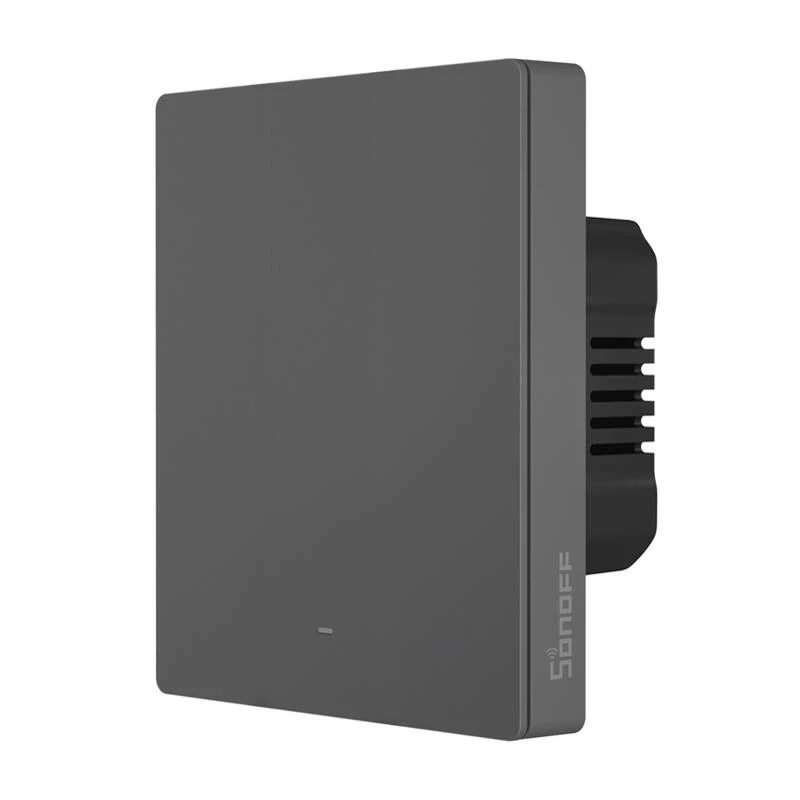

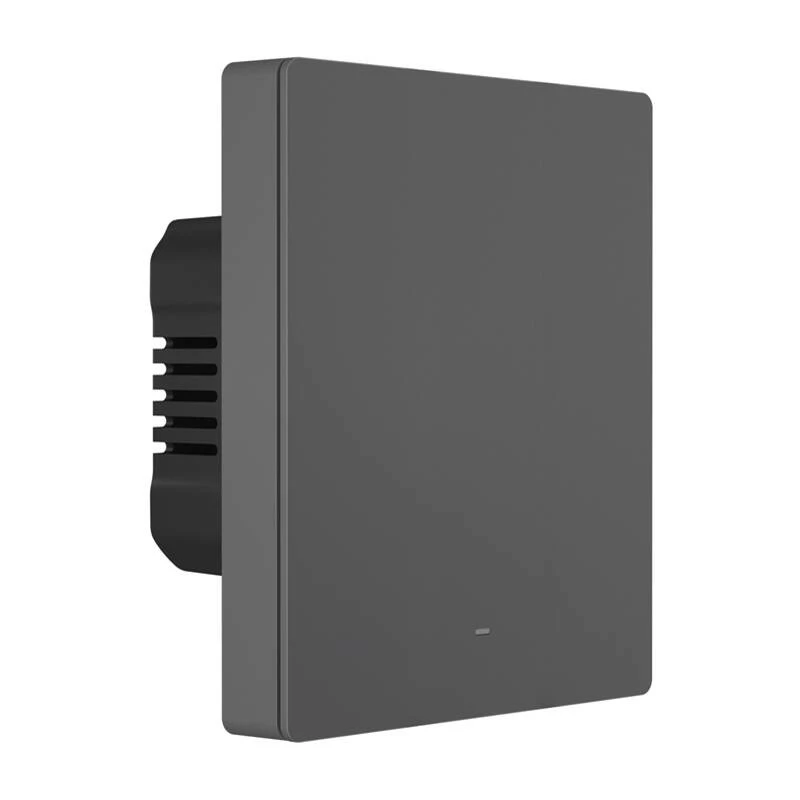

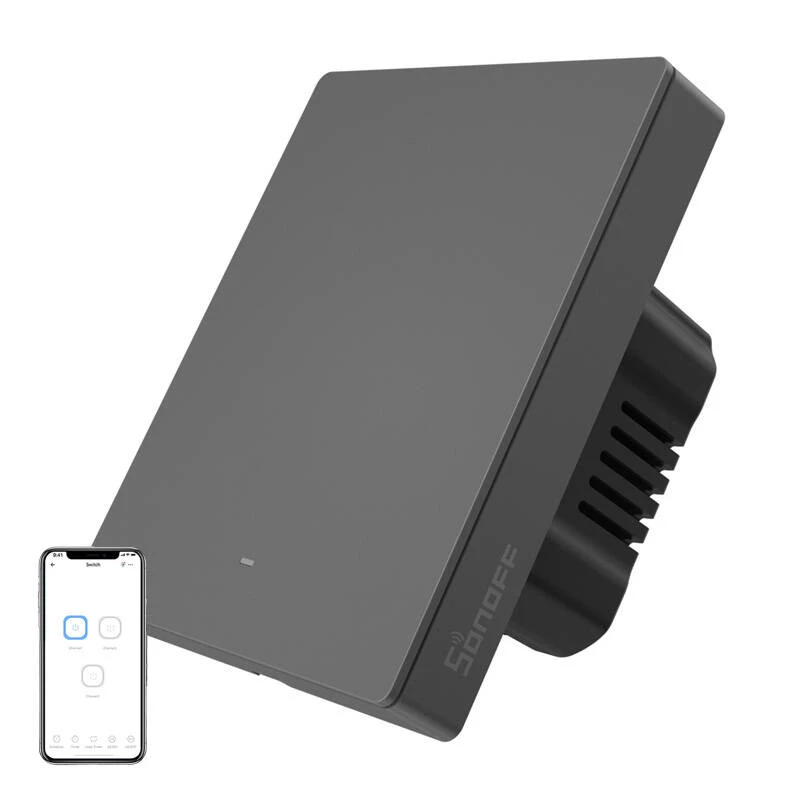

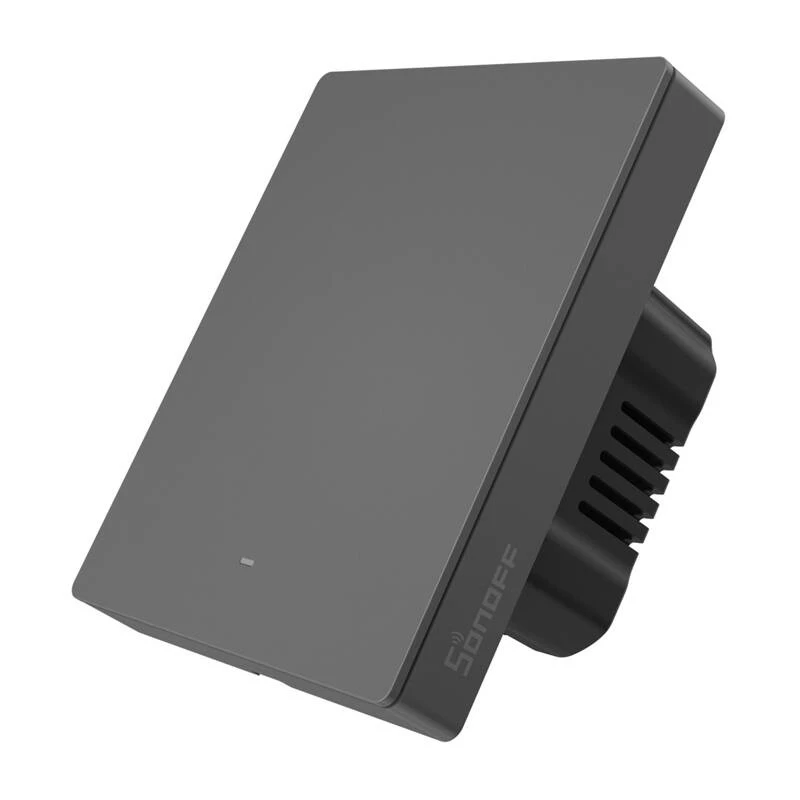

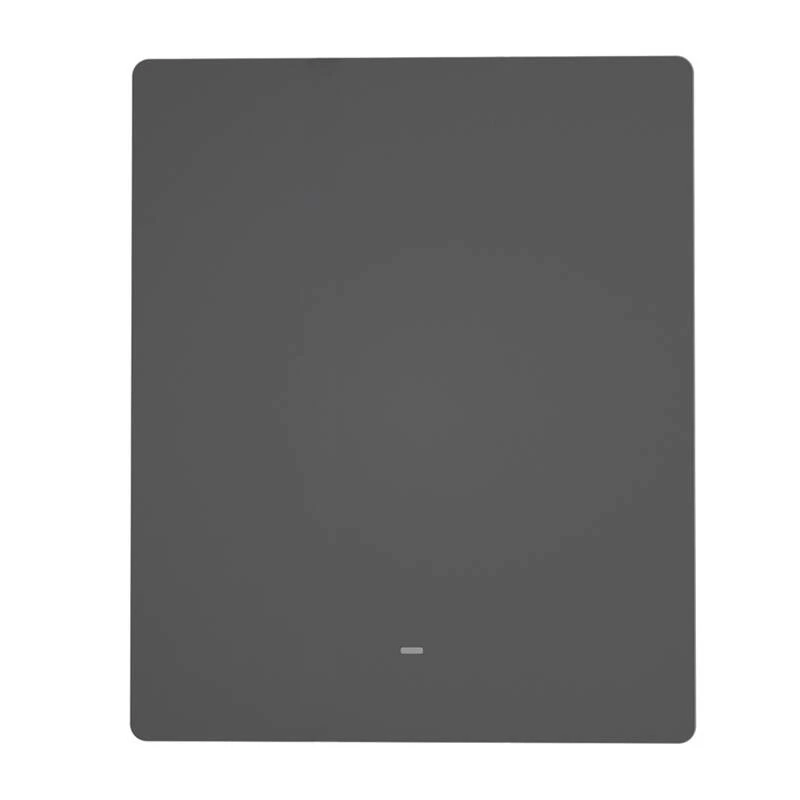

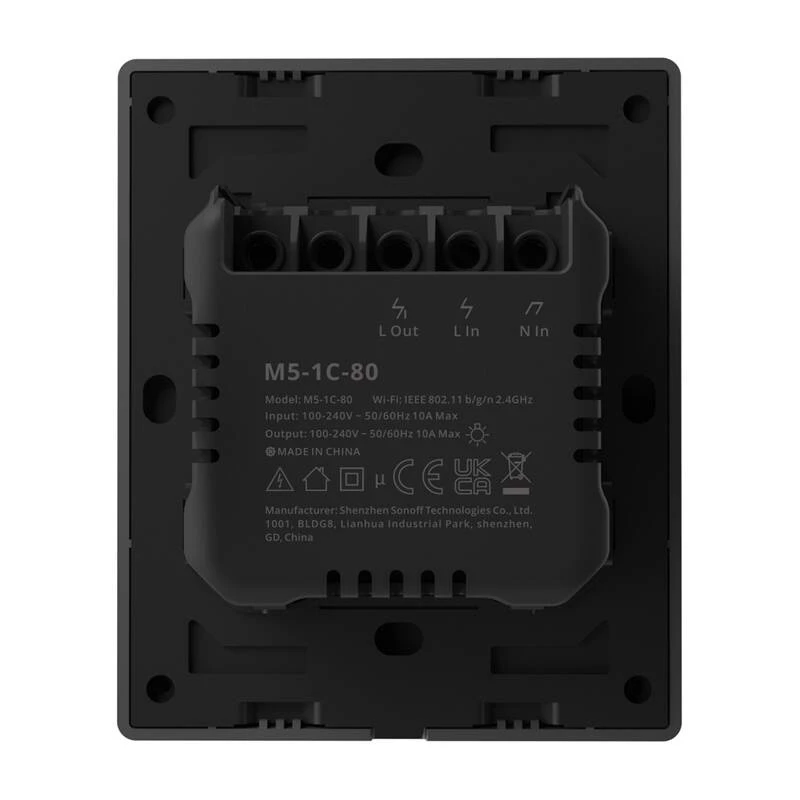

Nástenný vypínač Sonoff M5-1C-80 Wi‑Fi – jednopólový inteligentný vypínač na zapustenú montáž, 1 kanál

Sonoff M5-1C-80 Wi‑Fi smart wall switch, 1 gang, mechanical button. The switch connects to the eWeLink app and supports voice control via Amazon Alexa and Google Assistant, local LAN operation, timers, scenes, device grouping, status sync and sharing. It communicates over 2.4 GHz Wi‑Fi, can replace a regular wall switch, fits into a standard electrical box or the Sonoff M-80 frame (frame sold separately), and includes an adjustable-brightness LED indicator for easy locating in the dark.

Advantages

The Sonoff M5-1C-80 provides reliable remote and local control of lighting and appliances using the eWeLink ecosystem and voice assistants. Mechanical quick-response buttons remain usable in gloves or by elderly users and support two-way or multi-way control when paired with accessories such as the Sonoff Scene Controller R5. The device offers consistent appearance with NSPanel, optional integration with DW2-WiFi sensors for scene automation, and can operate without cloud access via configurable LAN support.

Key specifications

• Compatibility: Sonoff M-80, NSPanel, R5, DW2-WIFI and other Sonoff devices
• Gangs: 1
• Voltage: 100–240 V AC
• Frequency: 50/60 Hz
• Maximum current: 10 A
• Maximum power: 2200 W (300 W LED at 220 V, 150 W LED at 110 V)
• Wi‑Fi: 2.4 GHz, IEEE 802.11 b/g/n
• App: eWeLink (Android, iOS)
• Voice assistants: Amazon Alexa, Google Assistant
• Housing material: PC V0 (flame-retardant)
• Operating temperature: -10 °C to 40 °C
• Operating humidity: 5%–95% RH (non‑condensing)
• Dimensions: 86 × 71 × 41.5 mm
• Weight: 127 g
• Colour: Black
• Certificates: CE, UKCA, RoHS
• Warranty: 24 months

How to use

Install the Sonoff M5-1C-80 in place of an existing single-gang wall switch or into a compatible electrical box. Optionally mount it in a Sonoff M-80 frame (sold separately). Connect the device to a 2.4 GHz Wi‑Fi network and set it up in the eWeLink app following the app instructions. After pairing, configure timers, scenes, grouping and sharing as needed. For multi-way control, pair with the Sonoff Scene Controller R5 or use NSPanel integration. Use the mechanical button for local control or voice commands and app controls for remote operation.

Recommendations

Use only with compatible Sonoff devices and a stable 2.4 GHz Wi‑Fi network. Ensure wiring is performed by a qualified electrician and verify voltage and current limits (max. 10 A, 100–240 V AC). For reliable smart-scene behavior without cloud access, enable local LAN support in the eWeLink app.
