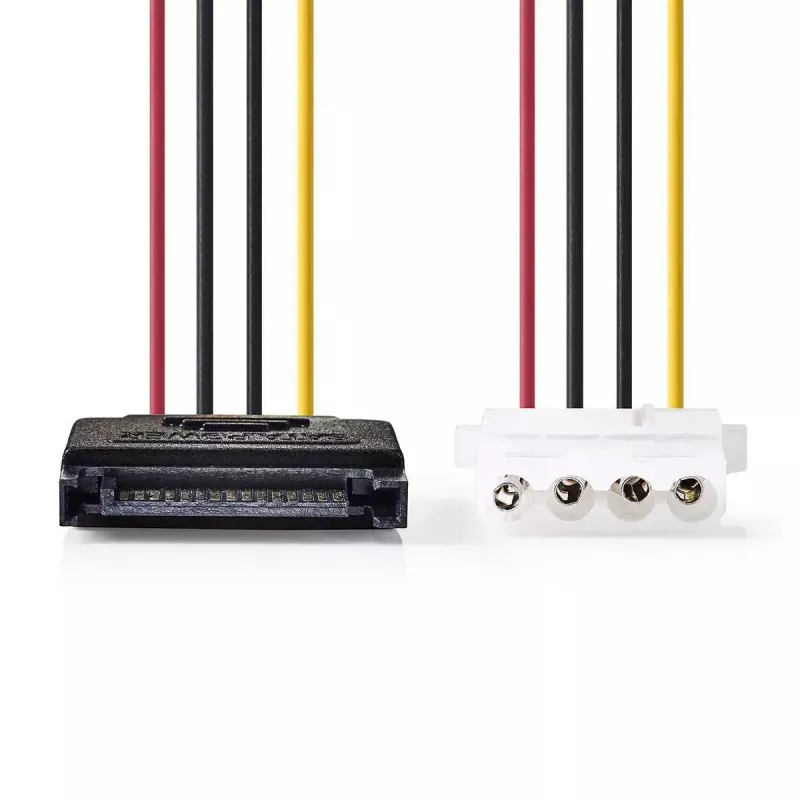

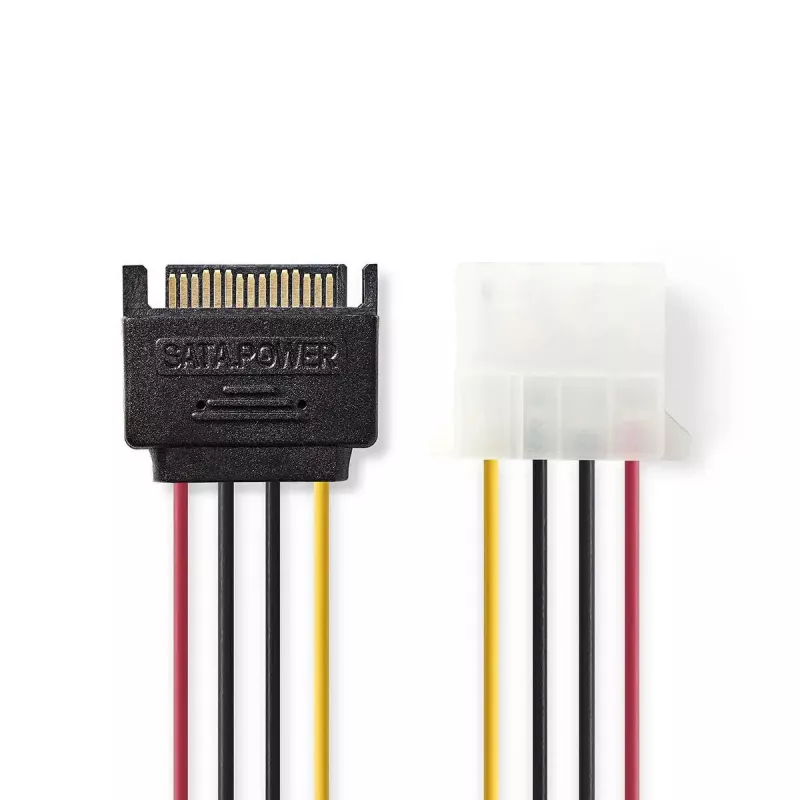

Nedis CCGP73520VA015 interný napájací kábel 0,15 m 2 x SATA 15-pinový Molex 4-pinový

The Nedis CCGP73520VA015 internal power cable (0.15 m) converts a Molex 4-pin output from an ATX power supply into two SATA 15-pin power connectors, allowing power delivery to SATA drives inside a PC chassis. It uses copper conductors with a PVC jacket and is available in white, yellow, red and black conductor colours.

Advantages

Short length (0.15 m) minimises cable clutter near drives and inside small cases while providing direct power conversion from a Molex 4-pin connector to two SATA power connectors. Copper conductors and PVC insulation ensure stable electrical conductivity and basic mechanical protection. The cable supports common internal SATA drive power requirements without additional adapters.

Suitable for

• Powering 2 internal SATA hard drives or SSDs from a single Molex 4-pin connector
• Small form-factor PC builds where a short internal cable is needed
• Replacing or extending existing internal power wiring when SATA connectors are required

Key specifications

• Cable length: 0.15 m
• Connector 1: 2 x SATA 15-pin
• Connector 2: Molex (4-pin)
• Conductors: Copper
• Jacket: PVC
• Product colours: White, Yellow, Red, Black

How to use

Connect the Molex 4-pin plug to an available Molex power output from the ATX power supply. Route the short cable to the drive bay and attach the two SATA 15-pin connectors to the power sockets of the SATA drives. Ensure connectors are fully seated and do not force them; power off the system before installation or removal.

Recommendations

Use this cable only for internal PC connections and within its intended electrical ratings; avoid stretching the cable and keep it away from moving parts or sharp edges. If multiple drives draw high current, verify the power supply can deliver sufficient power through the Molex connector.
