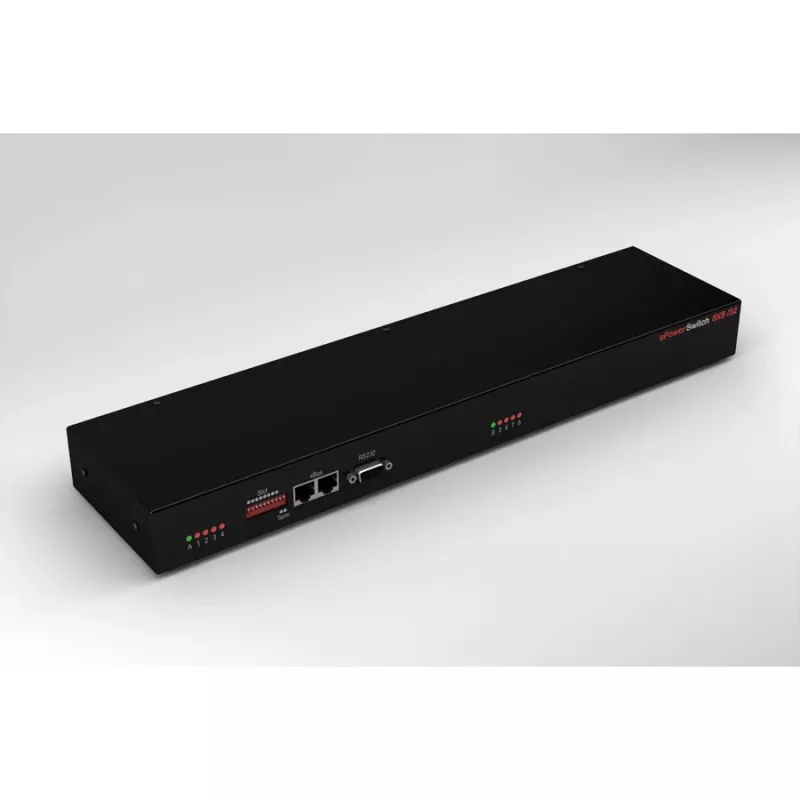

Neol ePower Switch 8XS/32-EU Managed PDU - 8x IEC C13 zásuvky, 32A, 1U racková montáž

The Neol ePower Switch 8XS/32-EU is a high-performance managed Power Distribution Unit (PDU) designed for professional data centers and server rooms. With 8 individually switchable IEC C13 outlets and a robust 32A input, this 1U rackmount PDU provides precise remote power control and real-time energy monitoring. Built with a steel chassis and featuring an integrated circuit breaker, it ensures reliable power distribution and overload protection for critical IT equipment.

Advantages

Individual outlet switching allows remote power cycling of connected devices, reducing downtime and enabling efficient power management. Comprehensive metering (current, voltage, power, energy) helps optimize power usage and capacity planning. The PDU supports SNMP v1/v2c/v3, HTTP/HTTPS, SSH, and other protocols for seamless integration into existing network management systems. Security features include user authentication, IP access control, and SSL/TLS encryption.

Suitable for

• Data centers and server rooms requiring remote power management
• Network cabinets with 19-inch racks (1U height)
• IT environments needing individual outlet control and energy monitoring
• Applications with high power density up to 7360W (at 230V)

Key specifications

• Product Type: Managed PDU (Switched & Metered)
• Number of Outlets: 8x IEC C13
• Input Connector: IEC C20
• Input Voltage: 200-240V AC
• Maximum Current: 32A
• Max Power: 7360W (at 230V)
• Management: Ethernet (RJ45), SNMP, HTTP/HTTPS, SSH, Telnet, SMTP, NTP, DHCP, DNS
• Metering: Total Current, Voltage, Power, Energy (kWh)
• Overload Protection: Integrated 32A Circuit Breaker
• Mounting: 1U Rackmount
• Display: LED indicators for power, network, outlet status
• Security: User authentication, IP access control, SSL/TLS
• Environmental Monitoring: Support for external sensors (optional)
• Firmware: Field-upgradable via network
• Chassis Material: Steel
• Certifications: CE, RoHS
• Operating Temperature: 0°C to 50°C

Recommendations

For optimal performance, pair with a compatible UPS and ensure proper ventilation in the rack. The PDU supports daisy-chaining for expanded outlet capacity. Use the included mounting brackets for secure 1U installation.
