Neomounts WL35S-910BL16 stĺpový držiak na TV 40-75" – naklápací – uzamykateľný – Ø 25-100 cm

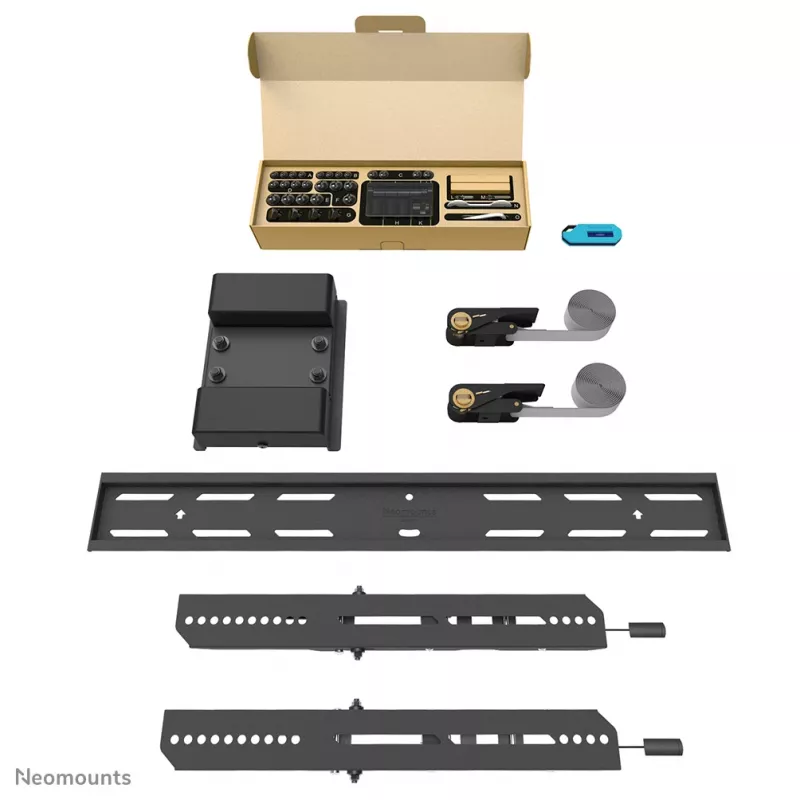

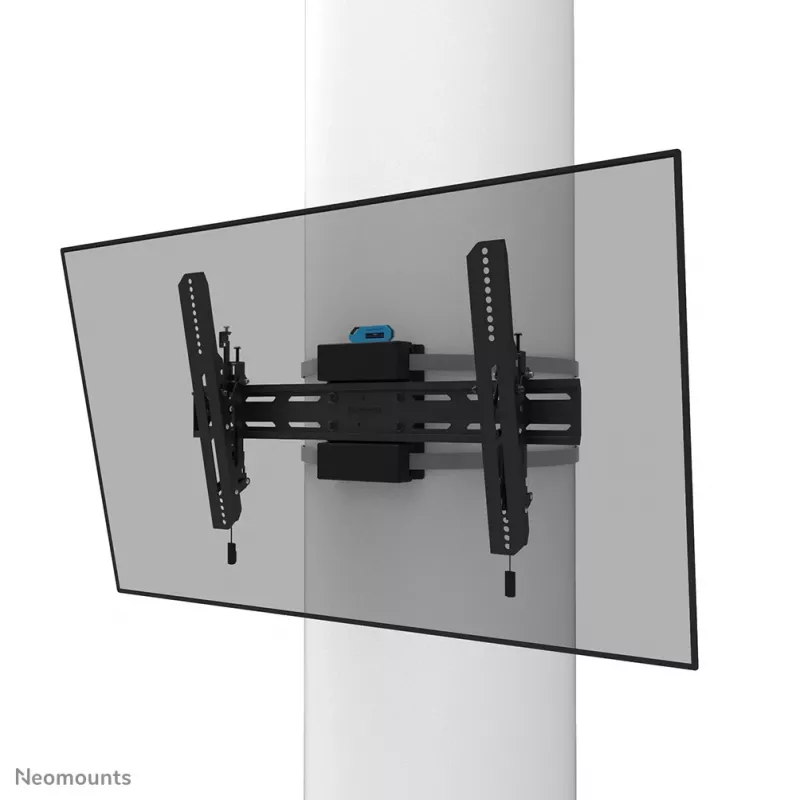

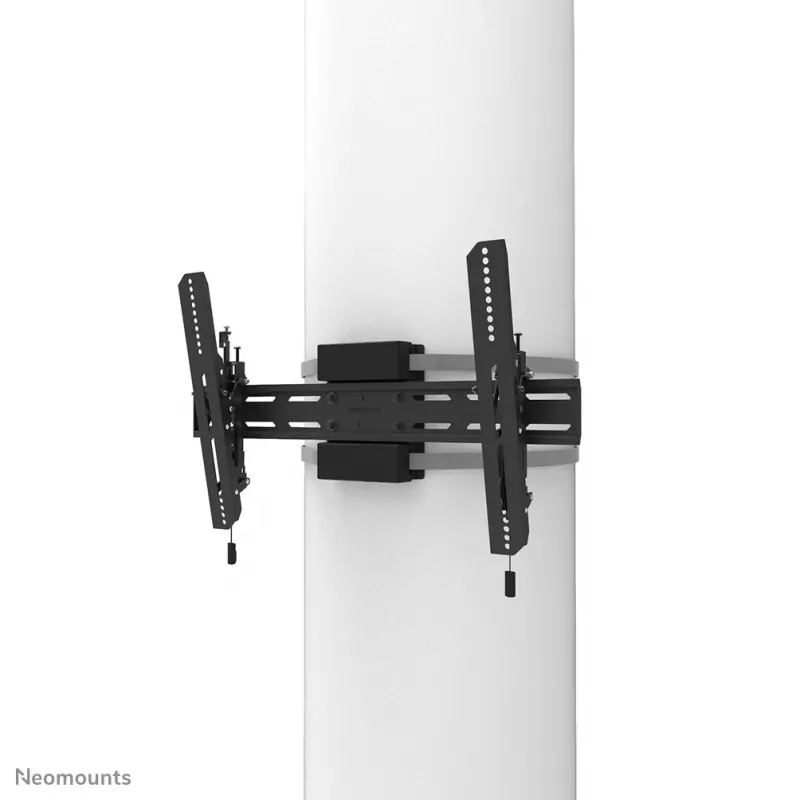

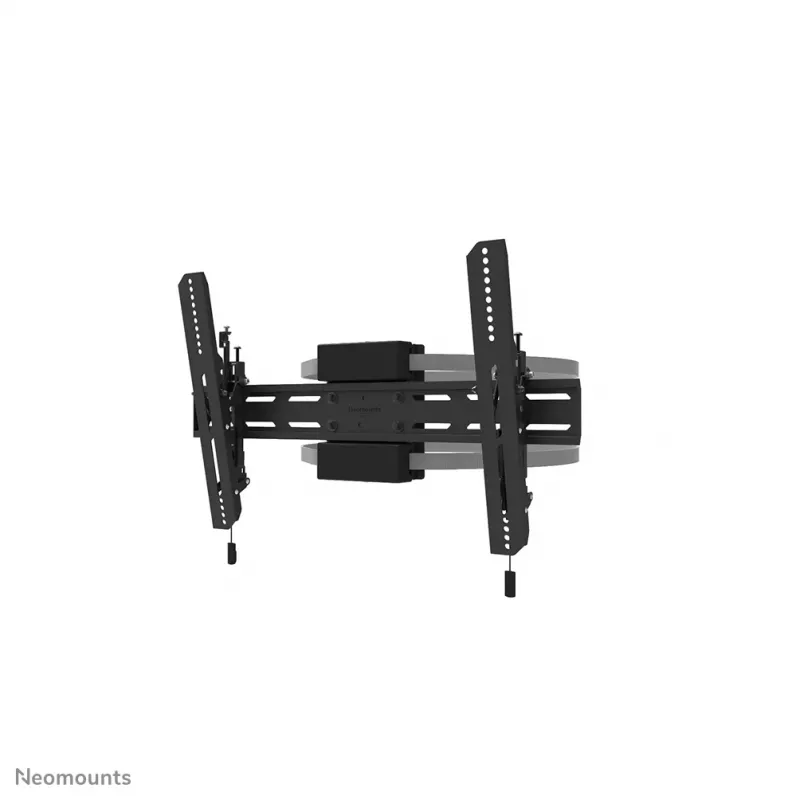

The Neomounts WL35S-910BL16 is a tiltable pillar mount for TVs from 40" up to 75" with a maximum load capacity of 50 kg. It fits VESA hole patterns from 300 x 100 mm to 600 x 400 mm and is compatible with cylindrical, square and rectangular pillars with diameters or side lengths between 25 and 100 cm. The mount has a shallow depth of 6.9 cm and includes a 350 cm strap that can be secured with the supplied anti-theft screw or with a padlock (padlock not included).

Advantages

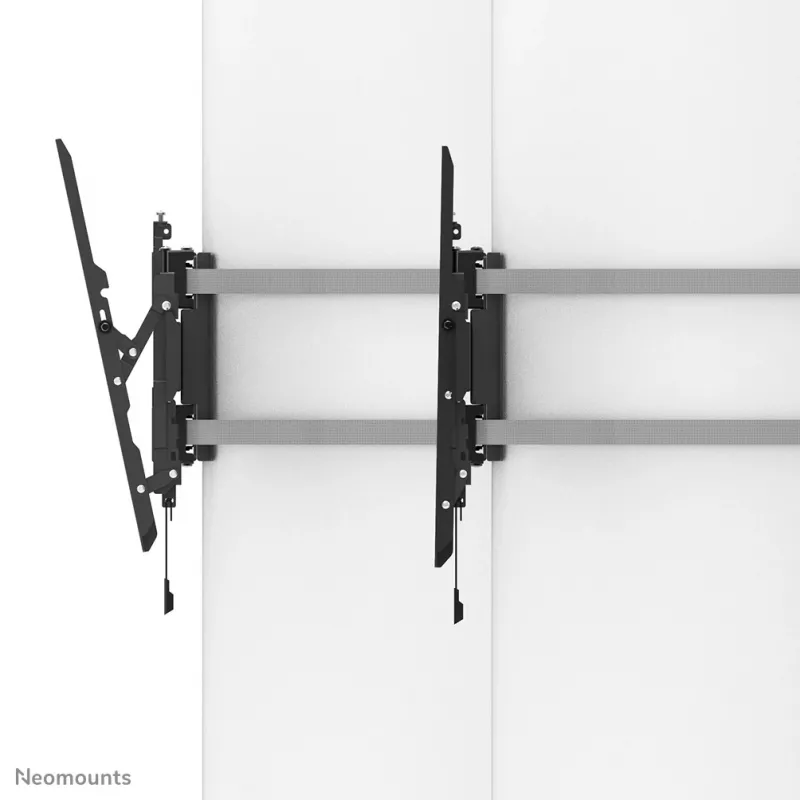

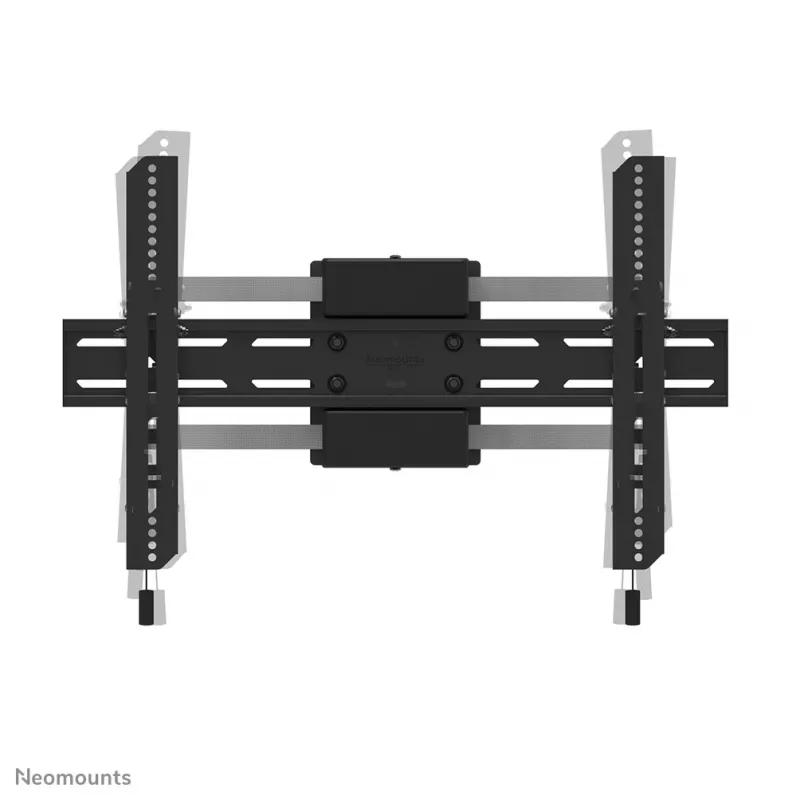

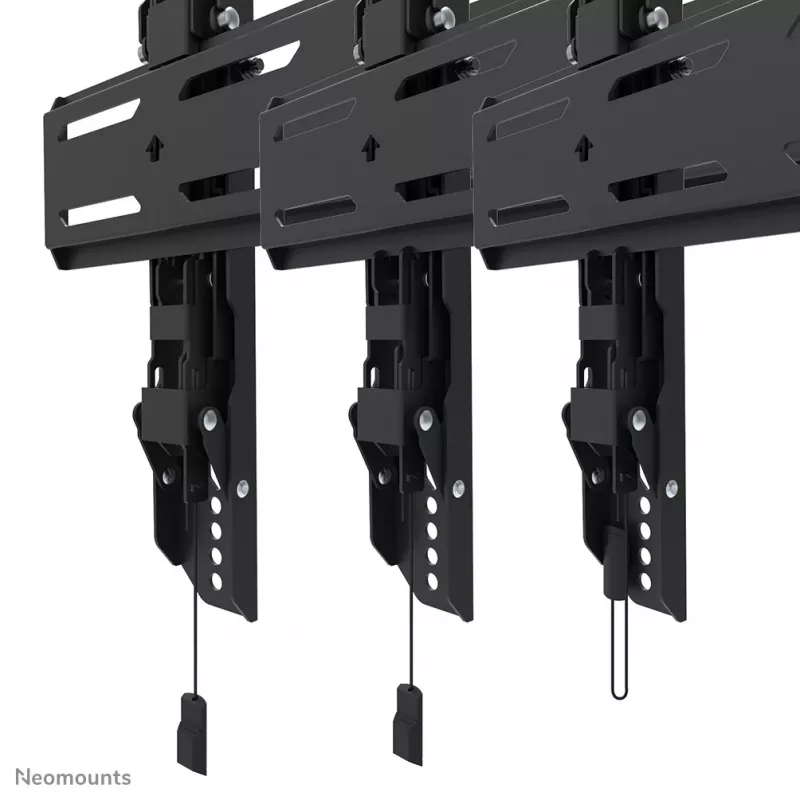

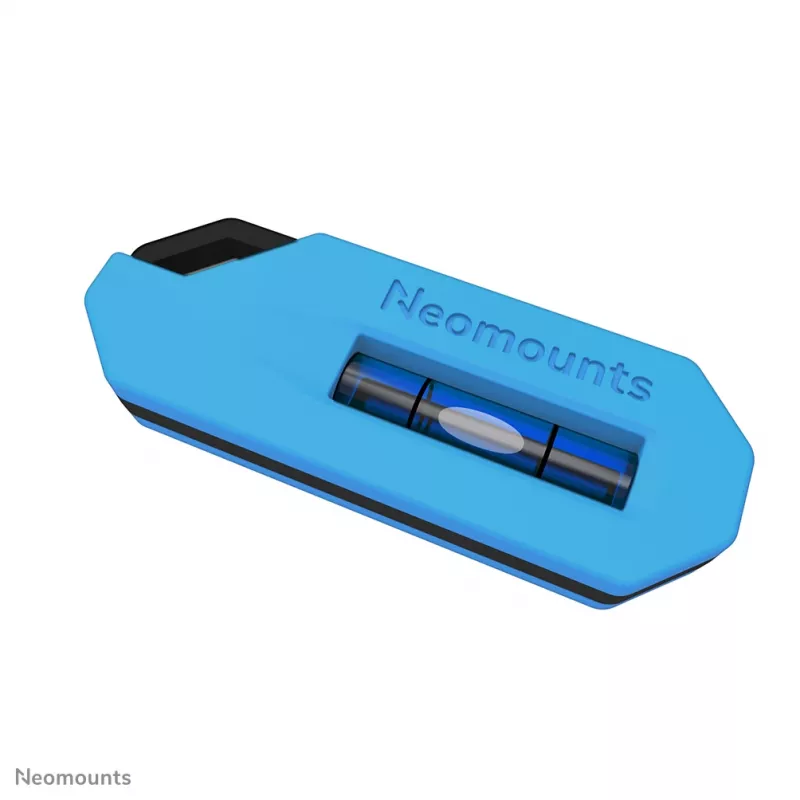

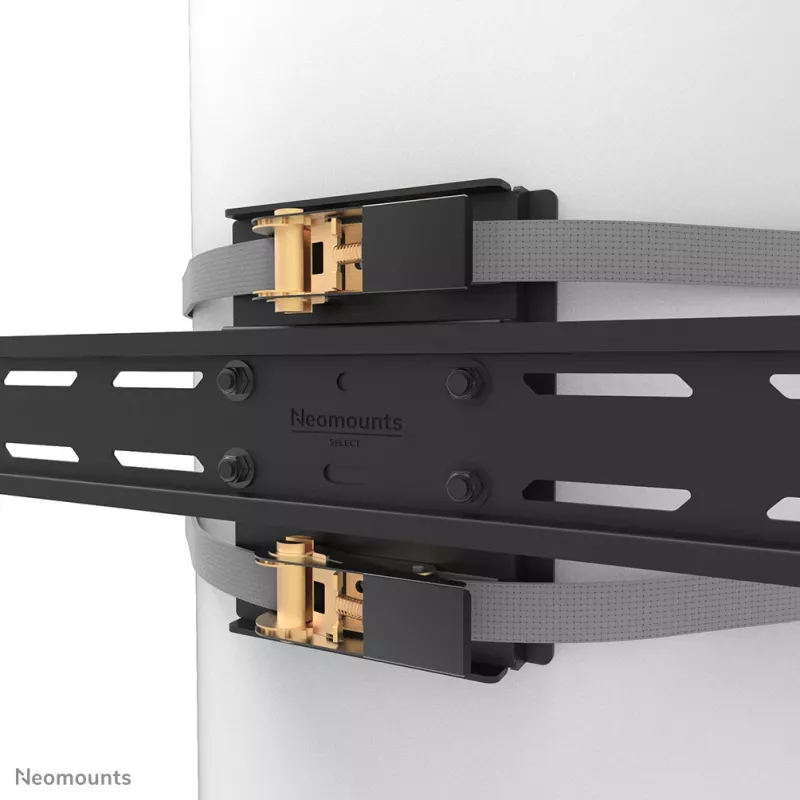

The mount offers a 12° tilt range and a 6° rotation option to help achieve an optimal viewing angle. A magnetic pull-and-release system enables fast and secure attachment of the screen, while the pull straps can be hidden behind the display by snapping the magnet to the mount. Height and level can be adjusted individually for precise positioning, and the included magnetic spirit level simplifies alignment. Installation is facilitated by a ratchet clamp mechanism.

Suitable for

• Mounting TV screens from 40" to 75"
• Displays with VESA patterns 300 x 100 mm up to 600 x 400 mm

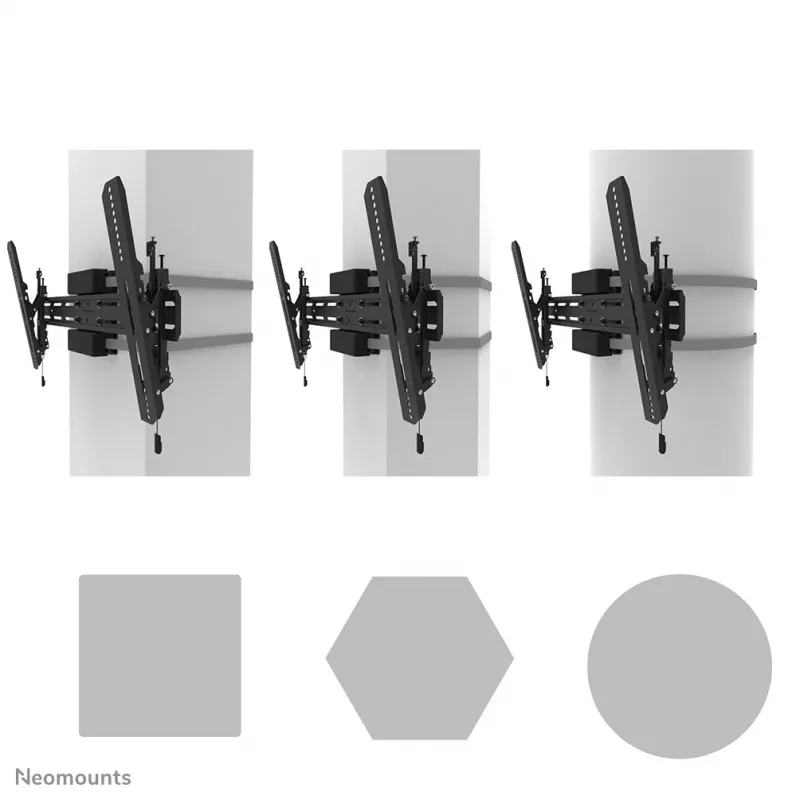

• Pillars or posts with Ø or side length 25–100 cm (cylindrical, square, rectangular)
• Indoor installations requiring theft protection with strap or padlock

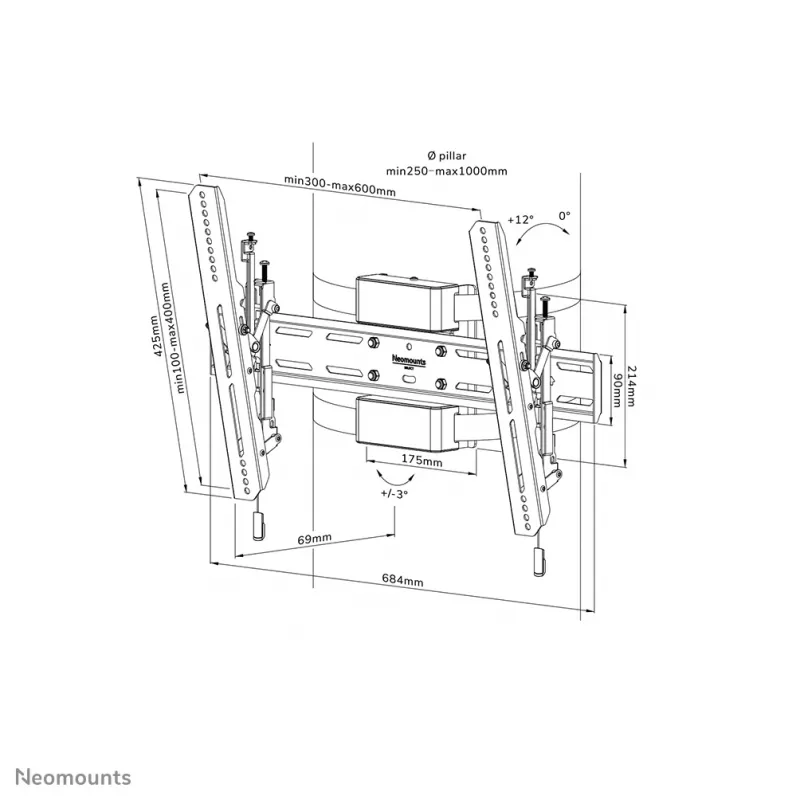

Key specifications

• Maximum screen size: 75"
• Supported VESA: 300 x 100 mm to 600 x 400 mm
• Maximum load capacity: 50 kg
• Distance to pillar / depth: 6.9 cm
• Tilt range: 0–12°; rotation: 6°
• Strap length: 350 cm
• Colour: Black
• Product weight: 4.75 kg

How to use

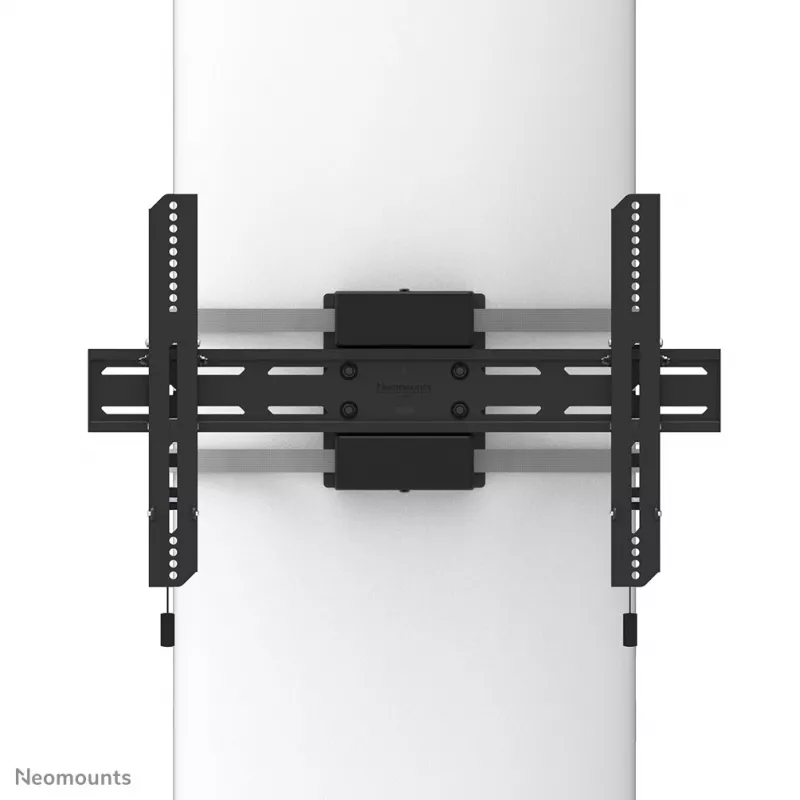

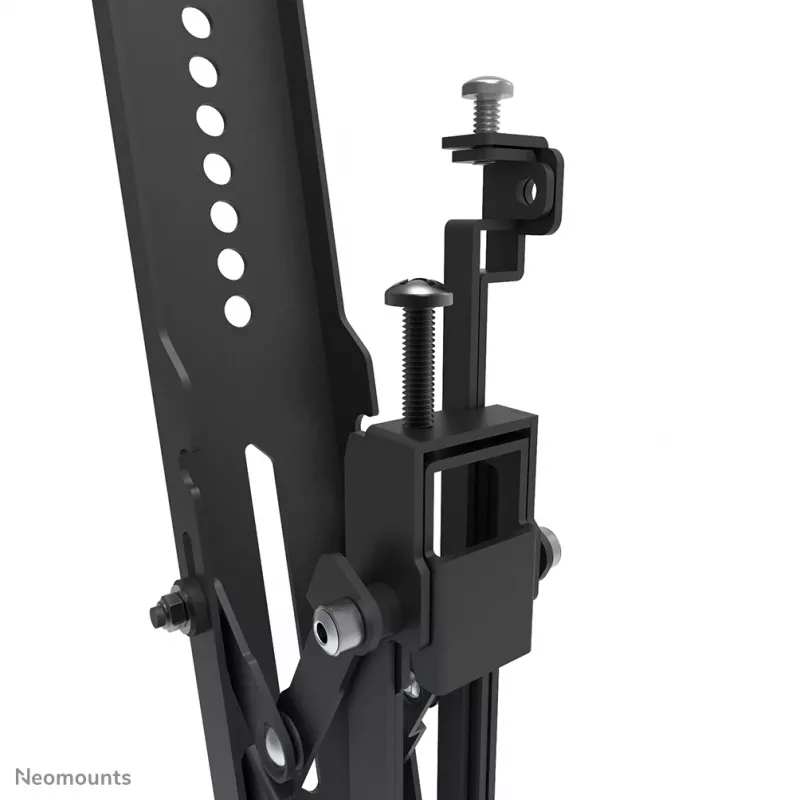

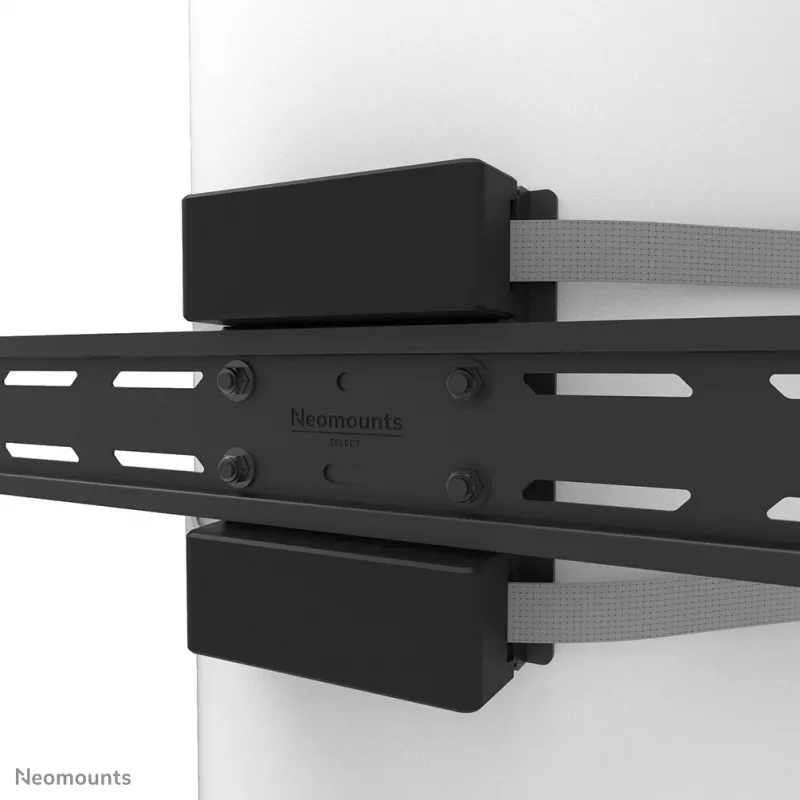

Attach the bracket to a pillar with diameter or side length between 25 and 100 cm using the ratchet clamp and strap. Fix the display to the mount by aligning its VESA holes (300 x 100 mm up to 600 x 400 mm) with the mounting interface and use the magnetic pull-and-release system to secure the TV. Adjust the height and level as needed using the provided adjustment points and check alignment with the included magnetic spirit level. Lock the strap with the supplied anti-theft screw or a padlock if additional security is required.

Recommendations

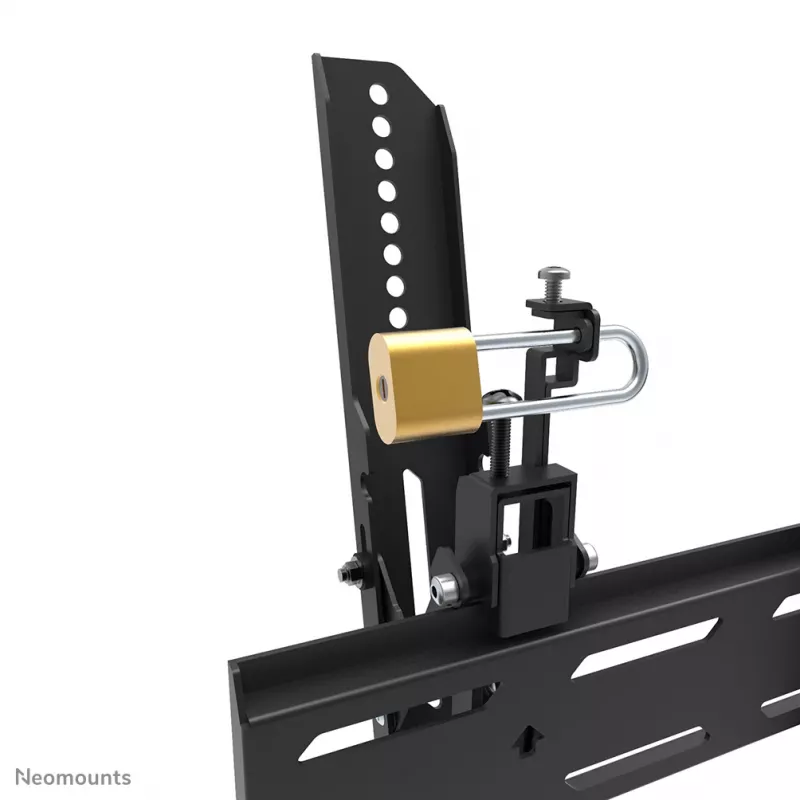

Ensure the combined weight of the TV and any accessories does not exceed the 50 kg maximum. Verify the TV's VESA pattern and pillar dimensions before installation. For outdoor or public-area installations, use a padlock (not included) in addition to the anti-theft screw for improved security.
