Nespravovaný switch Trendnet TI-PG80

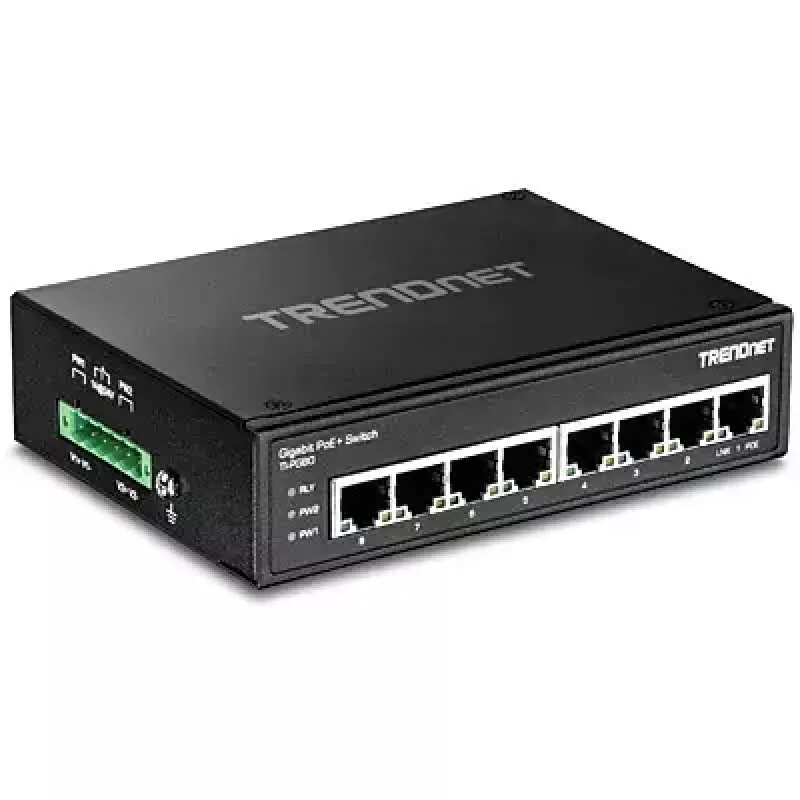

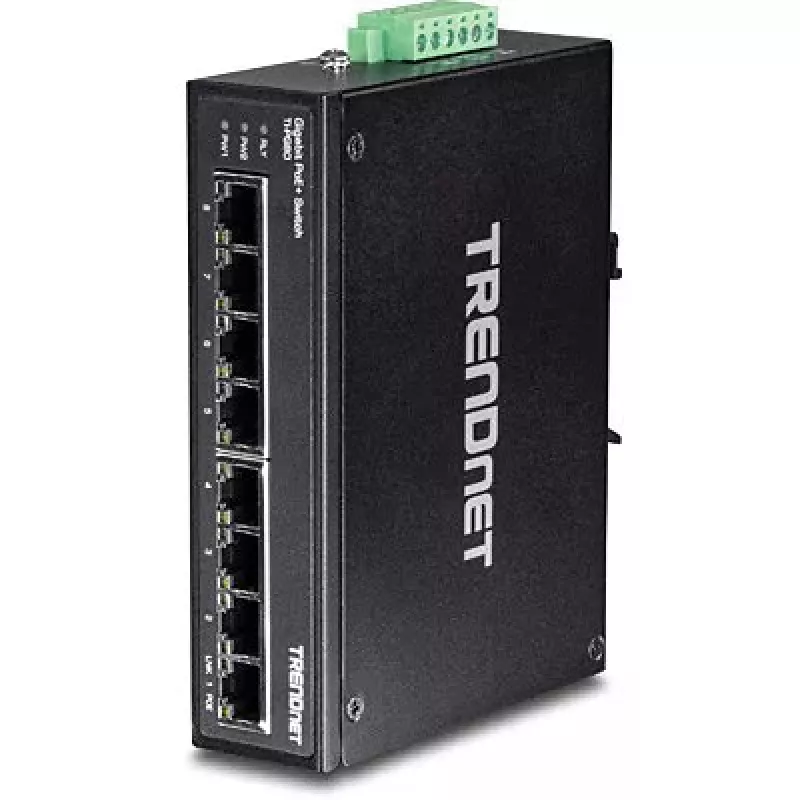

The TRENDnet TI-PG80 is an unmanaged IP30-rated PoE+ DIN-rail switch designed for industrial networking. It provides eight Gigabit PoE+ (802.3at/802.3af) RJ-45 ports with a total PoE power budget of up to 200 Watts, a 16 Gbps switching capacity and a MAC address table supporting 8,000 entries. The hardened metal housing and an operating temperature range from -40 to 75 °C make the TI-PG80 suitable for harsh environments; the unit includes DIN-rail and wall mounts.

Advantages

The TI-PG80 delivers full Gigabit connectivity with PoE+ on all eight ports while remaining unmanaged for simple deployment. Its IP30-rated metal construction, wide operating temperature range and dual redundant power inputs support reliable operation in industrial settings. A power failure alarm output and overload current protection add resilience for critical installations.

Suitable for

• Industrial automation networks
• Surveillance camera installations requiring PoE+
• Network edge or local aggregation in harsh environments
• Remote sites where DIN-rail mounting is required

Key specifications

• Ports: 8 x Gigabit Ethernet (10/100/1000) with PoE+ (802.3at/802.3af)
• PoE power budget: up to 200 Watts
• Switching capacity: 16 Gbps
• MAC address table: 8,000 entries

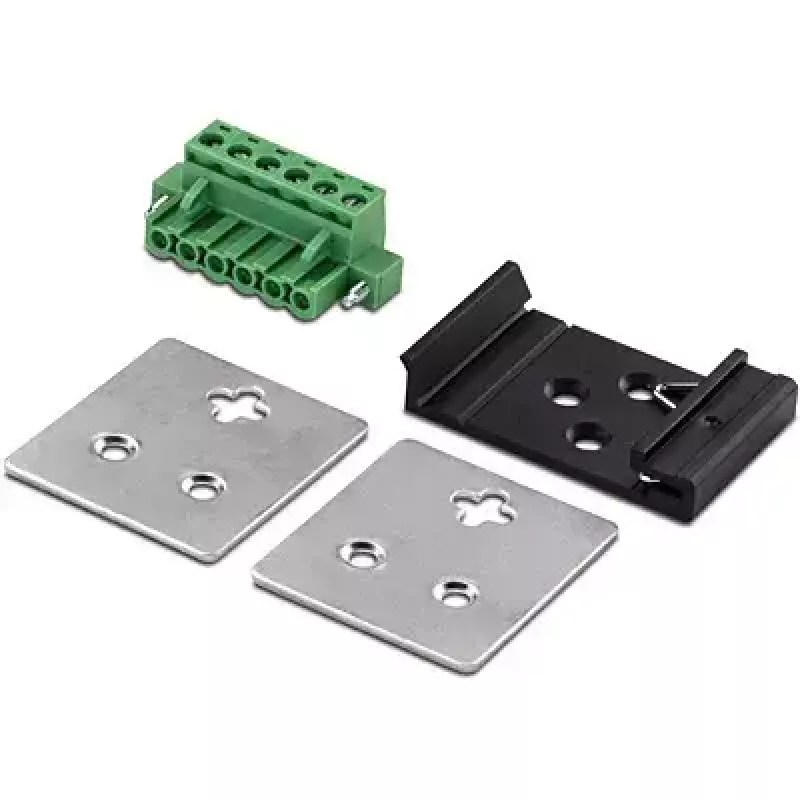

• Form factor: IP30 hardened metal, DIN-rail and wall mountable
• Operating temperature: -40 to 75 °C (-40 to 167 °F)
• Redundant power inputs (power supply sold separately, TI-S24048) and power failure alarm output
• Weight: 0.554 kg
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
• Color: Black

How to use

Mount the TI-PG80 on a DIN rail or wall using the included brackets. Connect network devices to the eight Gigabit RJ-45 ports; PoE-capable devices will receive power automatically when the switch is provided with an appropriate PoE power source. Install a compatible redundant power supply (recommended TI-S24048 sold separately) to enable the dual power input and alarm output functions. No configuration is required for basic switching operations.

Recommendations

For reliable PoE+ operation, plan power allocation so the total connected PoE load does not exceed the 200 W budget. Use the redundant power input and an appropriate industrial power supply in locations with unstable mains; observe the specified operating temperature range and ensure proper ventilation.
