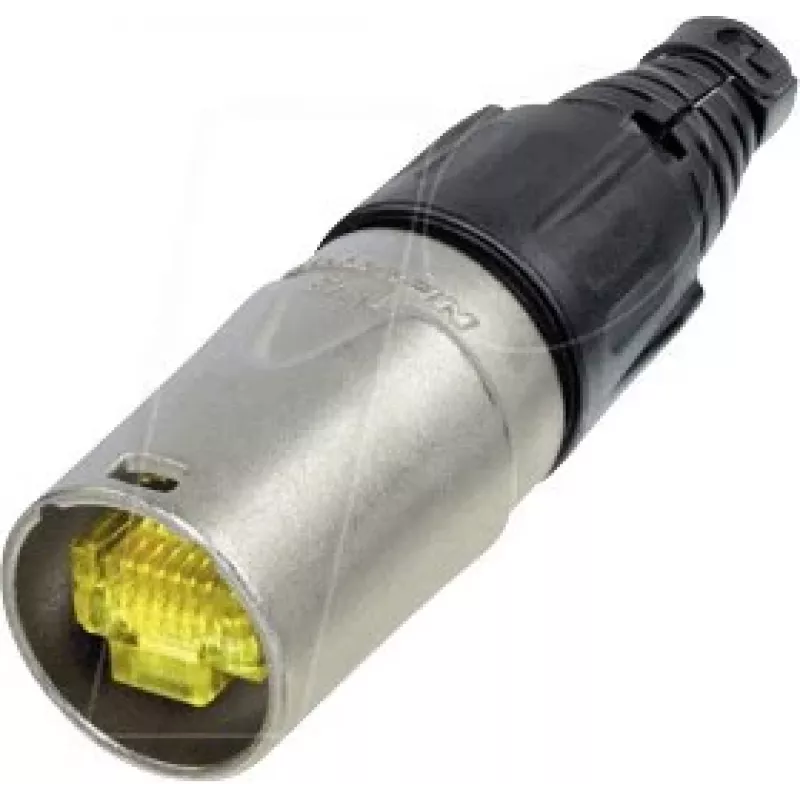

Neutrik NE8MX-1 etherCON nosič káblového konektora pre RJ45 konektor

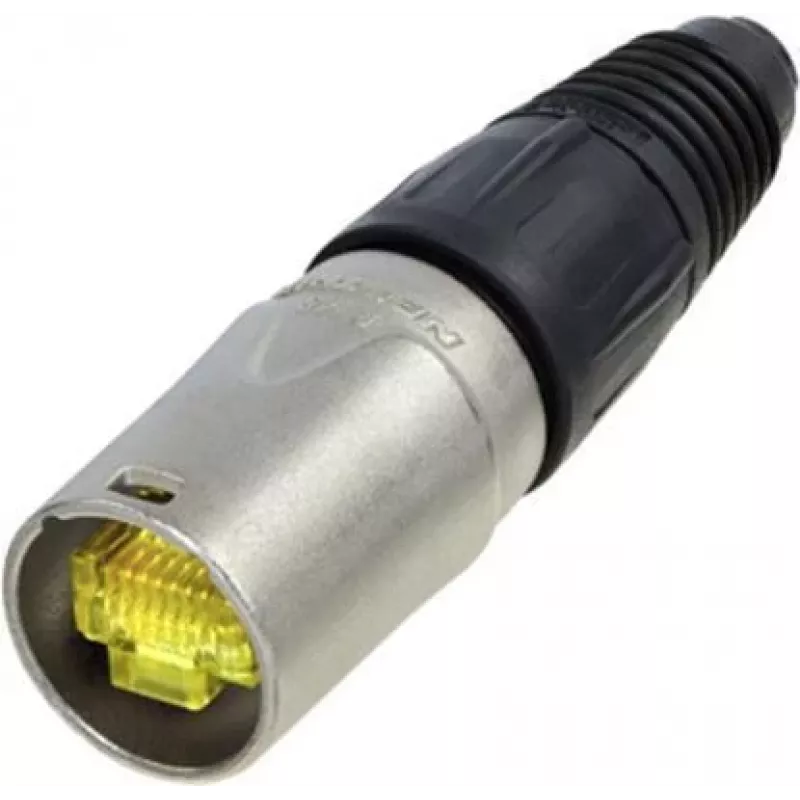

Standard RJ45 plugs are fragile and easily disconnected in professional environments. The Neutrik NE8MX-1 etherCON Cable Connector Carrier solves this by providing a rugged, lockable housing for non pre-assembled RJ45 connectors. It converts a standard RJ45 plug into a robust etherCON connector suitable for demanding audio, video, and data applications.

Who is it for

AV technicians, network engineers, and system integrators who need reliable Ethernet connections in stage, studio, or industrial settings. It is ideal for building custom cables with standard RJ45 plugs while gaining the durability and locking security of the etherCON system.

Main features

• Nickel-plated diecast shell for mechanical protection
• Latch lock prevents accidental disconnection
• Compatible with standard non pre-assembled RJ45 plugs
• Includes shell, bushing, and boot
• Boot made of polyurethane (PU) for strain relief
• Bushing made of polyamide (PA 6.6)
• IP54 protection when mated with NE8FDY-C6 or NE8FDX-P6 chassis connectors
• Accepts cable outer diameter from 3.5 mm to 8.0 mm

Specifications

• Product type: RJ45 Cable Connector Carrier
• Connector series: Neutrik etherCON
• Locking mechanism: Latch lock
• Shell material: Nickel-plated diecast
• Boot material: Polyurethane (PU)
• Bushing material: Polyamide (PA 6.6)
• IP protection rating: IP54 (when mated with NE8FDY-C6 or NE8FDX-P6)
• Cable outer diameter range: 3.5 - 8.0 mm
• Temperature range: -30 °C to +80 °C
• Mating cycles: > 1000
• Dielectric strength: 1 kVDC
• Insulation resistance: > 0.5 GΩ
• Contact resistance: < 10 mΩ (for RJ45 connection)
• Flammability rating: UL94 V-0
• Standard compliance: IEC 60603-7, TIA/EIA 568B, ISO/IEC 11801

Tips

Use this carrier with standard RJ45 plugs that have not been pre-assembled. For complete etherCON connectivity, pair with Neutrik NE8FDY-C6 or NE8FDX-P6 chassis connectors to achieve IP54 protection.
