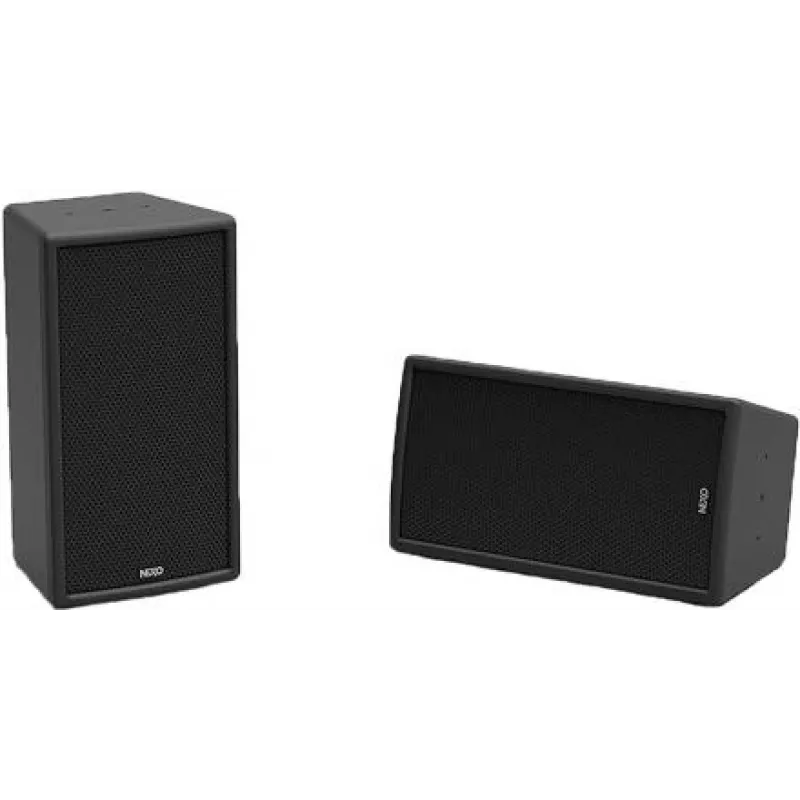

NEXO EPS6-EN54 High-Performance bodový reproduktor EN54-24 certifikovaný

The NEXO EPS6-EN54 is a high-performance passive point source loudspeaker designed for professional voice alarm and sound reinforcement systems. Certified to EN54-24, it delivers exceptional audio clarity and reliability in demanding environments. Featuring a 6.5" long excursion LF driver and a 1.4" diaphragm compression driver, this speaker provides a frequency response of 70 Hz to 20 kHz with a nominal coverage of 90° x 60°. Its robust construction includes a 15 mm Baltic birch plywood cabinet with black textured paint finish and a steel grille with anti-corrosion coating and acoustic fabric. With an IP55 rating, it is suitable for outdoor and harsh indoor installations. The EPS6-EN54 offers a sensitivity of 95 dB SPL and a maximum peak SPL of 125 dB, making it ideal for clear speech reproduction and music playback.

Advantages

EN54-24 certification ensures compliance with European voice alarm standards. The compact yet powerful design allows for discreet integration while delivering high output. The 90° x 60° coverage pattern provides even sound distribution, and the IP55 rating guarantees durability against dust and water ingress. Integrated rigging points and U-bracket compatibility simplify installation.

Suitable for

• Voice alarm systems in commercial buildings, airports, and train stations
• Background music and paging in retail, hospitality, and public spaces
• High-quality sound reinforcement in houses of worship, conference rooms, and auditoriums

Key specifications

• Speaker Type: Passive Point Source Loudspeaker
• EN54-24 Certification: Yes
• Frequency Response (-3dB): 70 Hz - 20 kHz
• Nominal Coverage (H x V): 90° x 60°
• Sensitivity (1W/1m): 95 dB SPL
• Max Peak SPL (1m): 125 dB
• Nominal Impedance: 8 Ohms
• Recommended Amplifier Power: 200W - 500W
• LF Driver: 1x 6.5" Long Excursion
• HF Driver: 1x 1.4" Diaphragm Compression Driver (1" throat)
• Crossover Frequency: 1.8 kHz
• Connectors: 2x 2-pole Screw Terminal Block
• IP Rating: IP55
• Cabinet Material: 15 mm Baltic Birch Plywood
• Finish: Black Textured Paint
• Grille: Steel with Anti-Corrosion Coating and Acoustic Fabric
• Mounting: Integrated Rigging Points, U-Bracket Compatible
• Operating Temperature: -20°C to +50°C

Recommendations

For optimal performance, pair the EPS6-EN54 with a compatible NEXO amplifier and use the provided U-bracket for secure mounting. Ensure proper cable connections using the screw terminal blocks. Regular inspection of the grille and cabinet is recommended to maintain IP55 integrity.
