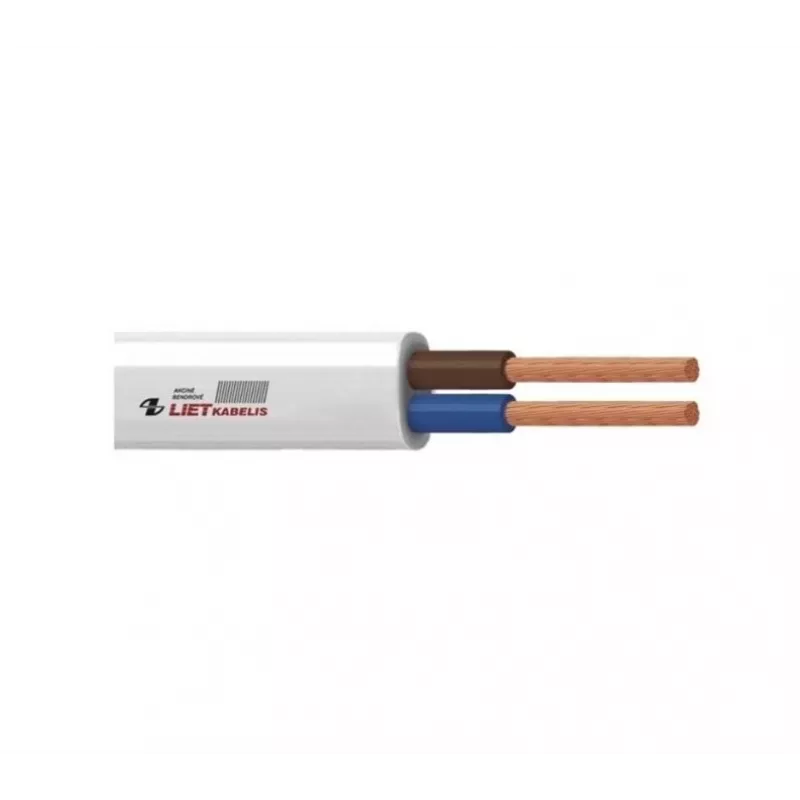

H05VVH2-F 2x1 mm² biely flexibilný PVC plochý kábel, dvojlinka, 50m

Engineered for reliable low-voltage power delivery, this 50-meter H05VVH2-F cable features a flat twin design with 2 cores of 1 mm² cross-section, each composed of flexible Class 5 bare copper conductors. The white PVC insulation and sheath provide a clean, durable finish suitable for light-duty domestic appliances, office equipment, and small tools.

Overview

The H05VVH2-F is a harmonized European standard cable (EN 50525-2-11) rated for 300/500 V. Its separable flat construction allows easy splitting of the two cores when needed, while the self-extinguishing PVC jacket enhances safety. With a maximum conductor temperature of +70°C and an operating range from -5°C to +70°C, it performs reliably in typical indoor environments.

What stands out

• Flexible Class 5 copper conductors for easy routing and installation.
• Flat, separable twin design saves space and simplifies wiring.
• Self-extinguishing PVC sheath for added fire safety.
• 50-meter continuous length reduces the need for joints.
• Complies with harmonized standard EN 50525-2-11.

Technical details

• Cable standard: H05VVH2-F
• Number of cores: 2
• Nominal conductor cross-section: 1 mm²
• Cable length: 50 m
• Sheath colour: White
• Rated voltage (U0/U): 300/500 V
• Insulation material: PVC (Polyvinyl Chloride)
• Sheath material: PVC (Polyvinyl Chloride)
• Conductor material: Bare Copper
• Conductor class: Class 5 (Flexible)
• Cable construction: Flat, Separable (Twin Flat)
• Operating temperature range: -5°C to +70°C
• Maximum conductor temperature: +70°C
• Harmonized standard: EN 50525-2-11
• Flame retardancy: Self-extinguishing
• Typical application: Light duty domestic appliances, office equipment, small tools
• Approximate outer dimensions: 3.6 x 5.8 mm
• Maximum current carrying capacity: 10 A (approximate, depends on installation)

Our verdict

A versatile and compliant cable for everyday low-power connections. Its flexible copper cores and flat profile make installation straightforward, while the 50-meter length offers excellent value for multiple projects.
