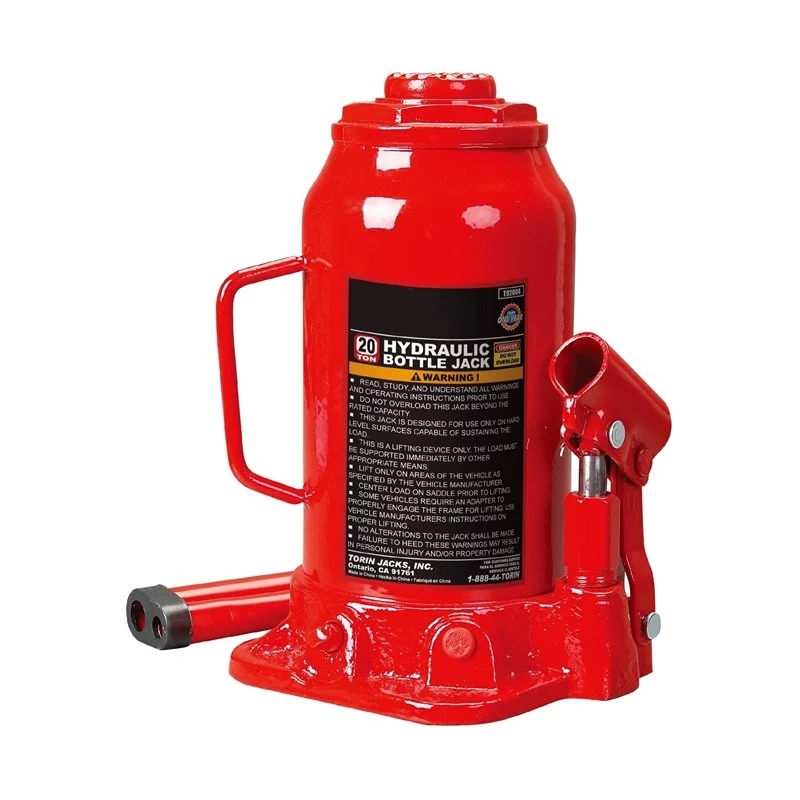

HYDRAULICKÝ ZDVIHÁK TH92004 20T

In a busy automotive workshop, lifting a 20-ton truck for brake service demands a jack that combines strength, stability, and precise control. The HYDRAULIC BOTTLE JACK TH92004 20T delivers exactly that. Its heavy-duty steel construction and 20-ton (40,000 lbs) capacity make it a trusted tool for mechanics, farmers, and industrial maintenance crews who need reliable lifting power day after day.

Key specifications

• Lifting capacity: 20 tons (40,000 lbs)
• Minimum lift height: 245 mm (9.65 inches)
• Maximum lift height: 470 mm (18.5 inches)
• Lifting range: 225 mm (8.85 inches)
• Base dimensions: 155 x 155 mm (6.1 x 6.1 inches)
• Construction: Heavy-duty steel with rust-resistant coating
• Safety: Built-in bypass system prevents over-extension
• Adjustable height: Heat-treated extension screw
• Handle: Two-piece pump handle for efficient operation
• Release: Twist-type release valve for controlled lowering
• Saddle: Serrated saddle for secure load grip
• Piston: Large diameter hydraulic steel cylinder
• Certification: ASME PASE 2019 compliant
• Color: Red

Why choose it

This bottle jack is built for demanding environments. The built-in bypass system protects against overload, while the heat-treated extension screw allows fine height adjustment before lifting. The serrated saddle grips the load firmly, reducing slippage risk. The rust-resistant coating ensures long service life even in harsh conditions. The two-piece handle provides leverage for smooth pumping, and the twist-type release valve gives you precise control when lowering heavy loads.

Ideal use cases

• Lifting trucks, buses, and agricultural machinery
• Industrial equipment maintenance and repair
• Farm and workshop applications
• Construction site lifting tasks

Good to know

The jack meets ASME PASE 2019 safety standards, ensuring reliable performance. Always use on a firm, level surface and follow the manufacturer's instructions for safe operation. The compact bottle design allows storage in tight spaces, making it a practical addition to any service vehicle or workshop.
