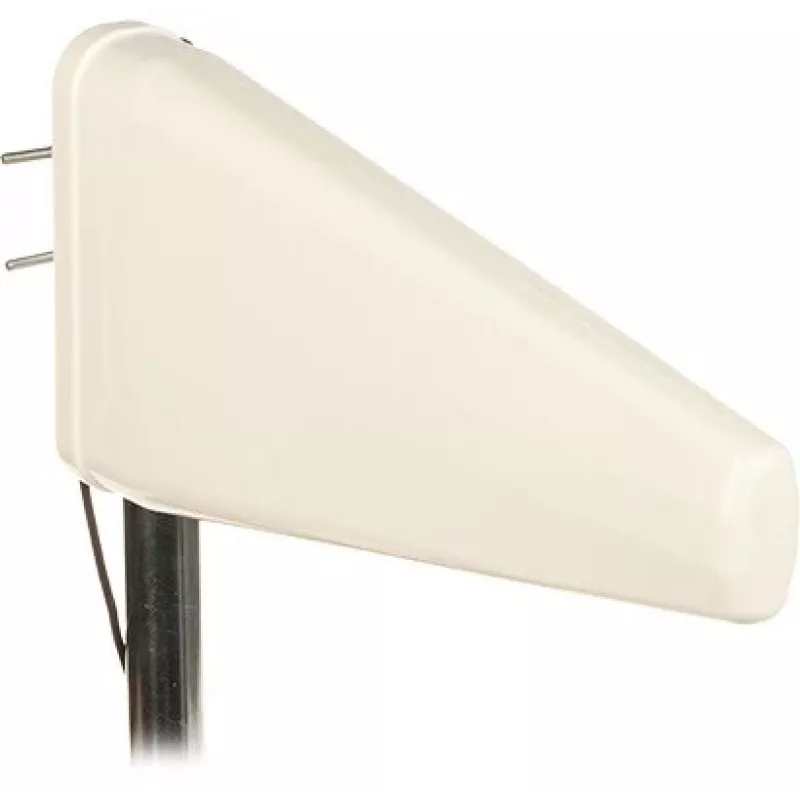

Logaritmická anténa DATA-LOG/LTE+SMA/10 - 10 dBi smerová anténa pre exteriér, 800-3000 MHz, konektor SMA samec, 10m kábel RG58

With a powerful 10 dBi directional gain and an ultra-wide 800–3000 MHz frequency range, this logarithmic antenna is engineered for reliable 2G, 3G, 4G LTE, GSM, UMTS, HSPA, and Wi-Fi 2.4 GHz connectivity in challenging outdoor environments.

Overview

The DATA-LOG/LTE+SMA/10 is a professional-grade logarithmic directional antenna designed for fixed installations where signal strength and stability are critical. It covers all major cellular bands from 800 MHz to 3000 MHz, making it a versatile solution for rural broadband, industrial IoT, and backup communication links. The antenna is built with UV-resistant plastic and aluminum, ensuring long-term durability in harsh weather conditions.

What stands out

• High 10 dBi directional gain for extended range and improved signal quality
• Wide frequency coverage: 800–3000 MHz, supporting 2G, 3G, 4G LTE, GSM, UMTS, HSPA, and Wi-Fi 2.4 GHz
• Linear polarization (vertical/horizontal) for flexible alignment with base stations
• Low VSWR (< 1.7) ensures minimal signal reflection and maximum power transfer
• Includes 10-meter RG58 coaxial cable with SMA male connector for easy installation
• Rugged outdoor design with aluminum and UV-resistant plastic housing
• Mast clamp included for simple mounting on poles or masts

Technical details

• Antenna type: Logarithmic directional
• Frequency range: 800 - 3000 MHz
• Max gain: 10 dBi
• Polarization: Linear (vertical/horizontal)
• Impedance: 50 Ohm
• VSWR: < 1.7
• Horizontal beamwidth: 52°
• Vertical beamwidth: 40°
• Connector: SMA male
• Cable length: 10 meters
• Cable type: RG58
• Supported technologies: 2G, 3G, 4G LTE, GSM, UMTS, HSPA, Wi-Fi (2.4 GHz)
• Mounting: Mast clamp (included)
• Outdoor use: Yes
• Material: Aluminum, UV-resistant plastic

Our verdict

The DATA-LOG/LTE+SMA/10 delivers exceptional performance for outdoor directional applications. Its broad frequency support and high gain make it a future-proof choice for LTE and Wi-Fi installations, while the included 10m cable and mast clamp simplify deployment. A reliable, weather-resistant antenna for professionals.
