Monolitná fréza s rohovým rádiusom 12,0 mm, R6,0, 4-zubá, 16/73 mm

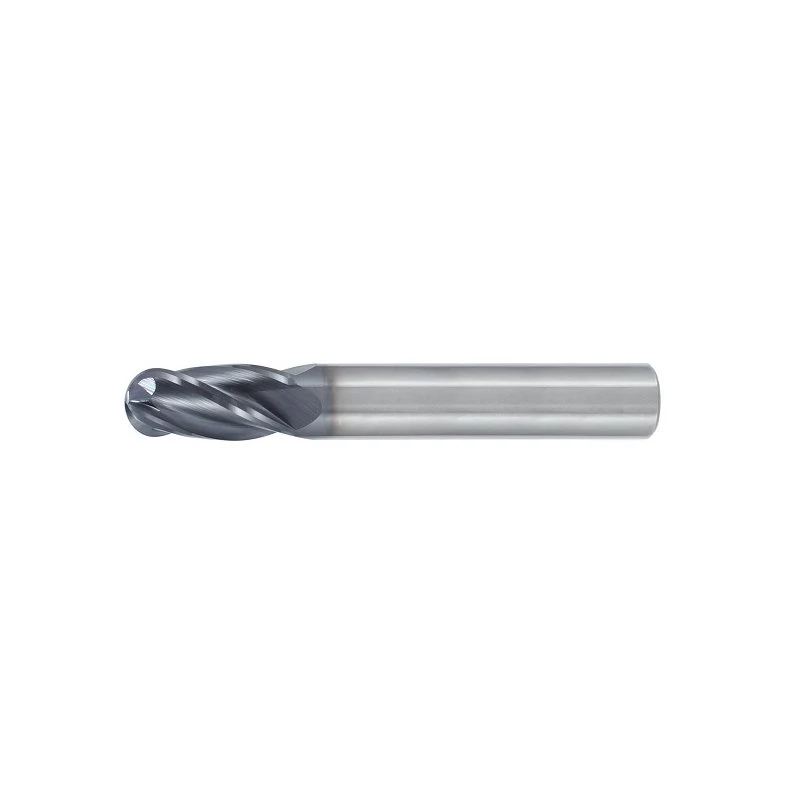

This end mill stands out with its solid tungsten carbide construction and a generous 6.0 mm corner radius, making it ideal for heavy-duty milling where edge strength and chip evacuation matter. The 4-flute design balances material removal rate and finish quality across steel, stainless steel, cast iron, and non-ferrous metals.

Highlights

• Cutting diameter: 12.0 mm
• Corner radius: 6.0 mm
• Number of flutes: 4
• Cutting length: 16 mm
• Overall length: 73 mm
• Shank diameter: 12.0 mm
• Solid tungsten carbide
• Right-hand cut with helical flutes
• CNC ground for precision

In daily use

The bull nose profile reduces chipping on sharp corners and extends tool life in roughing and semi-finishing operations. Suitable for general-purpose milling up to 55 HRC, it performs consistently in demanding workshop environments.

Full specifications

• Tool type: End mill
• Sub-type: Corner radius (bull nose)
• Material: Solid tungsten carbide
• Cutting diameter (D1): 12.0 mm
• Corner radius (R): 6.0 mm
• Number of flutes (Z): 4
• Cutting length (L1): 16 mm
• Overall length (L2): 73 mm
• Shank diameter (D2): 12.0 mm
• Shank type: Cylindrical (plain)
• Direction of cut: Right hand
• Flute geometry: Helical
• Application: General purpose milling
• Recommended materials: Steel, stainless steel, cast iron, non-ferrous metals
• Max hardness: Up to 55 HRC
• Manufacturing process: CNC ground

Final note

A reliable choice for machinists who need a robust corner radius end mill for a wide range of materials.
