Okrúhle závitové očko M16x1 DIN-22568 (6g) HSS 800

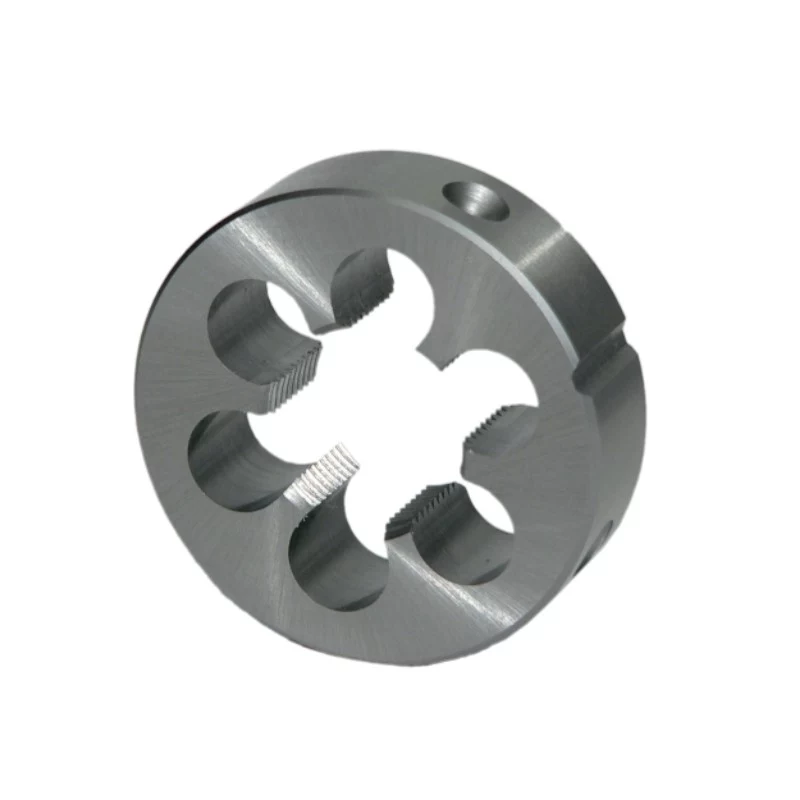

In a busy machine shop, a machinist needs to cut precise external threads on a 16 mm bolt with a fine 1 mm pitch. This round die from NO NAME, model FAN10163, is the tool for the job. It is made of high-speed steel (HSS) and ground to DIN 22568 standards with a 6g tolerance class, ensuring accurate and clean threads on steel, cast iron, and non-ferrous metals.

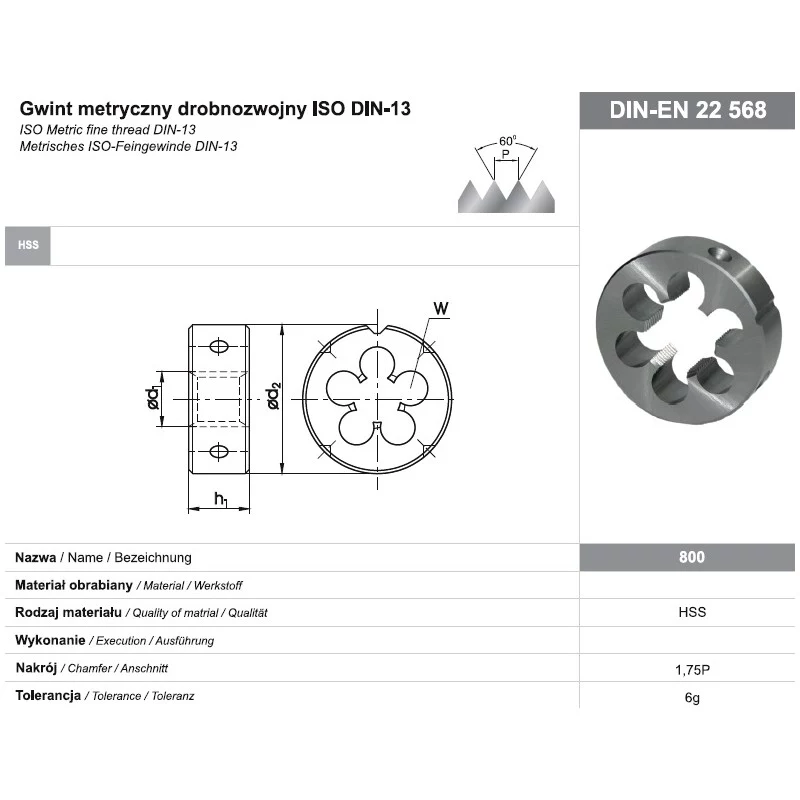

Key specifications

• Thread type: Metric fine
• Nominal thread diameter: 16 mm
• Thread pitch: 1 mm
• Thread standard: DIN 22568
• Thread tolerance class: 6g
• Material: High-speed steel (HSS)
• Die type: Round die
• Cutting direction: Right-hand
• Outer diameter: 45 mm
• Thickness: 14 mm
• Surface treatment: Bright finish
• Manufacturing process: Ground thread
• Country of origin: Poland

Why choose it

The ground threads and HSS construction provide durability and precision, making it suitable for general-purpose machining. The bright finish reduces friction and improves chip flow, while the 6g tolerance ensures compatibility with standard fasteners. It fits standard die stocks and machine holders, offering flexibility in manual or machine operations.

Ideal use cases

• Cutting external threads on bolts and rods in maintenance and repair workshops
• Producing custom fasteners in small-batch manufacturing
• Reworking damaged threads on steel and cast iron components
• Educational settings for teaching thread cutting techniques

Good to know

This die is designed for right-hand threads, the most common type. Use a suitable cutting fluid to extend tool life and achieve a better finish. The die's 45 mm outer diameter and 14 mm thickness are standard for many die stocks, ensuring easy setup. Always secure the workpiece properly before threading.
